JVC GR-SXM61A - How to Attach the Core Filter; Provided Accessories

EN5
•AC Power
Adapter/Charger
AA-V16ED
•Remote Control Unit
RM-V715U
(GR-SXM71A/SXM61A/
SXM75ED/SXM72ED/
SXM62ED only)
•Shoulder Strap
•DC Cord
•Lithium Battery
CR2025 (for
clock operation)
•Battery Pack
BN-V11U
•Audio/Video
(A/V) Cable
•Editing Cable
(GR-SXM91A/
SXM81A/SX51A/
SXM92ED/
SXM82ED/
SX52ED only)
•S-Video Cable

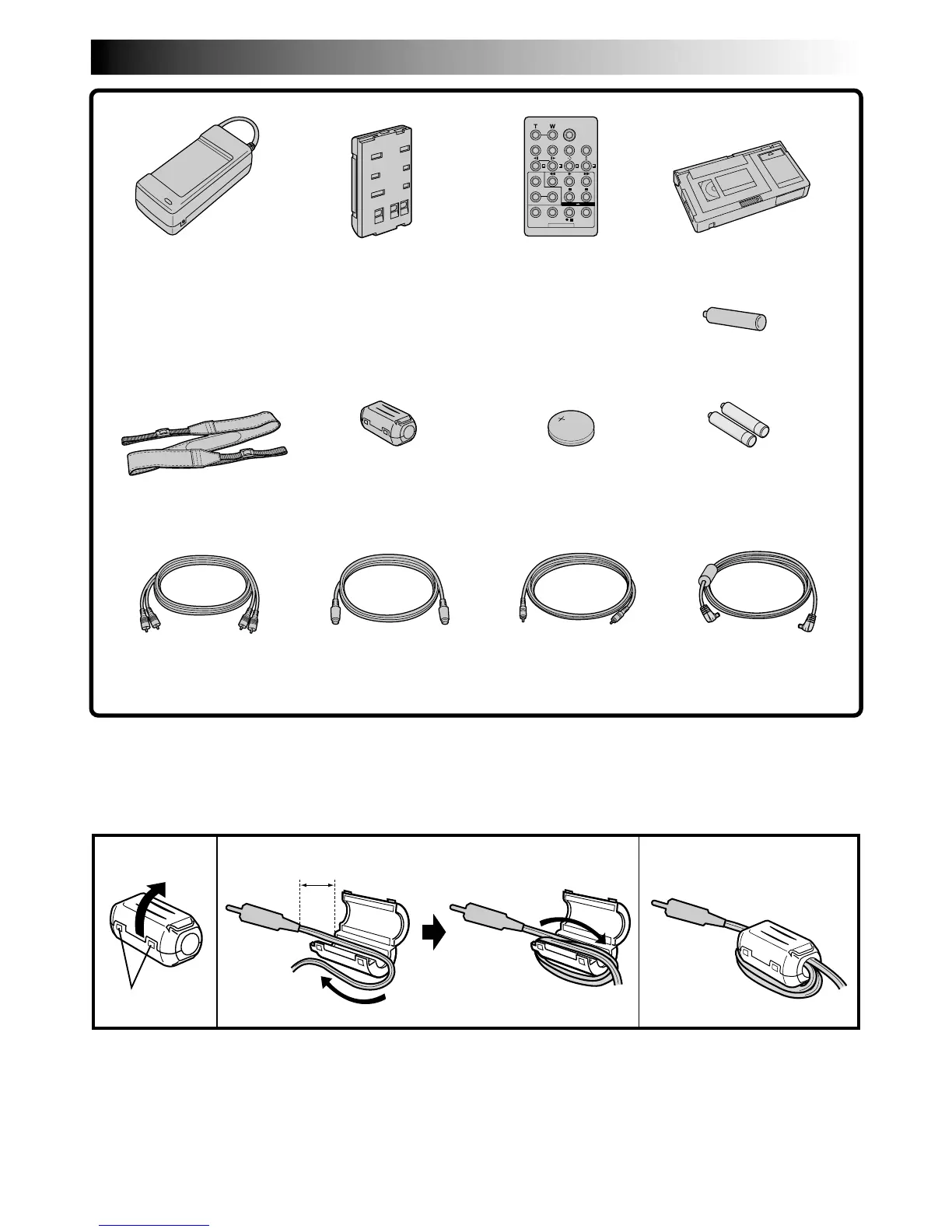

PROVIDED ACCESSORIES
12 3
How to Attach The Core Filter
Attach the provided Core Filters to the provided Audio/Video cable and S-video cable.
The Core Filter reduces interference.
1. Release the
stoppers on
both ends of
the Core Filter.
•Core Filter x 2 (for
provided Audio/Video
Cable and S-Video Cable)
2. Run the cable through the Core Filter, leaving
approx. 5 cm of cable between the cable plug and
the Core Filter. Wind the cable around the outside
of the Core Filter as shown in the illustration.
•Wind the cable so that it is not slack.
NOTE:
Take care not to damage the cable.
3. Close the Core Filter until it
clicks shut.
Connect the end of the
cable with the Core Filter to
the camcorder.
5 cm
Stopper
•Remote Control Unit
RM-V716U
(GR-SXM91A/
SXM81A/SX51A/
SXM92ED/SXM82ED/
SX52ED only)
•Cassette Adapter
C-P7U
•R6 (AA) Battery (for
Cassetter Adapter)
•R03 (AAA) Battery
x 2 (for Remote
Control Unit)
