(No.HC047<Rev.001>)1-13
4.2 Adjustment
The adjustment for this model is a special adjustment using a PC. Use the adjustment software (HM6xx_Adjust.exe) for adjustment.
(1) Preparation of SD card for adjustment
This camera can be changed to adjustment mode by using SD card for adjustment.
The SD card for adjustment has a file named PROJECT.ADJ in a root directory.
4.2.1 Installation of adjustment software
(1) Download adjustment software (HM6xx_Adjust.exe) from JS-NET, and store it in the arbitrary place in your PC.
4.2.2 The operation method
(1) Connect PC cable (QAM0099-002) to PC and a camera (AUX terminal).

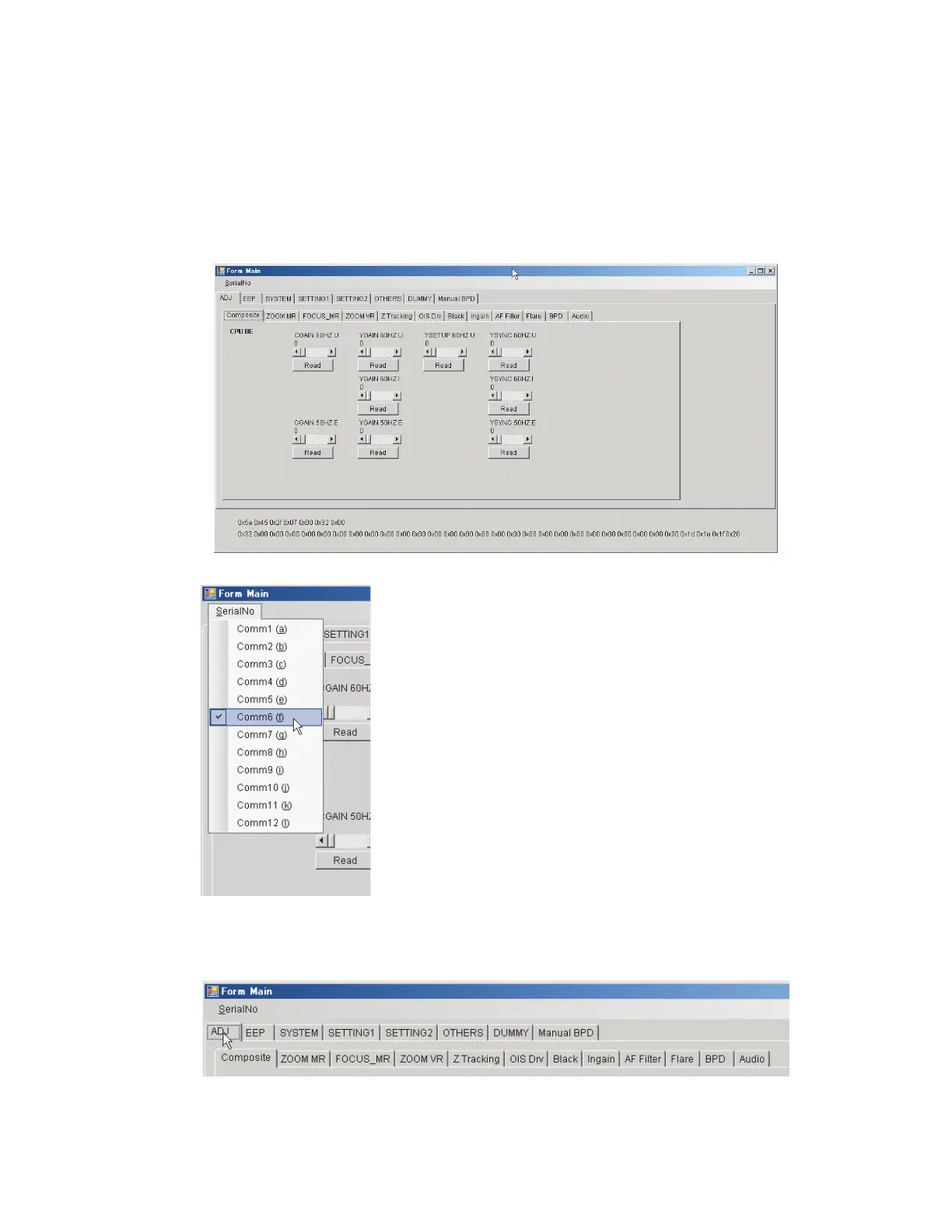

(2) The screen as shown below will be displayed when launching the adjustment software.
(3) Set up a serial port.
(4) Operate the adjustment software by switching tabs according to the contents of adjustment.
4.2.2.1 ADJ Tab
If ADJ tab is chosen, the tab according to the adjustment item will appear.
To Next Page
