1-16 (No.HC047<Rev.001>)

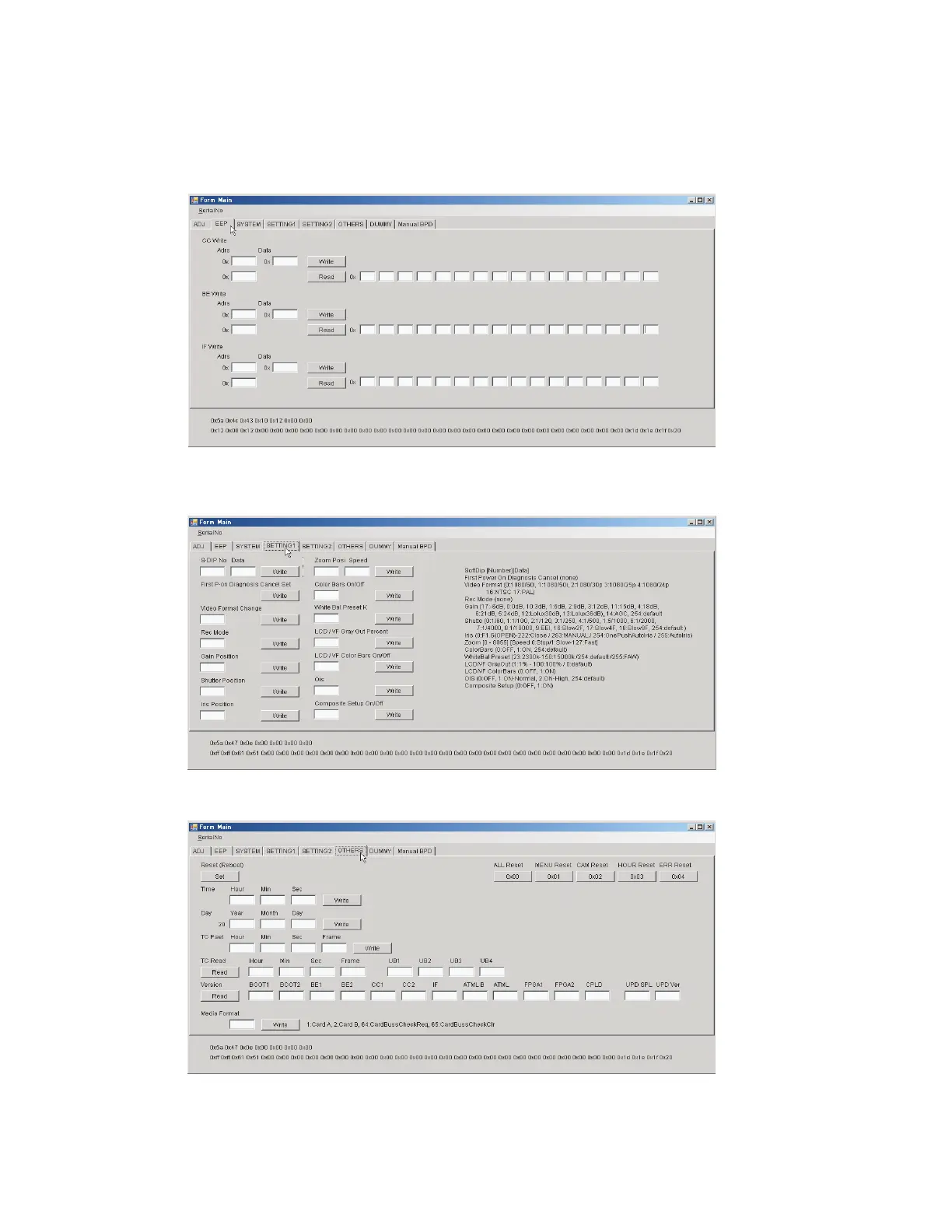

4.2.2.2 EEP Tab
It is used when reading and writing the data of EEPROM which each microcomputer (CC, BE, IF) has managed.
• For example, when reading the data of EEPROM which BE microcomputer has managed, input an address to read into the Adrs
colummn on the left side of the [READ] button of BE Write, and press the [READ] button.
• When writing data to EEPROM which BE microcomputer has managed, input an address to write into the Adrs column on the left
side of the [Write] button of BE Write, and the data to write into the Data column, and then press the [Write] button.
• Also for the EEPROM which CC microcomputer and IF microcomputer have managed, it is the same as that of BE microcomputer.
4.2.2.3 SETTING1 Tab and SETTING2 Tab
This is used for setting parameters to the camera. Input a parameter to set to the camera into a relevant column, respectively, and
then press the relevant [Write] button.
4.2.2.4 OTHERS Tab
Each reset is assigned here and it is frequently-used.
NOTE:
Other tabs are not used.
To Next Page
