JVC HR-XV1EK User Manual

12

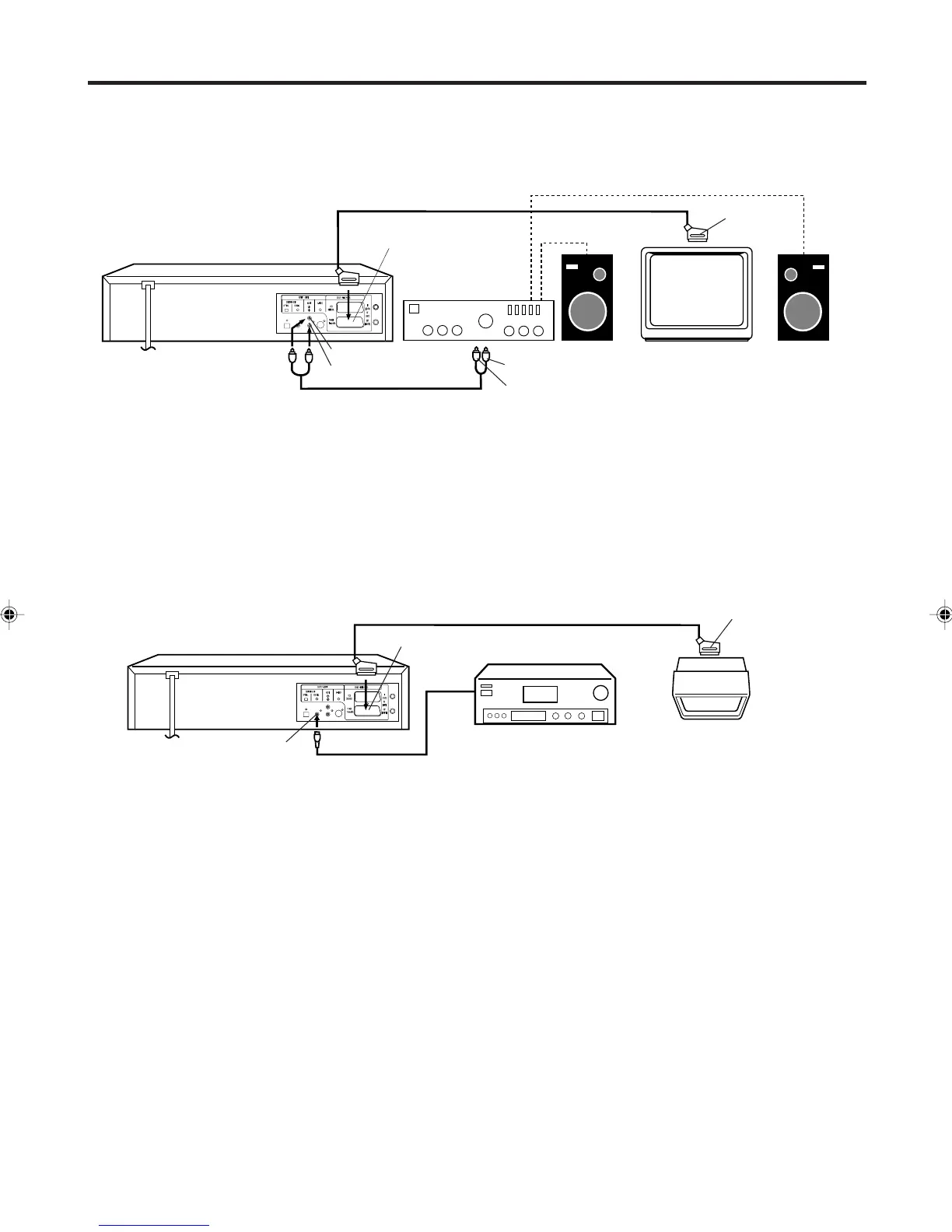

Connect to an AV Amplifier with built-in digital surround
If you are using an Amplifier with a built-in digital surround as follows, you can enjoy the various audio systems
such as Dolby Digital and DTS by using the Coaxial Digital Output.
Use this connection to connect an:
• AV amplifier with built-in *Dolby Digital decoder
• AV amplifier with built-in *DTS decoder
Playback connection
Connect to a Stereo Amplifier with Audio Output
Connecting the optical digital cable
You may connect to an AV Amplifier with an Optical digital cable (not supplied) instead of a Coaxial digital
cable.
When you connect the optical digital cable (not supplied), remove the dust protection cap from the rear panel.
When not using the optical digital cable, attach the dust protection cap to protect against dust.
NOTES:
• The OPTICAL, COAXIAL jacks are useful only for DVD section.
VHS signal is output only from the SCART-sockets, AUDIO L/R jacks and RF OUT jack.
• When you make the connections above, do not set DOLBY DIGITAL to DOLBY DIGITAL or DTS to ON on the AV
Amplifier. If you do, a loud noise will suddenly come out from the speakers, affecting your ears or causing the
speakers to be damaged.
• DTS audio will be output only from the COAXIAL output. To hear DTS audio, DTS-Decoder is necessary.
When playing DTS-encoded CDs, only noise will be heard from the speakers or analogue stereo outputs.
• Some DTS decoders which do not support DVD-DTS interface may not work properly with the unit.
Coaxial digital cable
(not supplied)
AV Amplifier with
built-in various
decoder as above
DVD/VCR
TV
If your DVD/VCR is connected to a stereo amplifier, the video soundtrack can output through the loudspeakers of
the stereo system.
To Audio (L) Input
To Audio (R) Input
TV
AUDIO Cord (not supplied)
Stereo Amplifier
DVD/VCR
Audio (R) Output
SCART-cable (not supplied)
Audio (L) Output
Coaxial digital
Audio Output
SCART-Socket
(for TV-RGB/Composite)
To SCART
input
SCART-cable (not supplied)
To SCART
input
SCART-Socket
(for TV-RGB/Composite)
2A77501B E(12-17) 5/30/02, 9:21 PM12

JVC HR-XV1EK Specifications

Power

AC voltage	230-240 V
frequency	50 Hz
operation power consumption	22 W
standby power consumption	5 W

Audio Characteristics

audio in jack level	500 mV, 50 kΩ
audio out jack level	500 mV, 1 kΩ
SCART-socket audio	500 mV, 50 kΩ
SCART-socket video	1 Vp-p, 75 Ω

DVD Specifications

DVD signal system	PAL
applicable disc types	DVD (12cm, 8cm), CD (12cm, 8cm)
DVD frequency response	4Hz - 22KHz
CD frequency response	4Hz - 20KHz

Weight and Dimensions

weight	4.5 kg
width	430 mm
height	99 mm
depth	310.5 mm
