Connections and Installation

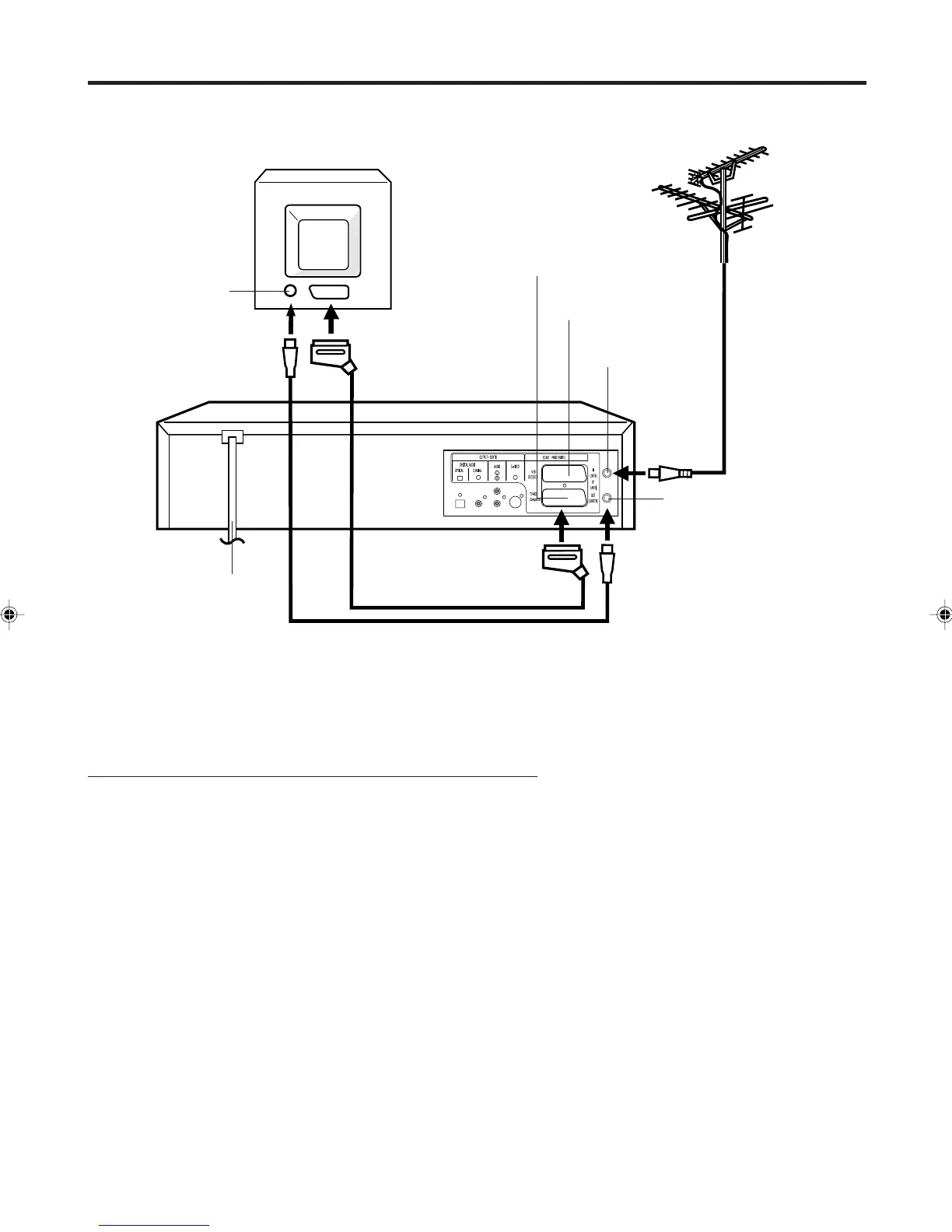

Connect your DVD/VCR to your home's aerial and to your TV-set as shown in the illustration.
When you have finished these connections you connect your DVD/VCR to the 230-240 V / 50 Hz mains.
TV
AC power cord 230V/50 Hz
DVD/VCR
Aerial-Input
To Scart socket
RF-Input (from
house antenna)
TV Scart Socket (A1)
RF-Output (to TV)
Aerial
Supplied Coaxial cable
In addition to the coaxial cable connection, connect also with scart cable. The picture and sound will be transmitted
best through the scart cable. In this case, the TV need not be tuned to the video recorder. The Video channel also
need not be tuned. The video recorder switch the television to video operation through the scart cable automatically.
The stereo-playback is possible in only case through a scart cable!
Connect a TV with the Scart socket
If your TV-set does not switch to video-playback operation automatically, please
turn your TV's video switch to VIDEO position manually.
Scart cable (not supplied)
VCR/DECODER
Scart Socket (A2)
2A77501B E(06-11) 5/30/02, 9:22 PM10

JVC HR-XV1EK Specifications

Power

AC voltage	230-240 V
frequency	50 Hz
operation power consumption	22 W
standby power consumption	5 W

Audio Characteristics

audio in jack level	500 mV, 50 kΩ
audio out jack level	500 mV, 1 kΩ
SCART-socket audio	500 mV, 50 kΩ
SCART-socket video	1 Vp-p, 75 Ω

DVD Specifications

DVD signal system	PAL
applicable disc types	DVD (12cm, 8cm), CD (12cm, 8cm)
DVD frequency response	4Hz - 22KHz
CD frequency response	4Hz - 20KHz

Weight and Dimensions

weight	4.5 kg
width	430 mm
height	99 mm
depth	310.5 mm
