2
CONNECTION
• DON’T use other amplifier to operate this speaker system ex-
cept for CA-HXZ10.
• Turn off power to the whole system before connecting the speak-
ers to the amplifier.
• The maximum power handling capacity of the SP-HXZ10 main
speaker is 75 W/Subwoofer is 165 W. Excessive input will re-
sult in abnormal noise and possible damage. In cases where
the signals described below are applied to the speakers, even
if the signals are below the maximum allowable input, they may
cause an overload and burn the wiring of the speakers. Be sure
to lower the amplifier volume beforehand.
1) Noise during FM tuning.
2) High level signals containing high frequency components pro-
duced by a tape deck in the fast forward mode.
3) Click noise produced when turning power of other compo-
nents on and off.
4) Click noise produced when connecting or disconnecting cords
with the power on.
5) Click noise produced when the cartridge is replaced with the
power on.
6) Click noise produced when operating amplifier switches.
7) Continuous high frequency oscillation or high pitch electroni-
cally produced musical instrument sound.
8) Howling when using a microphones.
CAUTION
Do not drag or push the speakers on the floor or table. Otherwise, the
four feet at the bottom side of each speaker may peel off or drop from
the speaker.
SPECIFICATIONS
Type : 3-way 4-speaker Bass-Reflex Type
Twin Hyper Power-Drive Subwoofer
and Front Twin Woofer
Speakers
Subwoofer : 16.0 cm (6-5/16 in.) cone × 1
Main woofer : 10.0 cm (3-15/16 in.) cone × 2
Tweeter : 5.0 cm (2 in.) cone × 1
Power Handling Capacity
Subwoofer : 165 W
Main Speaker : 75 W
Impedance
Subwoofer : 6 Ω
Main Speaker : 6 Ω
Frequency Range
Subwoofer : 30 Hz ~ 325 Hz
Main Speaker : 70 Hz ~ 32 000 Hz
Sound Pressure Level
Subwoofer : 78 dB/W·m
Main Speaker : 86 dB/W·m
Dimensions (W × H × D) : 220 mm × 432 mm × 357 mm
(8-11/16 in. × 17-1/16 in. × 14-1/16 in.)
Mass : 8.2 kg (18.1 lbs) each
Design and specifications subject to change without notice.

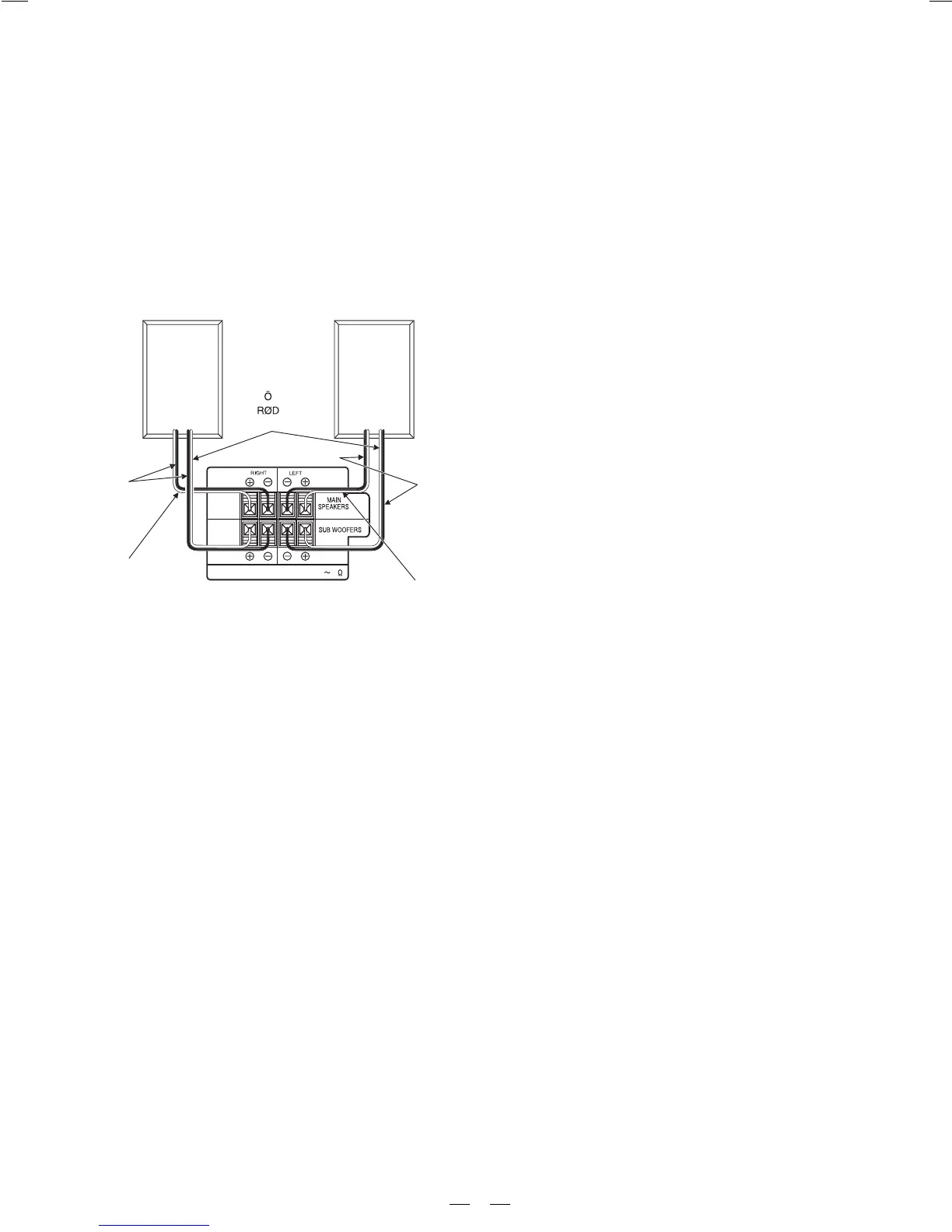

Connection
Anschluß
Raccordement
Aansluiting
Conexión
Collegamento
Ansluiting
Tilslutning
Liitäntä
Left speaker
Linker Lautsprecher
Enceinte de gauche
Linker spreker
Altavoz izquierdo
Altoparlante sinistro
Vänster högtalare
Venstre højttaler
Vasen kaiutin
Right speaker
Rechter Lautsprecher
Enceinte de droite
Rechter spreker
Altavoz derecho
Altoparlante destro
Höger högtalare
Højre højttaler
Oikea kaiutin
Amplifier output terminals
Ausgang des Verstärkers
Bornes de sortie de l’amplificaterur
Uitgangsaansluitengen van de versterker
Terminales de salida de amplificador
Terminali de uscita dell’amplifcator
Utgångar på förstärkaren
Forstærkerudgangsbøsninger
Vahvistimen ulostuloliittimet
CAUTION : SPEAKER IMPEDANCE 6 16
BL
UE
BLA
U
BLE
U
BLA
UW
AZ
UL
BL
U
BLA
BLA
S
ININE
N
BL
UE
BLA
U
BLE
U
BLA
UW
A
Z
UL
BL
U
BLA
BLA
S
ININE
N
BLA
CK
SC
HWAR
Z
N
O
IR
ZWART
NE
G
R
O
NER
O
S
VAR
T
SO
R
T
M
US
T
A
BLA
CK
SC
HWAR
Z
N
O
I
R
ZWART
NEGR
O
NER
O
S
VAR
T
SO
R
T
M
US
T
A
RED
R
OT
R
OUGE
R
OOD
R
OJO
R
OSSO
R
D
P
U
NAINE
N
SPHXZ10E 2/6/03, 11:23 AM2
