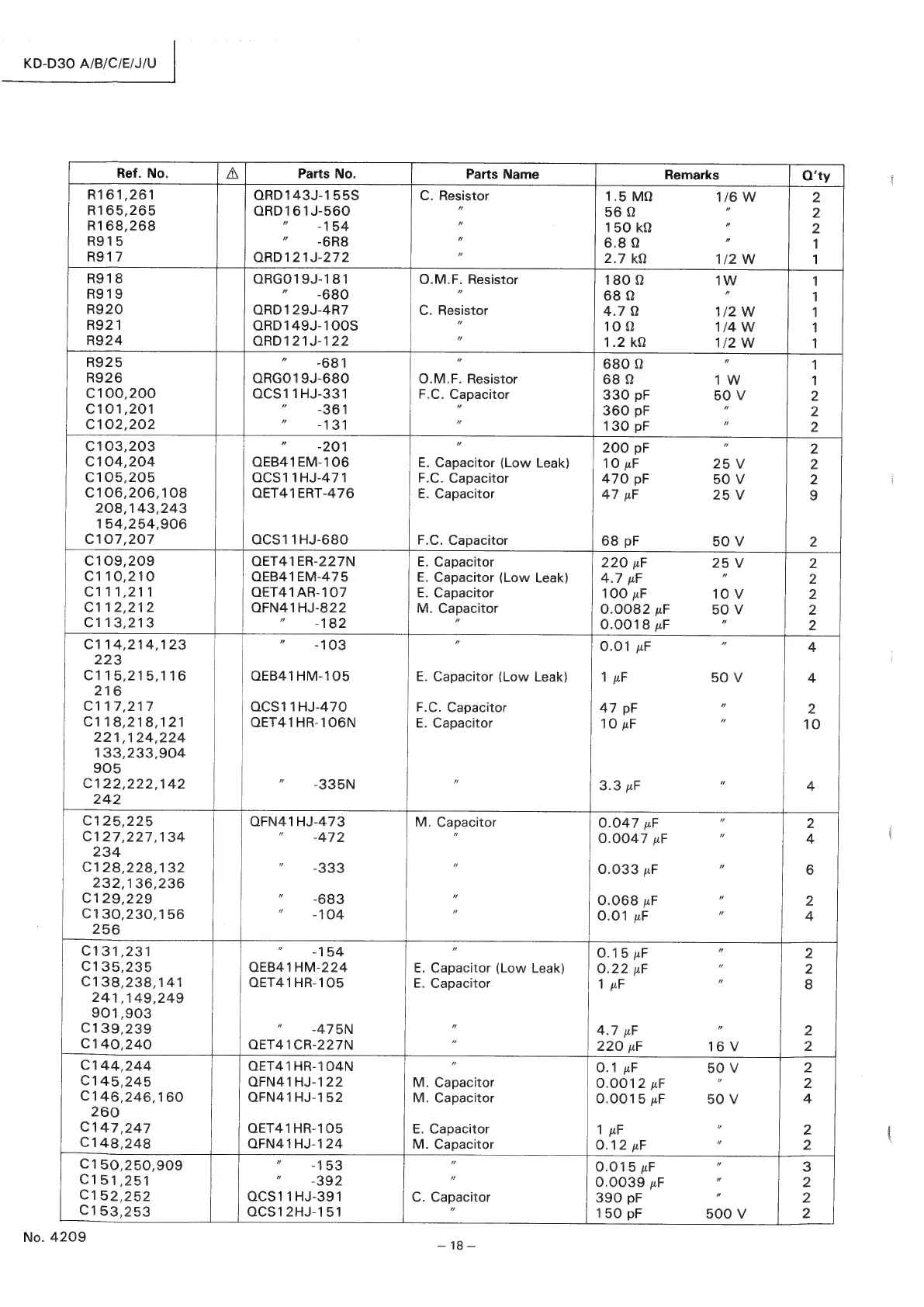

JVC KD-D30 - Page 18

KD-D30 A/B/C/E/J/U |
Ref. No. A Parts No. Parts Name | Remarks Q'ty
R161,261 QRD143J-155S C. Resistor 1.5 MQ 1/6 W 2
R165,265 QRD161J-560 “ 56 Q 7 2
R168,268 ? -154 " 150 kQ if 2
R915 a -6R8 * 6.80 . 1
R917 QRD121J-272 . 2.7 kQ 1/2 W 1
R918 QRGO19J-181 O.M.F. Resistor 180 0 1W 1
R919 Z -680 a 68 0 : 1
R920 ORD129J-4R7 C. Resistor 4.7 1/2 W 1
R921 QRD149J-100S ‘i 102 1/4 W 1
R924 QRD121J-122 6 1.2 kQ 1/2 W 1
R925 i -681 ” 680 2 ag 1
R926 QRGO19J-680 O.M.F. Resistor 68 Q 1W 1
C100,200 QCS11HJ-331 F.C. Capacitor 330 pF 50 V 2
C101,201 7 -361 - 360 pF 2
C102,202 2 -131 - 130 pF M 2
C103,203 7.201 * 200 pF " ita
C104,204 QEB41EM-106 E. Capacitor (Low Leak) 10 uF 25V 2
C105,205 QCS11HJ-471 F.C. Capacitor 470 pF 50 V 2
C106,206,108 QET41ERT-476 E. Capacitor 47 uF 25 V 9
208,143,243
154,254,906
C107,207 QCS11HJ-680 F.C. Capacitor 68 pF 50 V 2
C109,209 QET41ER-227N E. Capacitor 220 pF 25 V 2
C110,210 QEB41EM-475 E. Capacitor (Low Leak) 4.7 uF d 2
C111,211 QET41AR-107 E. Capacitor 100 pF 10 V 2
C112,212 QFN41HJ-822 M. Capacitor 0.0082 uF 50 V 2
C113,213 4 -182 % 0.0018 uF if 2
C114,214,123 -103 4 0.01 pwF a 4
223
C115,215,116 QEB41HM-105 E. Capacitor (Low Leak) 1 pF 50 V 4
216
C117,217 QCS11HJ-470 F.C. Capacitor 47 pF 7 2
C118,218,121 QET41HR-106N E. Capacitor 10 pF we 10
221,124,224
133,233,904
905
C122,222,142 # -335N - 3.3 pF Y 4
242
C125,225 QFN41HJ-473 M. Capacitor 0.047 uF * 2
C127,227,134 " -472 in 0.0047 uF a 4
234
C128,228,132 x -333 ie 0.033 uF “ 6
232,136,236
C129,229 “ -683 i 0.068 nF u 2
C130,230,156 y -104 7 0.01 uF is 4
256
7] a ae ae a
C131,231 -154 ss 0.15 uF m 2
C135,235 QEB41HM-224 E. Capacitor (Low Leak) 0.22 uF % 2
C138,238,141 QET41HR-105 E. Capacitor 1 pF é 8
241,149,249
901,903
C139,239 “> -475N ‘ 4.7 uF 2
C140,240 QET41CR-227N D 220 pF 16V 2
—_+ el.
C144,244 QET41HR-104N . 0.1 pF 50 V 2
C145,245 OQFN41HJ-122 M. Capacitor 0.0012 uF is 2
C146,246,160 QFN41HJ-152 M. Capacitor 0.0015 pF 50 V 4
260
C147,247 QET41HR-105 E. Capacitor 1 pF i 2
C148,248 OFN41HJ-124 M. Capacitor 0.12 uF 7 2
C150,250,909 . -153 - 0.015 pF a 3
C151,251 i -392 ic 0.0039 pF " 2
C152,252 QCS11HJ-391 C. Capacitor 390 pF 2
C153,253 QCS12HJ-151 e 150 pF 500 V 2
No. 4209
=18-
