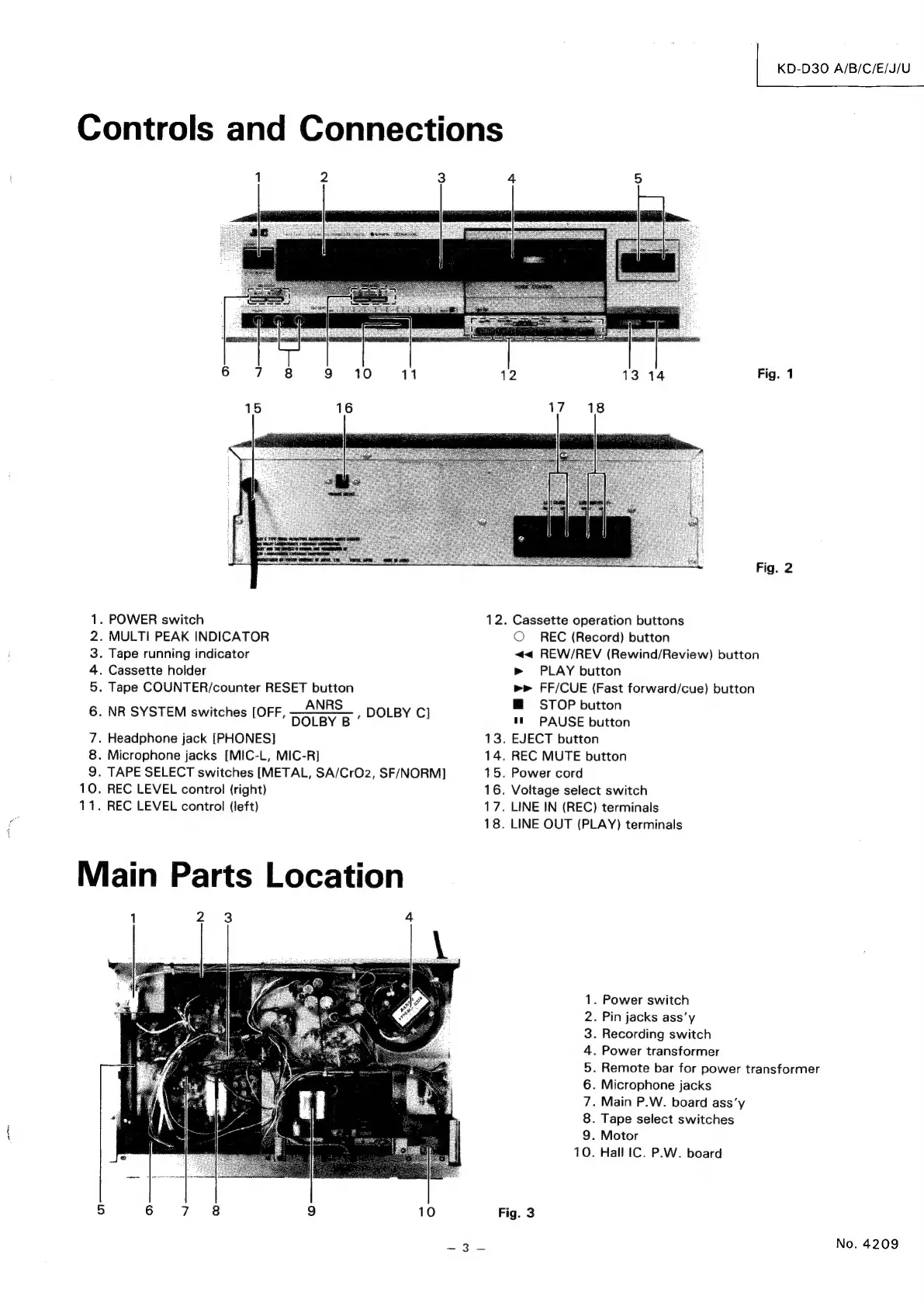

Controls and Connections
. POWER switch
. MULTI PEAK INDICATOR
. Tape running indicator
. Cassette holder
. Tape COUNTER/counter RESET button
: ANRS
. NR SYSTEM switches [OFF, DOLBY B’ DOLBY C]
. Headphone jack [PHONES]
. Microphone jacks [MIC-L, MIC-R]
. TAPE SELECT switches [METAL, SA/Cr02, SF/NORM]
. REC LEVEL control (right)
. REC LEVEL control (left)
=-~OOMON MD AARWNH= -
Main Parts Location
5 6 7 8 9 10
12.
13.
14.
15
16.
17.
18.
KD-D30 A/B/C/E/J/U
Fig. 1
Fig. 2
Cassette operation buttons
© REC (Record) button
<< REW/REV (Rewind/Review) button
> PLAY button
pe FF/CUE (Fast forward/cue) button
@ STOP button
1!) ~=PAUSE button
EJECT button
REC MUTE button
. Power cord
Voltage select switch
LINE IN (REC) terminals
LINE OUT (PLAY) terminals
. Power switch
. Pin jacks ass’y
. Recording switch
. Power transformer
. Remote bar for power transformer
. Microphone jacks
. Main P.W. board ass’y
. Tape select switches
. Motor
. Hall IC. P.W. board
OWOMANOORWND =
—
Fig. 3
No. 4209
