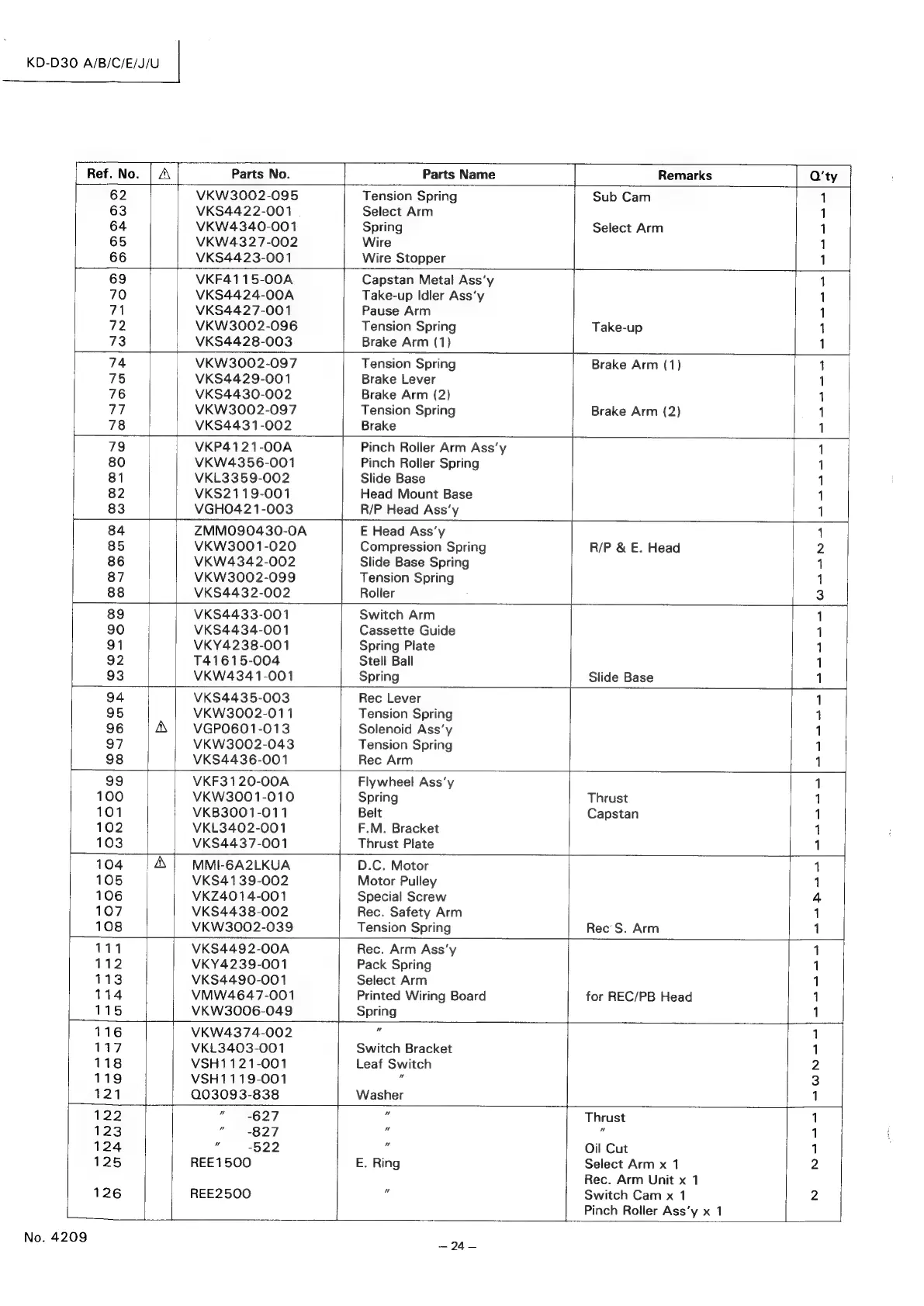

KD-D30 apc |
| Ref. No. | A | Parts No. Parts Name | Remarks Q'ty
62 VKW3002-095 Tension Spring Sub Cam 1
63 VKS4422-001 Select Arm 1
64 VKW4340-001 Spring Select Arm 1
65 VKW4327-002 Wire 1
66 VKS4423-001 Wire Stopper 1
69 VKF4115-O0A Capstan Metal Ass’y 1
70 VKS4424-00A Take-up Idler Ass‘y 1
71 VKS4427-001 Pause Arm 1
72 VKW3002-096 Tension Spring Take-up 1
73 VKS4428-003 Brake Arm (1) 1
74 VKW3002-097 Tension Spring Brake Arm (1) 1
75 VKS4429-001 Brake Lever 1
76 VKS4430-002 Brake Arm (2) 1
77 VKW3002-097 Tension Spring Brake Arm (2) 1
78 VKS4431-002 Brake = 1
79 VKP4121-00A Pinch Roller Arm Ass‘y 1
80 VKW4356-001 Pinch Roller Spring 1
81 VKL3359-002 Slide Base 1
82 VKS2119-001 Head Mount Base 1
83 VGH0421-003 |_R/P Head Ass’‘y 1
84 ZMM090430-0A E Head Ass’y 1
85 VKW3001-020 Compression Spring R/P & E. Head 2
86 VKW4342-002 Slide Base Spring 1
87 VKW3002-099 Tension Spring 1
88 VKS4432-002 Roller 3
89 VKS4433-001 Switch Arm 1
90 VKS4434-001 Cassette Guide 1
91 VKY4238-001 Spring Plate 1
92 T41615-004 Stell Ball 1
93 VKW4341-001 Spring Slide Base 1
94 VKS4435-003 Rec Lever 1
95 VKW3002-011 Tension Spring 1
96 A | VGP0601-013 Solenoid Ass’y 1
97 VKW3002-043 Tension Spring 1
98 VKS4436-001 Rec Arm 1
99 VKF3120-00A Flywheel Ass‘y 1
100 VKW3001-010 Spring Thrust 1
101 VKB3001-011 Belt Capstan 1
102 VKL3402-001 F.M. Bracket 1
103 VKS4437-001 Thrust Plate 1
104. |A| MMI-6A2LKUA D.C. Motor 1
105 VKS4139-002 Motor Pulley 1
106 VKZ4014-001 Special Screw 4
107 VKS4438-002 Rec. Safety Arm 1
108 VKW3002-039 Tension Spring Rec S. Arm 1
111 VKS4492-00A Rec. Arm Ass’y 1
112 VKY4239-001 Pack Spring 1
113 VKS4490-001 Select Arm 1
114 VMW4647-001 Printed Wiring Board for REC/PB Head 1
115 VKW3006-049 Spring 1
116 VKW4374-002 ‘i 1
117 VKL3403-001 Switch Bracket 1
118 VSH1121-001 Leaf Switch 2
119 VSH1119-001 ‘ 3
121 Q03093-838 Washer 1
122 “—— -627 ‘ Thrust 1
123 "827 ‘ ‘ 1
124 " -522 a Oil Cut 1
125 REE1500 E. Ring Select Arm x 1 2
Rec. Arm Unit x 1
126 REE2500 a Switch Cam x 1 2
Pinch Roller Ass’y x 1
No. 4209
—24—
