KD-D30 A/B/C/E/J/U
g
Packin

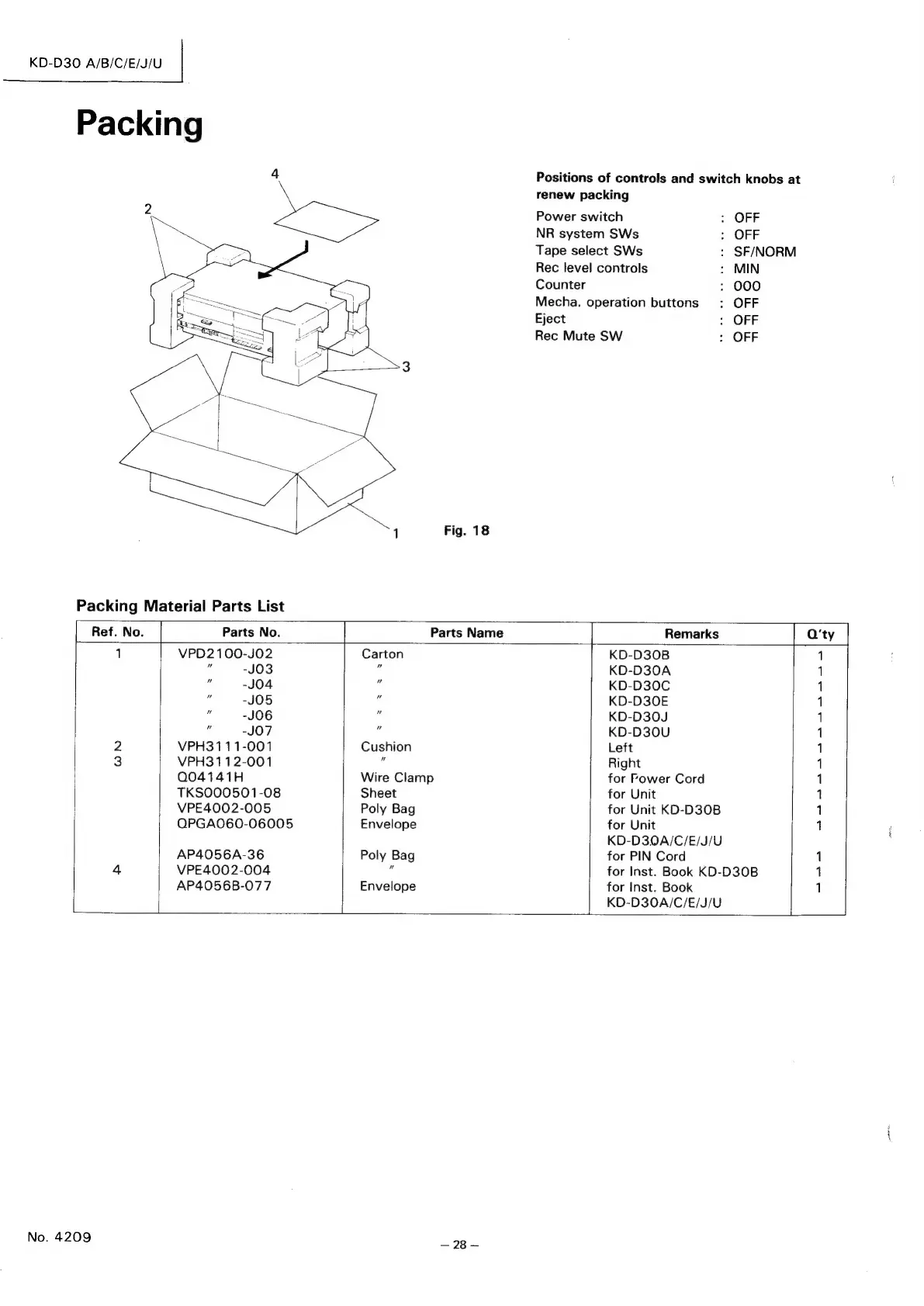

Packing Material Parts List
Fig. 18
Positions of controls and switch knobs at
renew packing
Power switch
NR system SWs
Tape select SWs
Rec level controls
Counter
Mecha. operation buttons
Eject
Rec Mute SW
: OFF
: OFF
: SF/NORM
: MIN
: 000
: OFF
: OFF
: OFF
1 VPD2100-JO2 Carton KD-D30B 1
" -JO3 . KD-D30A 1
. -JO04 ms KD-D30C 1
: -JO5 7 KD-D30E 1
Fe -JO6 ” KD-D30J 1
" -JO7 i KD-D30U 1
2 VPH3111-001 Cushion Left 1
3 VPH3112-001 id Right 1
Q04141H Wire Clamp for Power Cord 1
TKSOO0501-08 Sheet for Unit 1
VPE4002-005 Poly Bag for Unit KD-D30B 1
QPGAO060-06005 Envelope for Unit 1
KD-D30A/C/E/J/U
AP4056A-36 Poly Bag for PIN Cord 1
4 VPE4002-004 Z for Inst. Book KD-D30B 1
AP4056B-077 Envelope for Inst. Book 1
KD-D30A/C/E/J/U
