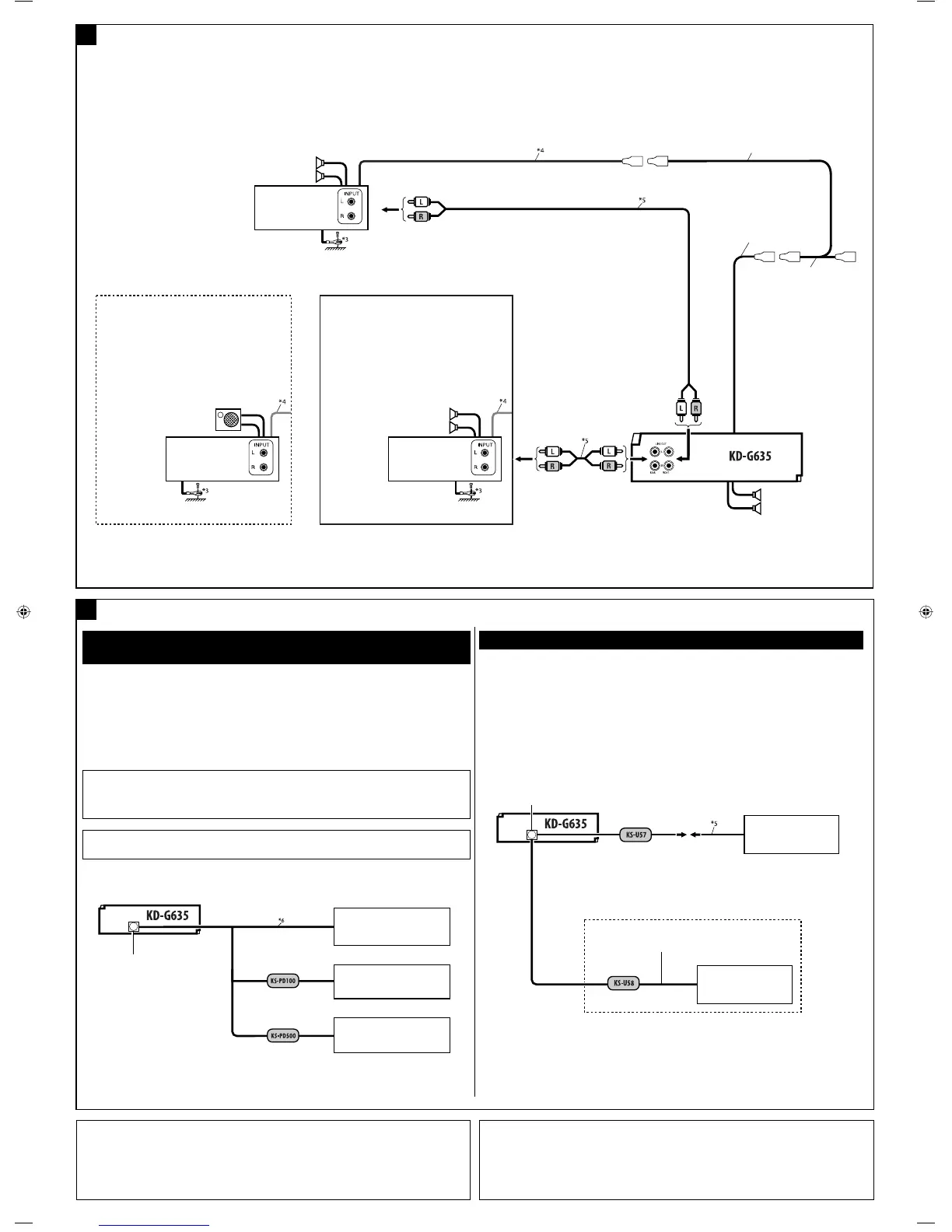

Connecting the external amplifiers or subwoofer / 連接至外部功率放大器或超重低音揚聲器
You can connect amplifiers to upgrade your car stereo system.
• Connect the remote lead (blue with white stripe) to the remote lead of the other equipment so that it
can be controlled through this unit.
• Disconnect the speakers from this unit, connect them to the amplifier. Leave the speaker
leads of this unit unused.
*
3
將地線與金屬車體或者汽車底盤緊密連接，連接處應該沒有被油漆覆蓋（如果已塗上油漆，在連接
電線前，將油漆刮去）。如果不這樣做，可能會損壞本機。
*
4
遙控導線。
*
5
信號電纜（不隨本機提供）。
*
6
您的 CD 換碟器配備的連接電纜。
您可以連接功率放大器以提昇尊車的音響系統。
•
將遙控導線（藍色帶有白色條紋）和其他裝置上的遙控導線連接起來，以便可以通過本機進行
遙控。
• 將揚聲器和本機斷開，再接上功率放大器。將本機的揚聲器接線放置不用。
B
Rear speakers
後置揚聲器
Remote lead (Blue with white stripe)
遙控導線（藍色帶有白色條紋）
To the remote lead of other
equipment or automatic antenna
if any
連接至其他裝置上的遙控導線或
自動天線（若有裝設）
Y-connector (not supplied for this unit)
Y-型連接導線（不隨本機提供）
Front speakers
前置揚聲器
Subwoofer
超重低音揚聲器
Set “L/O MODE” to “REAR” (See page 13 of the
INSTRUCTIONS.)
將“L/O MODE”設定為“ REAR ”（參閱
使用說明書的第 13 頁。）
JVC Amplifier
JVC 功率放大器
Set “L/O MODE” to “WOOFER” (See page 13 of
the INSTRUCTIONS.)
將“L/O MODE”設定為“WOOFER”
（參閱使用說明書的第 13 頁。）
JVC Amplifier
JVC 功率放大器
Other external component / 其他外部組件
• Set “EXT IN” for the external input setting (See page 13 of the INSTRUCTIONS.)
/ 將外部輸入設
定設至“EXT IN”（外部輸入）（參閱使用說明書的第 13 頁。）
CAUTION / 小心：
Before connecting the external components, make sure that the unit is turned off.
連接外部組件之前，先確定本機已經關閉。
External component
外部組件
3.5 mm stereo mini plug
3.5 mm 立體聲迷你插座
CD changer jack
CD 換碟器插座
JVC CD changer, Apple iPod, or JVC D. player / JVC CD 換碟器、Apple iPod
或 JVC D. player
You can connect these components as illustrated below.
The iPod or D. player can be connected using an interface adapter (not supplied)—KS-PD100 (for iPod)
or KS-PD500 (for D. player).
Connecting the external components / 連接其他外部組件
C
• Set “CHANGER” for the external input setting (See page 13 of the INSTRUCTIONS.) / 將外部輸入
設定設至“CHANGER”（換碟器）（參閱使用說明書的第
13 頁。）
Apple iPod
Apple iPod
JVC D. player
JVC D. player
JVC CD changer
JVC CD 換碟器
CD changer jack
CD 換碟器插座
External component
外部組件
您可以從下圖所示連接這些組件。
您可以使用界面適配器（不配備） — KS-PD100（iPod 用）或 KS-PD500（D. player 用）連接
iPod 或 D. player。
or
或
*
3
Firmly attach the ground wire to the metallic body or to the chassis of the car—to the place uncoated with
paint (if coated with paint, remove the paint before attaching the wire). Failure to do so may cause damage to
the unit.
*
4
Remote lead.
*
5
Signal cord (not supplied for this unit).
*
6
Connecting cord supplied for your CD changer.
or / 或
or / 或
JVC Amplifier
JVC 功率放大器
Front speakers
前置揚聲器
or / 或
You can also connect an external component through this unit using Line Input Adapter,
KS-U57 (not supplied) or AUX Input Adapter, KS-U58 (not supplied).
您也可以使用線性輸入適配器 KS-U57（不配備）或 AUX 輸入適配器 KS-U58（不
配備）通過本機連接至外部組件。
iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.
iPod 是 Apple Computer, Inc.（蘋果電腦公司）在美國及其他國家注冊的商標。
