(No.49843)1-5
SECTION 2
Disassembly method
2.1 Main body

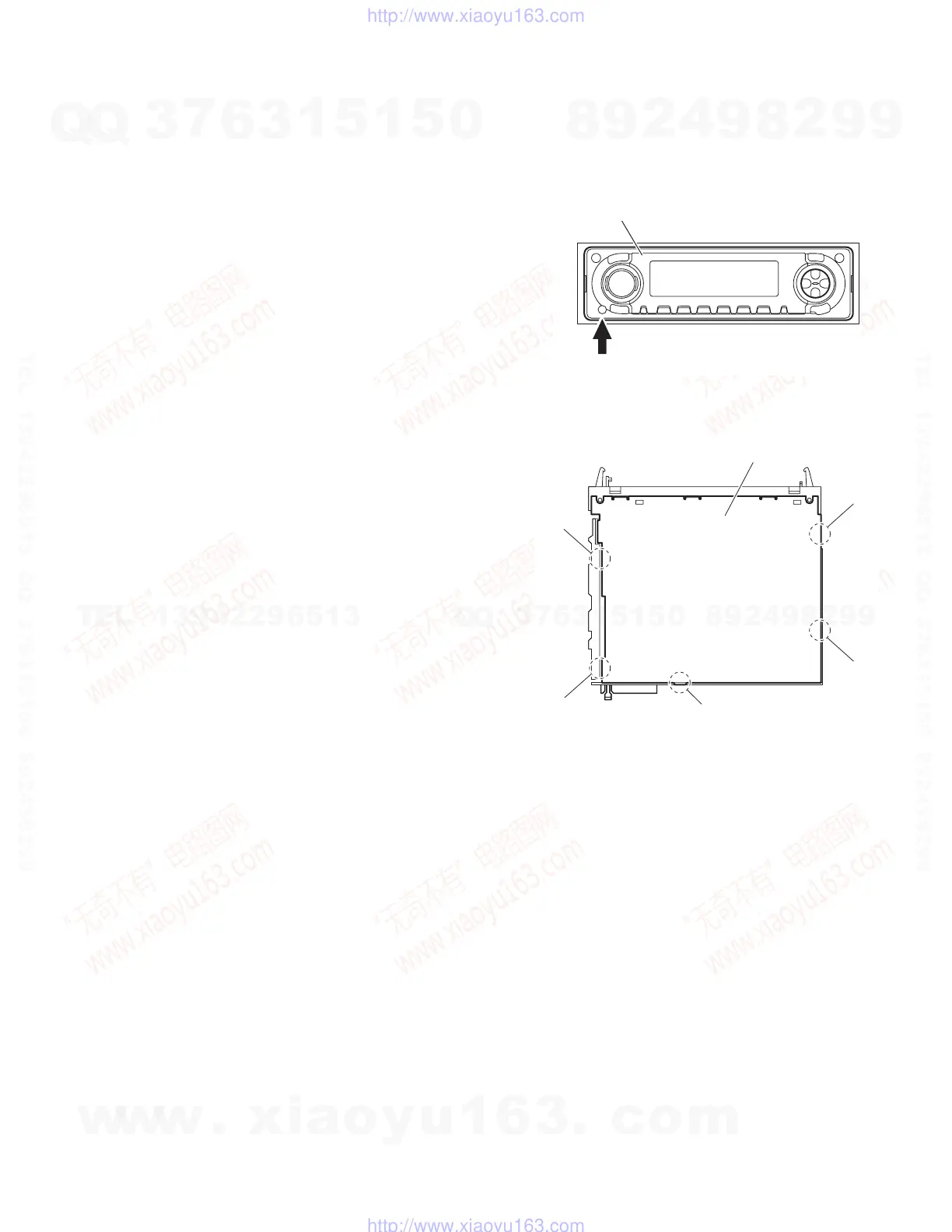

2.1.1 Removing the front panel assembly
(See Fig.1)
(1) Push the detach button in the lower left part of the front
panel assembly and remove the front panel assembly.
Fig.1
2.1.2 Removing the bottom cover
(See Fig.2)
• Prior to performing the following procedure, remove the front
panel assembly as required.
(1) Turn over the main body and release the two joints a, two
joints b and joint c.
CAUTION:
Do not damage the main board when releasing the joints
using a screwdriver.
Fig.2
Front panel assembly
Detach button
Bottom cover
Joint a
Joint b
Joint a
Joint b
Joint c
