2.1.7 Removing the mecha control board
(See Fig.8)
• Prior to performing the following procedures, remove the front
panel assembly, bottom cover, front chassis assembly, heat
sink, rear bracket and main board.
(1) Remove the five screws J attaching the mecha control
board.
(2) Disconnect the card wire from the mecha connector.
(3) Move the mecha control board in the direction of the arrow
to release it from the joint f.

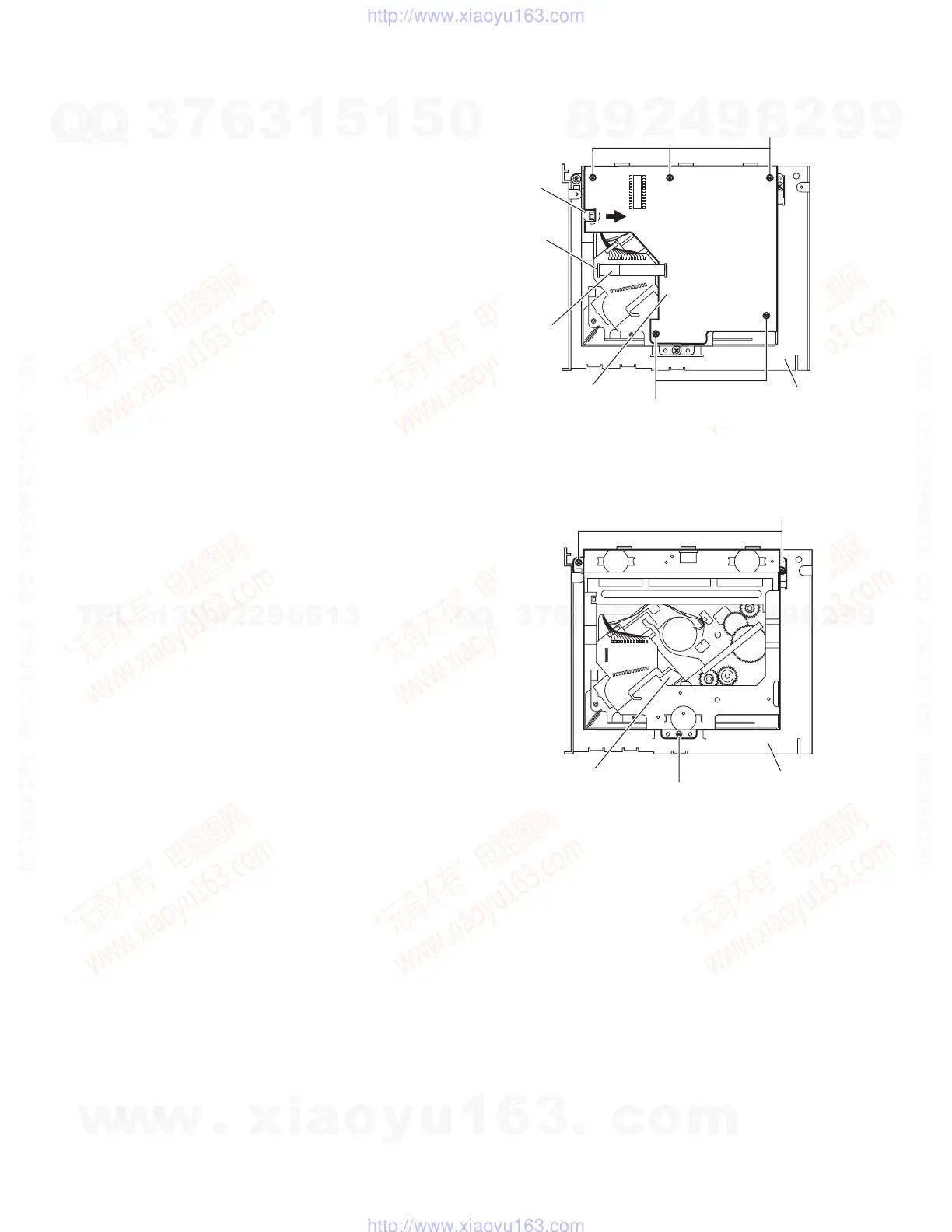

Fig.8
2.1.8 Removing the CD mechanism assembly
(See Fig.9)
• Prior to performing the following procedure, remove the front
panel assembly, bottom cover, front chassis assembly, heat
sink, rear bracket, main board and mecha control board.
(1) Remove the three screws K attaching the CD mechanism
assembly to the top chassis.
Fig.9
J
J
Mecha control board
Mecha
connector
Card wire
Top chassis
Joint f
K
K
CD mechanism assembly
Top chassis
