(No.49843)1-7
2.1.5 Removing the rear bracket
(See Fig.6)
• Prior to performing the following procedures, remove the bot-
tom cover.
(1) Remove the three screws E, screw F and three screws G
on the back side of the main body.
(2) Remove the rear bracket.
REFERENCE:
During reassembly, before fixing the rear bracket onto
the main body, insert the SUB WOOFER cable and
STEERING REMOTE cable into the slots.

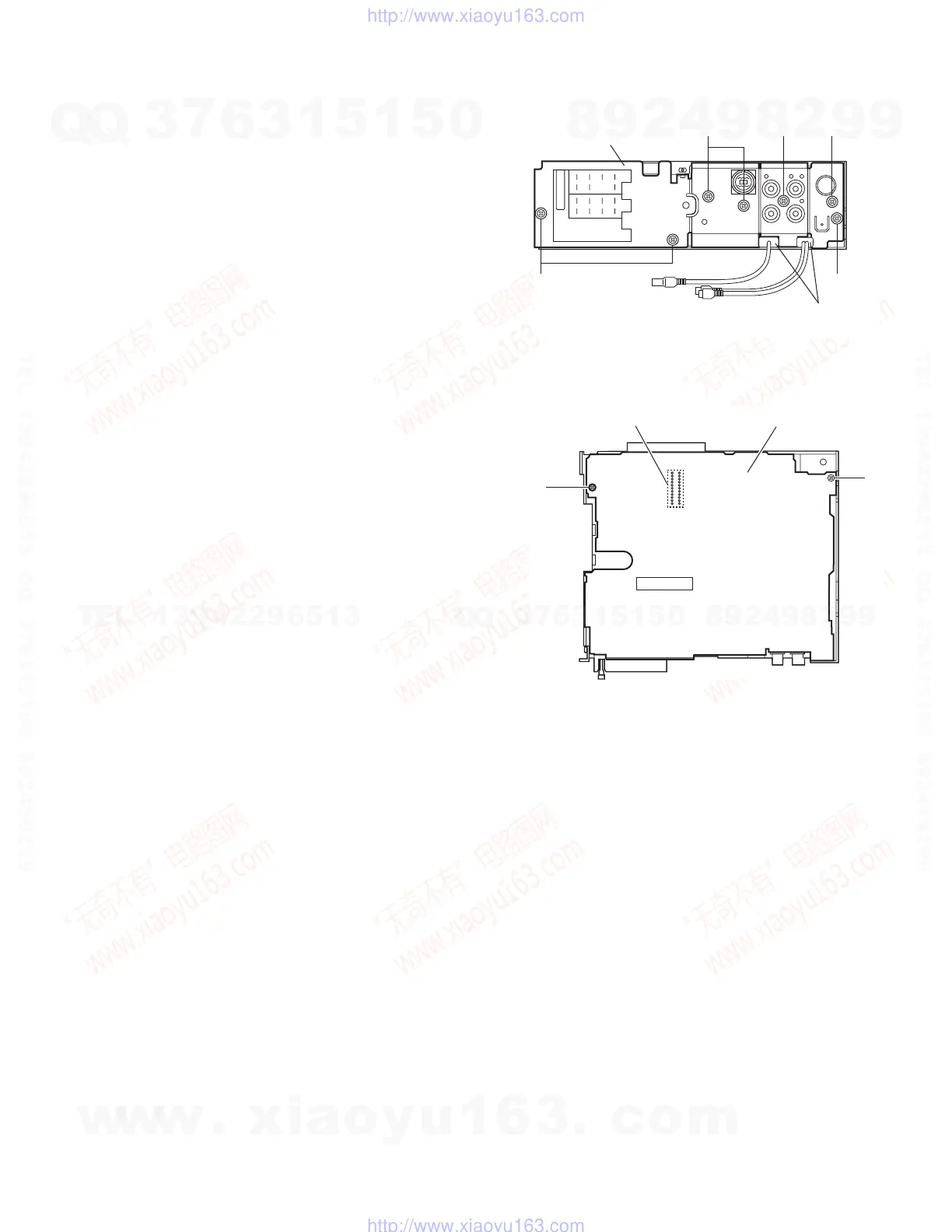

Fig.6
2.1.6 Removing the main board
(See Fig.7)
• Prior to performing the following procedures, remove the front
panel assembly, bottom cover, front chassis assembly, heat
sink and rear bracket.
(1) Remove the two screws H attaching the main board.
(2) Disconnect the connector CN601 and remove the main
board in an upward direction.
Fig.7
G
EE
F
Rear bracket
G
Insert Subwoofer and steering
cables into the slots.
Main board
H
H
CN601
