1-6 (No.49843)

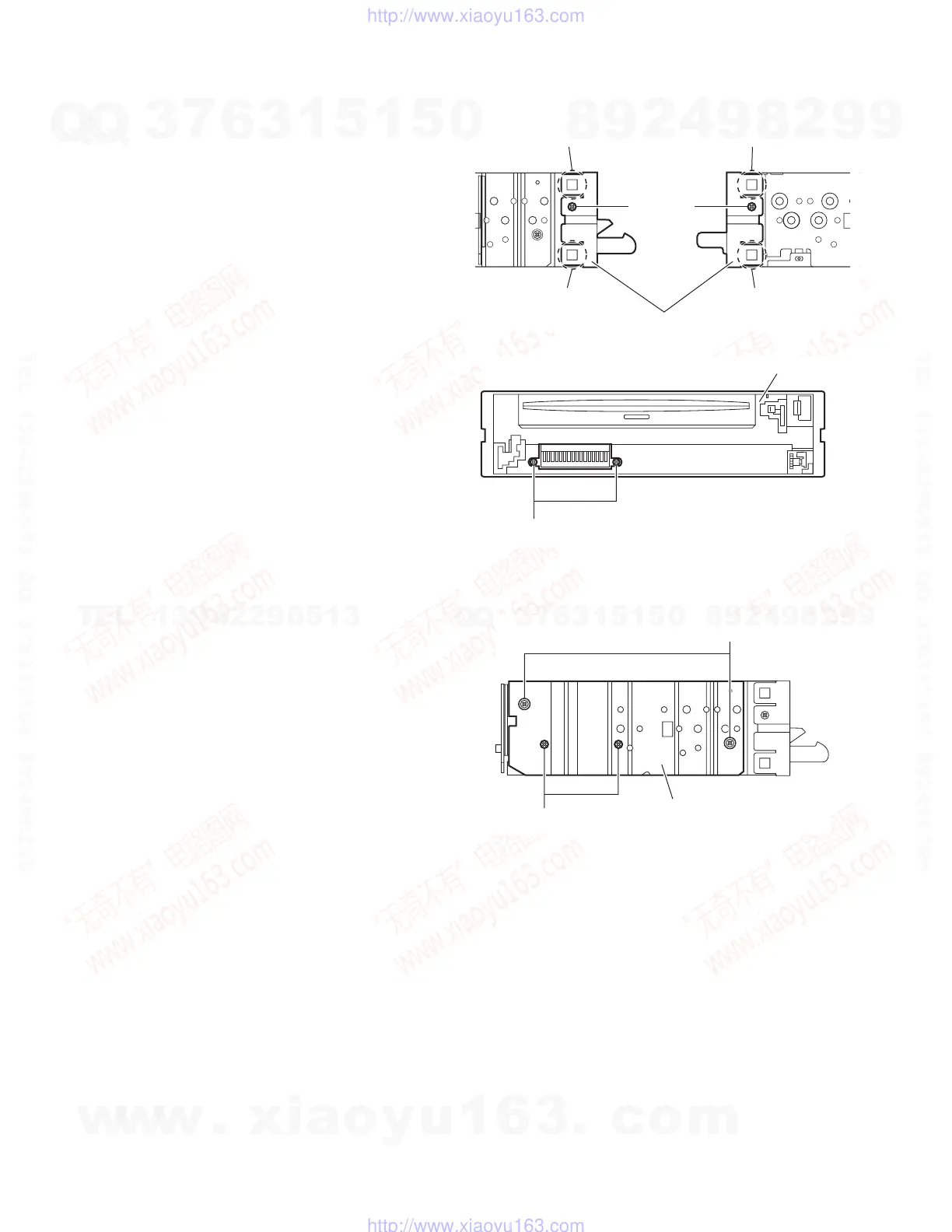

2.1.3 Removing the front chassis assembly
(See Figs.3 and 4)
• Prior to performing the following procedures, remove the front
panel assembly and bottom cover.
(1) Remove the two screws A on the both sides of the main
body. (See Fig.3.)
(2) Remove the two screws B on the front side of the main
body. (See Fig.4.)
(3) Release the two joints d and two joints e on the both sides
of the main body. (See Fig.3.)
Fig.3
Fig.4
2.1.4 Removing the heat sink
(See Fig.5)
• Prior to performing the following procedure, remove the front
panel assembly as required.
(1) Remove the two screws C and two screws D on the left
side of the main body.
Fig.5
Joint d
Joint d
Front chassis assembly
A
Joint e
Joint e
A
B
Front chassis assembly
C
D
Heat sink
