44
ENGLISH

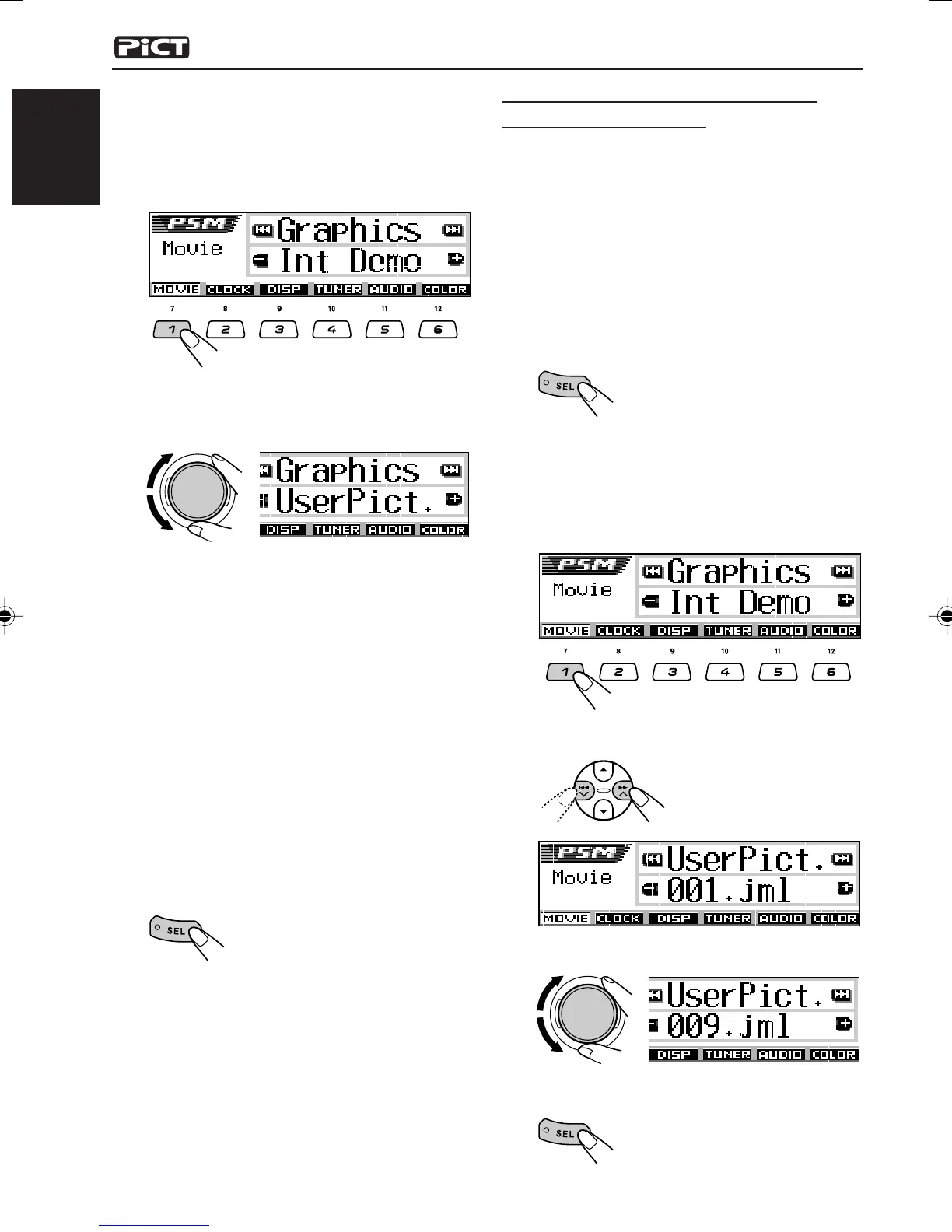

Selecting a still image for graphic
display—User Picture
You cannot select “UserPict. as a PSM item in
the following cases:
If no image is stored in “Picture,” or
“UserPict. is not selected for the “Graphics”
setting (see the left column).
1
Press and hold SEL (select) for more
than 2 seconds so that one of the
PSM items appears on the display.
(PSM: see pages 46 and 47.)
2
Press number button 1 to select
“MOVIE”—Movie category of the
PSM settings.
The “Graphics” setting screen appears on
the display.
3
Select “UserPict.
File name of the
current selected
image also appears.
4
Select a file you want.
5
Finish the setting.
2
Press number button 1 to select
“MOVIE”—Movie category of the
PSM settings.
The “Graphics” setting screen appears on
the display.
3
Select “UserMovie, “UserSlide, or
“UserPict.
UserMovie: Your edited animation stored
in “Movie” is activated as your
graphic screen.
UserSlide: Your edited still images stored
in “Picture” are activated and
shown in sequence as your
graphic screen.
UserPict.: One of your edited still image
stored in “Picture” is activated
as your graphic screen.
Select one of the stored
images (see the next
column).
4
Finish the setting.
To cancel all graphic displays, select “Off” in
step
3
.
Note:
For the “Graphics” setting, you can also select “Int
Demo,” “All Demo,” and “ImageLink.
See pages 8 and 48 for “Int Demo” and “All Demo.
See pages 25 and 48 for “ImageLink.
Ex.: When you select
“UserPict.
EN37-44_KD-LH401[E_EX]f.p65 30/1/04, 5:23 PM44

Table of Contents

Other manuals for JVC KD-Lh401

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the JVC KD-Lh401 and is the answer not in the manual?

JVC KD-Lh401 Specifications

Audio Amplifier Specifications IconAudio Amplifier Specifications
maximum power output front50 W per channel
maximum power output rear50 W per channel
continuous power output RMS front19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion
continuous power output RMS rear19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion
load impedance4 Ω (4 Ω to 8 Ω allowance)
equalizer control range frequencies60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 12 kHz
equalizer control range level±10 dB
frequency response40 Hz to 20 000 Hz
signal-to-noise ratio70 dB
line-out level/impedance5.0 V/20 kΩ load (full scale)
output impedance1 kΩ
CD Player Specifications IconCD Player Specifications
operating voltageDC 14.4 V (11 V to 16 V allowance)
allowable operating temperature0°C to +40°C
dimensions (W × H × D) installation size182 mm × 52 mm × 159 mm
dimensions (W × H × D) panel size188 mm × 58 mm × 12 mm
mass1.6 kg (excluding accessories)
frequency response5 Hz to 20 000 Hz
dynamic range96 dB
signal-to-noise ratio98 dB
max. bit rate mp3320 Kbps
max. bit rate wma192 Kbps
Tuner Specifications IconTuner Specifications
frequency range FM87.5 MHz to 108.0 MHz
frequency range AM (MW)522 kHz to 1 620 kHz
frequency range AM (LW)144 kHz to 279 kHz
usable sensitivity FM11.3 dBf (1.0 µV/75 Ω)
50 dB quieting sensitivity FM16.3 dBf (1.8 µV/75 Ω)
alternate channel selectivity FM (400 kHz)65 dB
frequency response FM40 Hz to 15 000 Hz
stereo separation FM30 dB
capture ratio FM1.5 dB
sensitivity MW20 µV
selectivity MW35 dB
sensitivity LW50 µV
