JVC KD-Lh401 Service Manual

45
ENGLISH

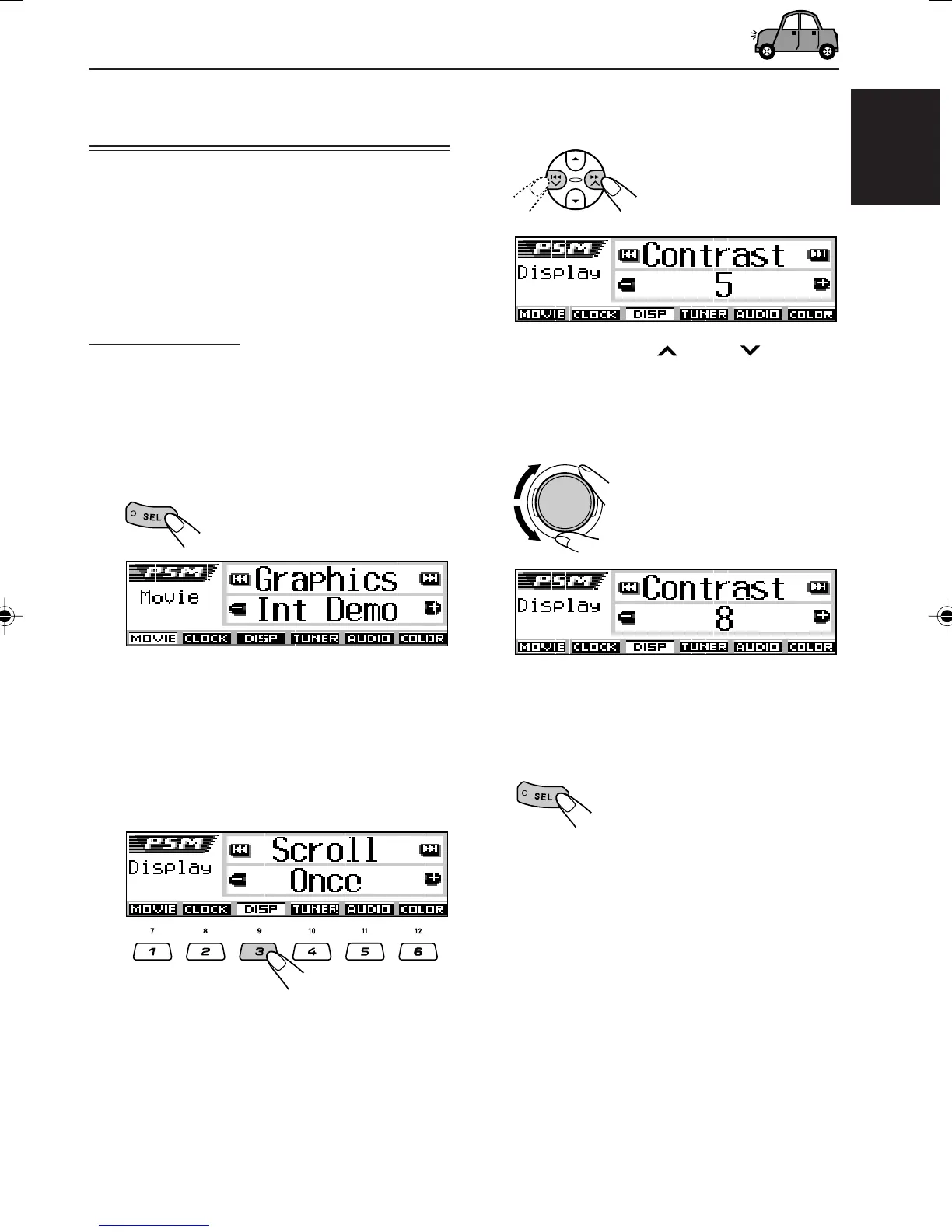

Changing the general settings
(PSM)
You can change the items listed on the table on
pages 46 and 47 by using the PSM (Preferred
Setting Mode) control.
• The PSM items are grouped into six
categories—MOVIE, CLOCK, DISP (display),
TUNER, AUDIO, and COLOR.
Basic Procedure
Ex.: To change “Contrast”
1 Press and hold SEL (select) for more
than 2 seconds so that one of the
PSM items appears on the display.
(See pages 46 and 47.)
The next-step-operation
buttons start flashing.
2 Press number button (in this
example, 3) to select one of the PSM
categories.
The first-listed item in the selected category
appears.
3 Select the PSM item you want to
adjust.
• By pressing ¢ or 4
repeatedly, you can also move to another
category.
4 Adjust the PSM item selected.
5 Repeat steps 2 to 4 to adjust the
other PSM items if necessary.
6 Finish the setting.
OTHER MAIN FUNCTIONS
Ex.: If you have selected “Graphics”
previously
EN45-55_KD-LH401[E_EX]f.p65 30/1/04, 5:22 PM45

JVC KD-Lh401 Specifications

Audio Amplifier Specifications

maximum power output front	50 W per channel
maximum power output rear	50 W per channel
continuous power output RMS front	19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion
continuous power output RMS rear	19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion
load impedance	4 Ω (4 Ω to 8 Ω allowance)
equalizer control range frequencies	60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 12 kHz
equalizer control range level	±10 dB
frequency response	40 Hz to 20 000 Hz
signal-to-noise ratio	70 dB
line-out level/impedance	5.0 V/20 kΩ load (full scale)
output impedance	1 kΩ

CD Player Specifications

operating voltage	DC 14.4 V (11 V to 16 V allowance)
allowable operating temperature	0°C to +40°C
dimensions (W × H × D) installation size	182 mm × 52 mm × 159 mm
dimensions (W × H × D) panel size	188 mm × 58 mm × 12 mm
mass	1.6 kg (excluding accessories)
frequency response	5 Hz to 20 000 Hz
dynamic range	96 dB
signal-to-noise ratio	98 dB
max. bit rate mp3	320 Kbps
max. bit rate wma	192 Kbps

Tuner Specifications

frequency range FM	87.5 MHz to 108.0 MHz
frequency range AM (MW)	522 kHz to 1 620 kHz
frequency range AM (LW)	144 kHz to 279 kHz
usable sensitivity FM	11.3 dBf (1.0 µV/75 Ω)
50 dB quieting sensitivity FM	16.3 dBf (1.8 µV/75 Ω)
alternate channel selectivity FM (400 kHz)	65 dB
frequency response FM	40 Hz to 15 000 Hz
stereo separation FM	30 dB
capture ratio FM	1.5 dB
sensitivity MW	20 µV
selectivity MW	35 dB
sensitivity LW	50 µV
