56
ENGLISH
CD CHANGER OPERATIONS

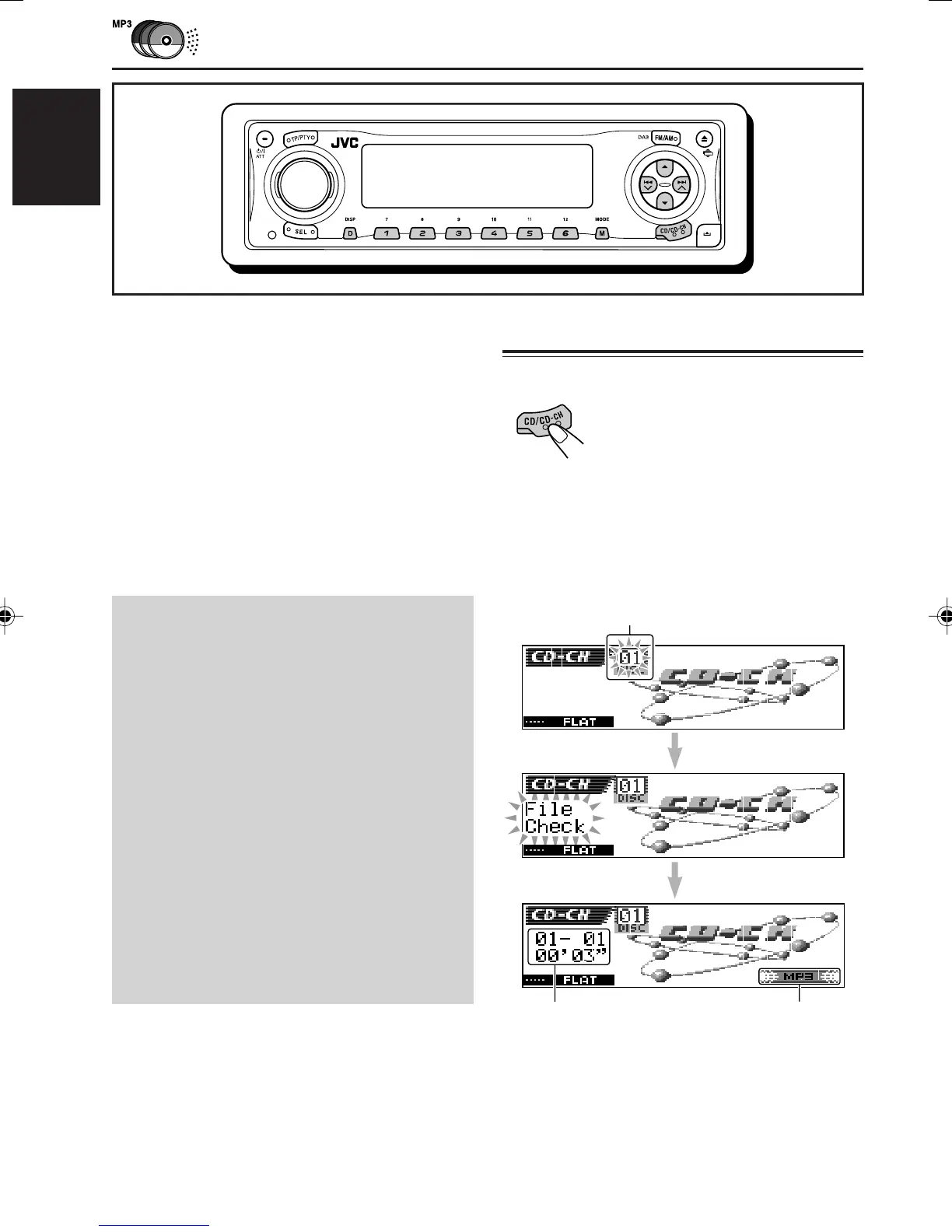

Playing discs
Select the CD changer (CD-CH).
Each time you press the button,
the source changes as described
on page 7.
When you select a source, the
power automatically comes on.
When the current disc is an MP3 disc:
Playback starts from the first folder of the
current disc once file check is completed.
We recommend that you use the JVC MP3-
compatible CD changer with your unit.
By using this CD changer, you can play back
your original CD-Rs (Recordable) and CD-RWs
(Rewritable) recorded either in audio CD format
or in MP3 format.
You can also connect other CH-X series
CD changers (except CH-X99 and CH-X100).
However, they are not compatible with MP3
discs, so you cannot play back MP3 discs.
You cannot use the KD-MK series CD
changers with this unit.
Before operating your CD changer:
Refer also to the Instructions supplied with
your CD changer.
If no discs are in the magazine of the CD
changer or the discs are inserted upside
down, “No Disc” will flash on the display. If
this happens, remove the magazine and set
the discs correctly.
If no magazine is loaded in the CD changer,
“No Magazine” flashes on the display. If this
happens, insert the magazine in the CD
changer.
If “Reset 01” – “Reset 08” flashes on the
display, something is wrong with the
connection between this unit and the CD
changer. If this happens, check the
connection and make sure the cords are
connected firmly. Then, press the reset
button of the CD changer.
Note:
You cannot control and play any WMA disc on the CD
changer.
MP3 indicator
Selected disc number
Current folder/track and
elapsed playing time
EN56-61_KD-LH401[E_EX]f.p65 30/1/04, 5:23 PM56
