JVC KD-Lh401 Service Manual

61
ENGLISH
Mode
Active
Plays repeatedly
indicator
Repeat (track The current (or
Track repeat) specified) track.
indicator lights up.
Repeat (folder All tracks of the
Folder* repeat) indicator current (or
lights up. specified) folder of
the current disc.
Repeat (disc All tracks of
Disc repeat) indicator the current (or
lights up. specified) disc.
* “Repeat Folder” is only applicable for MP3 disc.
Note:
MP3 indicator also lights up if the current playing
disc is an MP3 disc.
To cancel repeat play, select “Repeat Off” by
pressing number button 2 repeatedly or press
number button 4 in step 2.

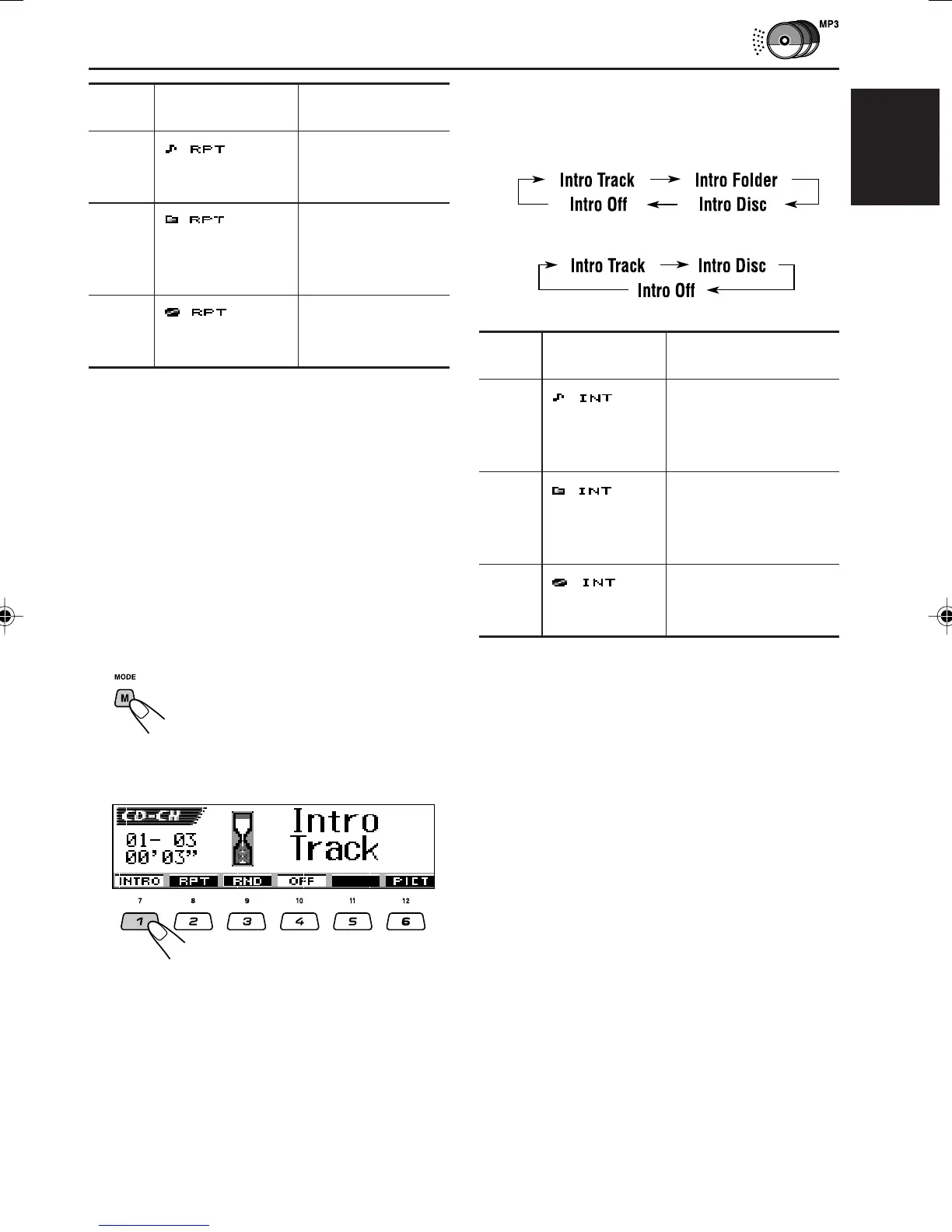

To play back only intros (Intro Scan)
1 Press M MODE during play.
“Mode” appears on the display.
The next-step-operation buttons
start flashing.
2 Press number button 1 repeatedly while
“Mode” is still on the display.
Each time you press the button, intro scan
mode changes as follows:
For MP3 discs:
For CDs:
Mode
Active Plays the beginnings
indicator (15 seconds) of
Intro All tracks of the
Track (track intro) current disc.
indicator
lights up.
Intro The first track of every
Folder* (folder intro) folder of the current
indicator lights disc.
up.
Intro (disc The first tracks of
Disc intro) indicator the inserted discs.
lights up.
* “Intro Folder” is only applicable for MP3 disc.
Note:
MP3 indicator also lights up if the current playing
disc is an MP3 disc.
To cancel intro scan, select “Intro Off” by
pressing number button 1 repeatedly or press
number button 4 in step 2.
Ex.: When you select “Intro Track” while
playing an MP3 disc
EN56-61_KD-LH401[E_EX]f.p65 30/1/04, 5:23 PM61

JVC KD-Lh401 Specifications

Audio Amplifier Specifications

maximum power output front	50 W per channel
maximum power output rear	50 W per channel
continuous power output RMS front	19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion
continuous power output RMS rear	19 W per channel into 4 Ω, 40 Hz to 20 000 Hz at no more than 0.8% total harmonic distortion
load impedance	4 Ω (4 Ω to 8 Ω allowance)
equalizer control range frequencies	60 Hz, 150 Hz, 400 Hz, 1 kHz, 2.4 kHz, 6 kHz, 12 kHz
equalizer control range level	±10 dB
frequency response	40 Hz to 20 000 Hz
signal-to-noise ratio	70 dB
line-out level/impedance	5.0 V/20 kΩ load (full scale)
output impedance	1 kΩ

CD Player Specifications

operating voltage	DC 14.4 V (11 V to 16 V allowance)
allowable operating temperature	0°C to +40°C
dimensions (W × H × D) installation size	182 mm × 52 mm × 159 mm
dimensions (W × H × D) panel size	188 mm × 58 mm × 12 mm
mass	1.6 kg (excluding accessories)
frequency response	5 Hz to 20 000 Hz
dynamic range	96 dB
signal-to-noise ratio	98 dB
max. bit rate mp3	320 Kbps
max. bit rate wma	192 Kbps

Tuner Specifications

frequency range FM	87.5 MHz to 108.0 MHz
frequency range AM (MW)	522 kHz to 1 620 kHz
frequency range AM (LW)	144 kHz to 279 kHz
usable sensitivity FM	11.3 dBf (1.0 µV/75 Ω)
50 dB quieting sensitivity FM	16.3 dBf (1.8 µV/75 Ω)
alternate channel selectivity FM (400 kHz)	65 dB
frequency response FM	40 Hz to 15 000 Hz
stereo separation FM	30 dB
capture ratio FM	1.5 dB
sensitivity MW	20 µV
selectivity MW	35 dB
sensitivity LW	50 µV
