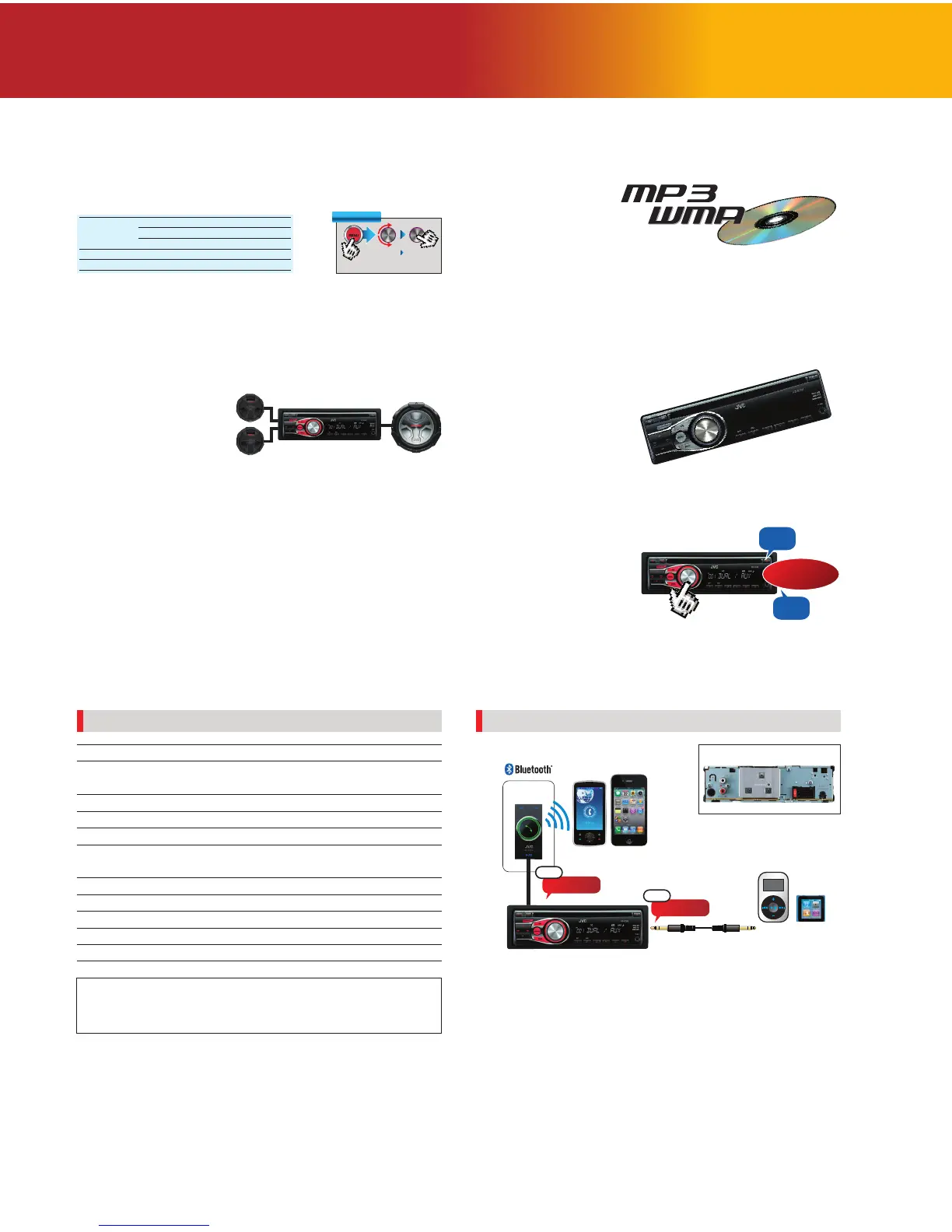

2011 JVC Product Tech Guide
C M Y K
KD-R320
NTK-0786-12
Connections
KD-R320
CD Receiver with Dual AUX
iPod
Cell phone
Portable
Audio Players
iPhone
KS-BTA100
(Optional)
✹High-Pass Filter
High-Pass Filter lets you control high-frequency sound settings by filtering out
frequencies below the cutoff level.
AUX-IN
Front
AUX-IN
Rear
Maximum Power Output 50W x 4
Continuous Power Output (RMS) 20W RMS x 4 Channels at 4Ω ;
*
1
Total Harmonic Distortion 1.0% THD*
1
+ N
HPF*
2
(Rear) Off/On
LPF (Subwoofer) off / 55 / 85 / 120Hz (-12dB/oct)
Line Pre-Output Terminals 1 (Rear/Subwoofer Selectable)
Subwoofer Output with
Level/Frequency Control
✔ (Rear/Subwoofer Selectable)
Line Output Level 2.5V
Subwoofer Output Level 2.5V
Subwoofer Gain Control INF - 0dB*
3
Load Impedance 4Ω (4 - 8Ω allowable)
Line Output Impedance ; 600Ω
*2 Set according to LPF figures *3 MUTE / -14dB / -12dB / -10dB / -8dB / -6dB / -4dB / -2dB / 0dB
Dimentions (W x H x D)
Installation Size 7
3/16
” x 2
1/16
” x 6
5/16
” 182 x 52 x 159 mm
Panel Size 7
7/16
” x 2
3/8
” x
3/8
” 188 x 58 x 8.5 mm
Detachable Face Plate 6
3/4
” x 1
13/16
” x
7/8
” 170 x 46.4 x 21.1 mm
Key Specifications
✹Detachable Face
With JVC headunits, you can easily remove the control
panel and take it with you for security.
Rear Panel
✹3-Band Parametric iEQ
Adjusts the center frequency, bandwidth and levels at each of 3 bands. Plus 5
factory and 1 user EQ presets. With Pro mode, the EQ can customize the sound for
your ears. A separate setting for the subwoofer level is also available.
PRO EQ mode
<PRO EQ> <BASS>
<MIDDLE>
<TREBLE>
[Hold]
Control Range Bass: 60Hz, 80Hz, 100Hz, 200Hz
Mid-range
: 500Hz, 1kHz, 1.5kHz, 2.5kHz
Treble: 10kHz,
12.5kHz,
15kHz, 17.5kHz
Level -6~+6dB
Q (band with) 0.75~2.0Q
✹Variety Beep Tone Support (6 tones)
JVC’s CD Receivers have 6-tone
beep support for a safe drive and
easy operation.
beep
peep
6 tones
✹MP3/WMA Playback
Compatible with compressed audio formats.
✹Separated Brightness Control (32 steps)
With JVC’s CD receivers, you can easily control the brightness separately for left and
right in 32 steps, for increased safety or to suit the car environment.
