(No.MA465<Rev.003>)1-15

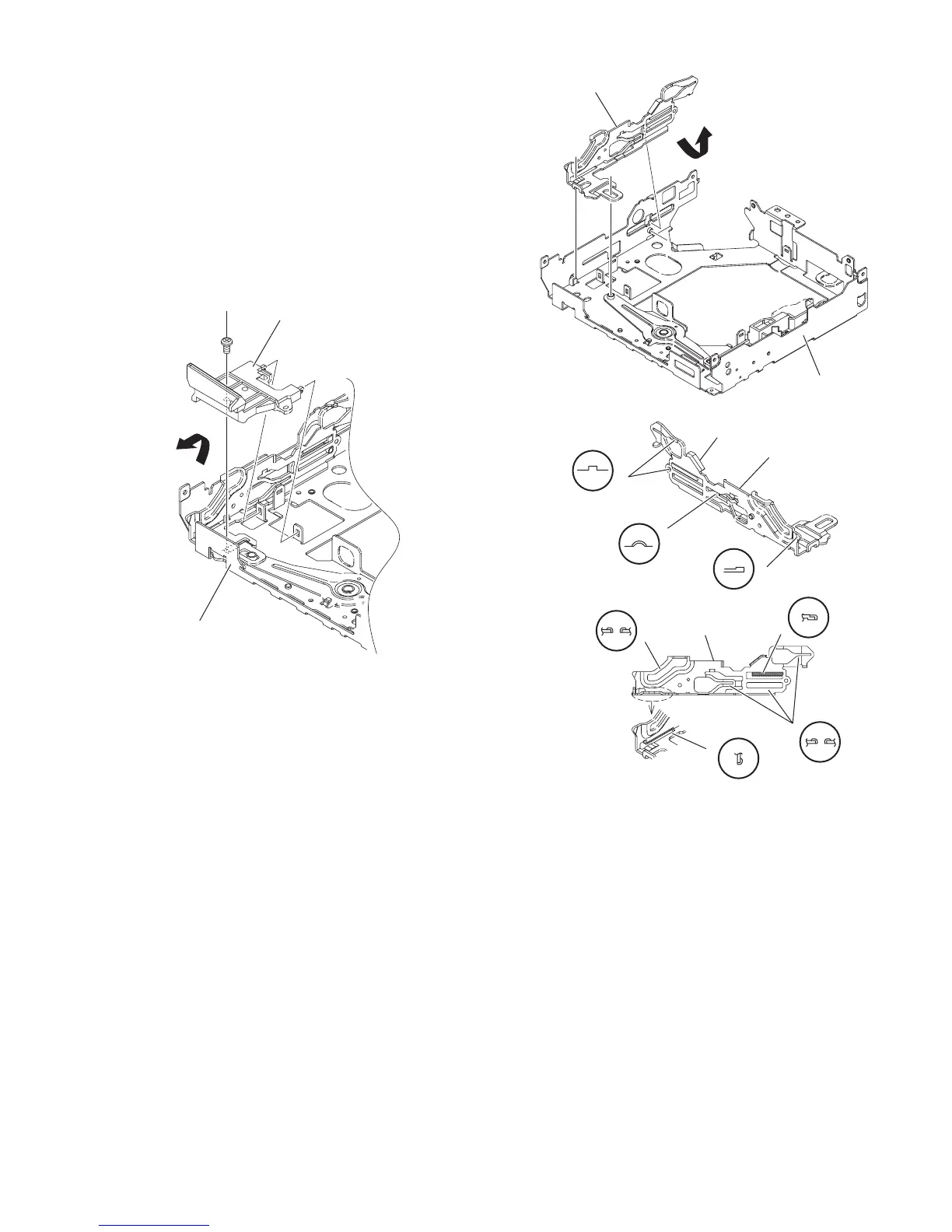

3.2.6 Removing the slide cam (L) (See Fig.11 to 13)
• Remove the MECHANISM CONTROL BOARD assembly, top
cover and mechanism section.
(1) From the top side of the mecha frame, remove the screw F
attaching the cam cover. (See Fig.11.)
(2)
Take out the cam cover from mecha frame in an upward
direction. (See Fig.
11
.)
(3) Take out the slide cam (L) in the direction of the arrow.
(See Fig.12.)
Reference:
When attaching the slide cam (L), apply grease to the
section h. (See Fig.13.)
Fig.11
Fig.12
Fig.13
Mecha frame
Cam cover
F
Mecha frame
Slide cam(L)
Slide cam(L)
Slide cam(L)
h
h
h
h
h
h
h
h
