JVC KD-SR82BT - Wiring Harness and Connection Recommendations; Specific Wire Color Coding

30
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
STEERING
WHEEL
REMOTE
Car fuse block
Ignition switch
Light blue/yellow
Blue/white: To amplifier
Blue: To power antenna
Make this connection if your vehicle factory
wiring harness does not have “12V ignition
switch” wire.
Separate red wire
Signal cord
(not supplied)
Remote wire (not supplied)
To the steering wheel
remote control adapter
Fuse (10A)
Antenna terminal
JVC Amplifier
*
1
Factory wiring
harness (vehicle)
Black: Ground
Yellow: Battery 12V
White: Front speaker/For 3-way crossover: mid range speaker (left)
White/black
Gray: Front speaker/For 3-way crossover: mid range speaker (right)
Gray/black
Purple: Rear speaker/For 3-way crossover: Tweeter (right)
Purple/black
Join the same color wires together.
Red: Ignition 12V
Orange/white: Illumination
(Not used)
Blue/white: Remote (200mA max.)
Brown
Green: Rear speaker
*
2
/For 3-way crossover: Tweeter (left)
Green/black
*
2
*
1
Firmly connect the ground wire of the
amplifier to the car’s chassis to avoid
damaging the unit.
*
2
You can also connect a subwoofer speaker
directly using this lead without an external
subwoofer amplifier. For setting,
19 .
Custom wiring harness
(separately purchased)
IMPORTANT
We recommend installing the unit with a commercially
available custom wiring harness specific for your car and
leave this job to professionals for your safety. Consult your
car audio dealer.
Vehicle
dashboard
Recommended connection
Microphone input jack ( 11)

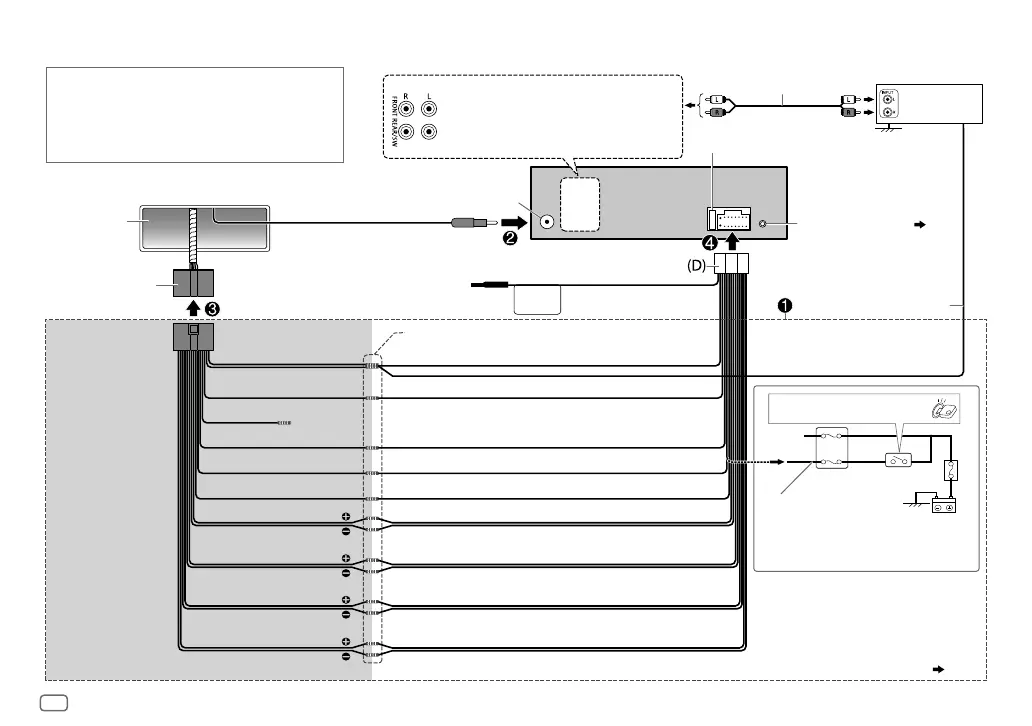

Wiring connection
Front output/ Mid range output (for 3-way
crossover)
Rear/subwoofer output/ Woofer output (for
3-way crossover)
