ENGLISH
31
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)
Part list for
installation
(A) Faceplate
(C) Mounting sleeve
(B) Trim plate
(D) Wiring harness
(E) Extraction key

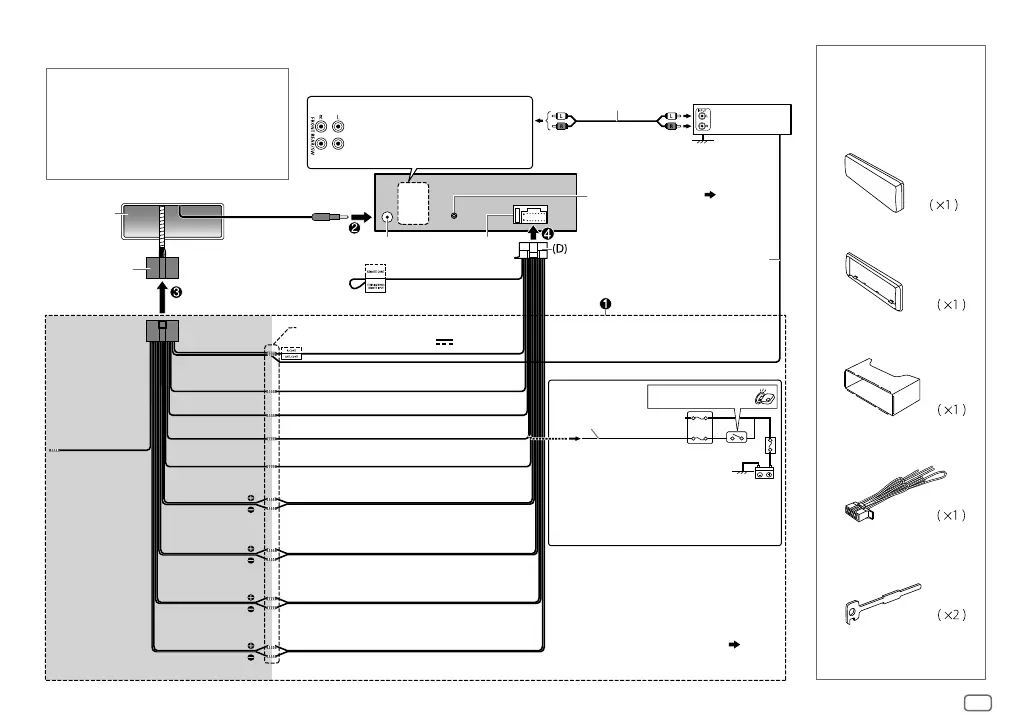

Wiring connection
Green/black
*
2
IMPORTANT
We recommend installing the unit with a
commercially available custom wiring harness
specific for your car and leave this job to
professionals for your safety. Consult your car
audio dealer.
Blue/white:
To amplifier
Blue: To power
antenna
Factory wiring
harness (vehicle)
Brown (not used)
Custom wiring
harness
(separately
purchased)
Vehicle
dashboard
Recommended connection
Car fuse block
Ignition switch
Light blue/yellow
Make this connection if your vehicle factory
wiring harness does not have “12V ignition
switch” wire.
Separate red wire
Signal cord (not supplied)
Remote wire (not supplied)
To the steering wheel
remote control adapter
Fuse (10A)
Antenna terminal
JVC Amplifier
*
1
Black: Ground
Yellow: Battery 12V
White: Front speaker/3-way crossover: Mid range
speaker (left)
White/black
Gray: Front speaker/3-way crossover: Mid range
speaker (right)
Gray/black
Purple: Rear speaker/3-way crossover: Tweeter
(right)
Purple/black
Join the same color wires together.
Red: Ignition 12V
Orange/white: Illumination
Blue/white: Remote (12 V
350mA)
Microphone input jack
( 11)
Front output/3-way crossover: Mid
Range output
Green: Rear speaker
*
2
/3-way crossover: Tweeter
(left)
*
1
Firmly connect the ground wire of the
amplifier to the car’s chassis to avoid
damaging the unit.
*
2
You can also connect a subwoofer speaker
directly using this lead without an external
subwoofer amplifier. For setting,
21 .
Rear/subwoofer output/3-way
crossover: Woofer output
