1-16
KD-SX8250/KD-SX780
Prior to performing the following procedure, remove
the top cover, the chassis unit, the top plate
assembly and the pickup unit.
Pull out the feed gear.
Move the loading plate assembly in the direction of
the arrow to release the slide plate from the two slots
j’ of the chassis rivet assembly.
Detach the loading plate assembly upward from the
chassis rivet assembly while releasing the joint k’.
Remove the slide hook and the loading plate spring
from the loading plate assembly.
Pull out the loading gear (2) and remove the change
lock lever.
Remove the E-washer and the washer attaching the
changer gear (2).
The changer gear (2), the changer gear spring and
the adjusting washer come off.
Remove the loading gear (1).
Move the hang plate rivet assembly in the direction
of the arrow to release from the three shafts of the
chassis rivet assembly upward.
Detach the loading gear plate rivet assembly from
the shaft of the chassis rivet assembly upward while
releasing the joint l’.
Pull out the loading gear (4).
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.

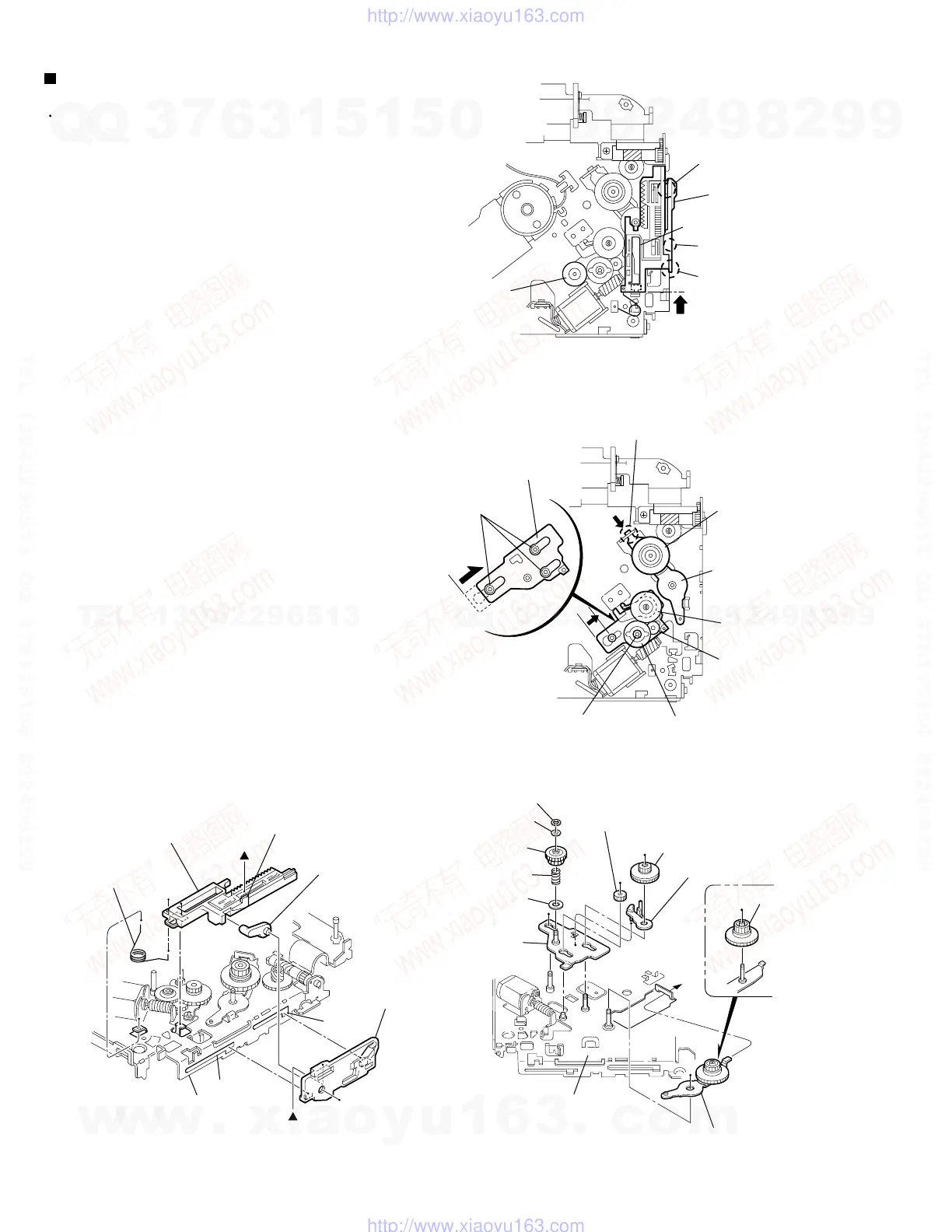

Removing the gears (See Fig.33 to 36)
Fig.33
Fig.34
Fig.36Fig.35
Slot j'
Slot j'
Joint k'
Feed gear
Loading plate assembly
Slide plate
Joint l'
Loading gear (4)
Loading gear (2)
Loading gear (2)
Loading gear (4)
Loading gear (2)
Loading gear (1)
Loading gear (1)
Change gear (2)
Loading gear plate
rivet assembly
E-washer
E-washer
Washer
Shafts
Change plate
rivet assembly
Loading plate assembly
Loading plate spring
Loading plate spring
Loading gear plate rivet assembly
Chassis rivet assembly
Chassis rivet assembly
Slot j'
Slot j'
Joint k'
Slide plate
Slide hook
Adjusting washer
Change plate
rivet assembly
Change lock lever
