KD-SX980
1-5
Prior to performing the following procedure, remove
the front chassis and the heat sink.
Turn the body upside down.
Insert a screwdriver to the two joints d and two joints
e on both sides of the body and the joint f on the
back of the body, then detach the bottom cover from
the body.
1.
2.

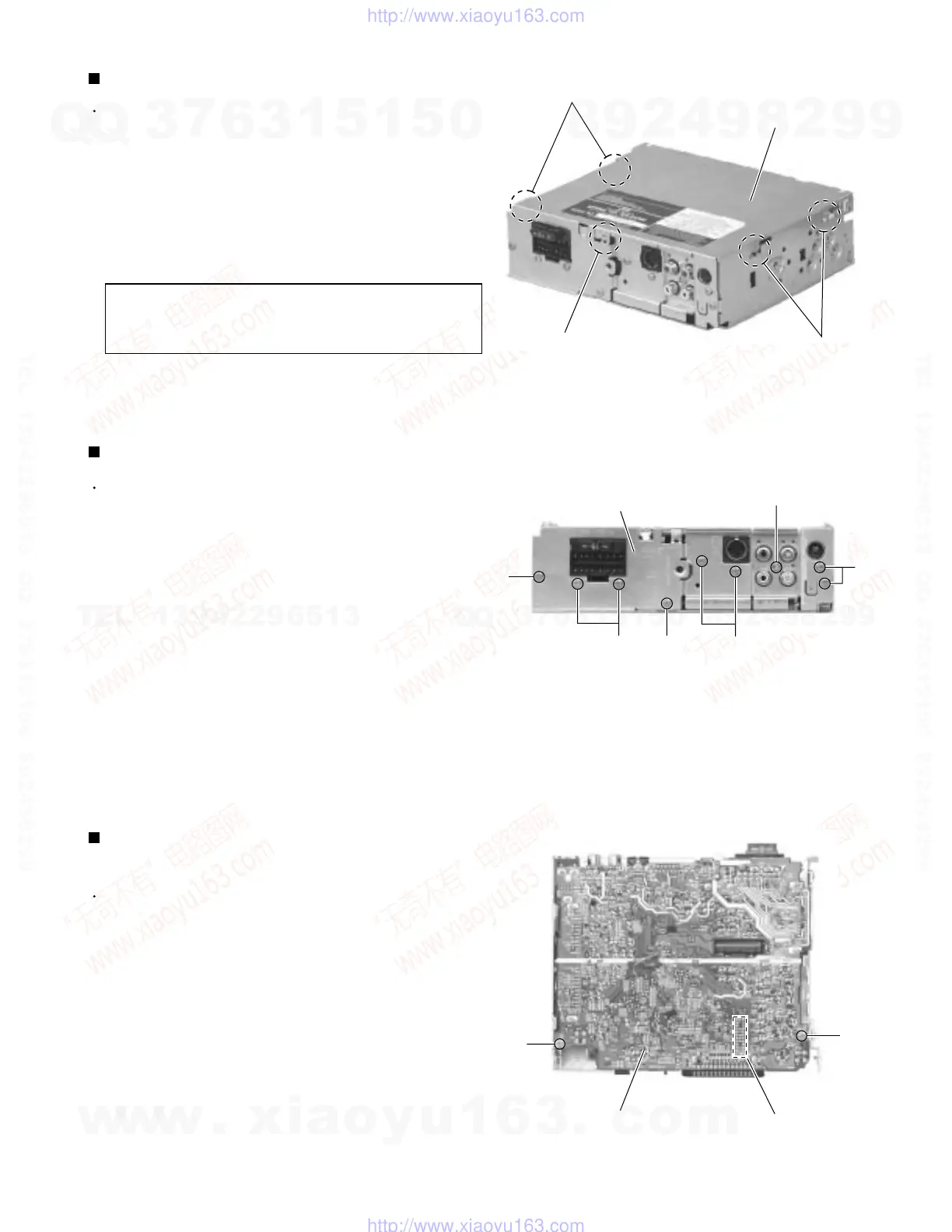

Removing the bottom cover (See Fig.6)
Prior to performing the following procedure, remove
the front chassis, the heat sink and bottom cover.
Remove the eight screws D attaching the rear panel
and one screw E attaching the pine jack on the back
of the body.
1.
Removing the rear panel (See Fig.7 )
Prior to performing the following procedure, remove
the front chassis, the heat sink, bottom cover and the
rear panel.
Remove the two screws F attaching the main
amplifier board assembly on the top cover.
Disconnect connector CN101 on the main amplifier
board assembly from the cassette mechanism
assembly.
1.
2.
Removing the main amplifier board assembly
(See Fig.8)
When disengaging the joint f using a
screwdriver, do not damage or break the
board.
CAUTION:
Bottom cover
Fig. 6
Fig. 7
Fig. 8
Main board assembly
Joints d
Joints e
Joint f
D
D
D
D D
E
Rear panel
CN101
F
F
