KD-SX980
1-8

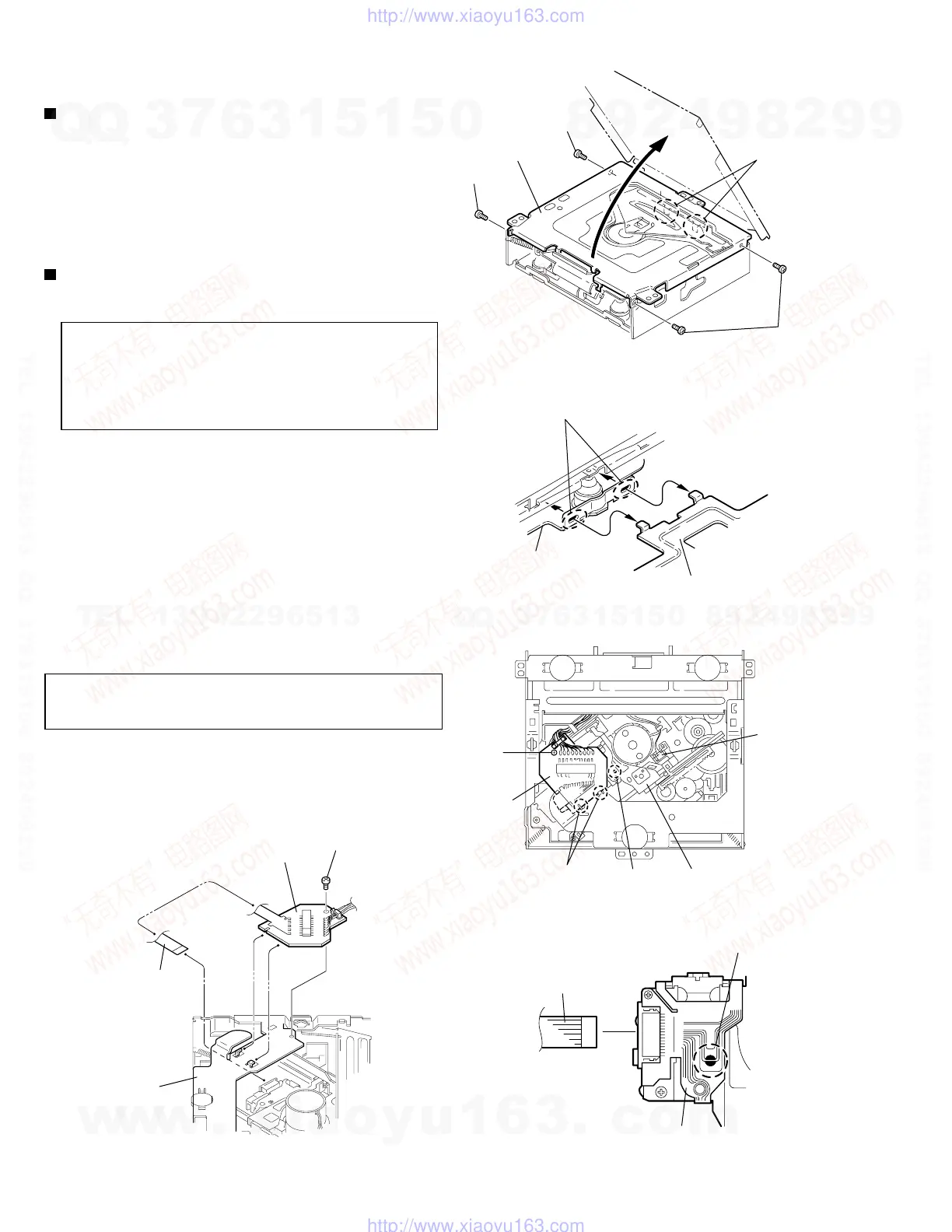

Remove the two screws A on each side of the body.
Lift the front side of the top cover and move the
cover backward to release the two joints a.
1.
2.
Removing the top cover
(See Fig.1 and 2)
Remove the screw B fixing the connector board.
Solder the short-circuit point on the connector board.
Disconnect the flexible wire from the pickup.
Move the connector board in the direction of the
arrow to release the two joints b.
Unsolder the wire on the connector board if
necessary.
1.
2.
3.
4.
Removing the connector board
(See Fig.3 to 5)
Before disconnecting the flexible wire
from the pickup, solder the short-circuit
point on the pickup. No observance of
this instruction may cause damage of
the pickup.
CAUTION:
Unsolder the short-circuit point after
reassembling.
CAUTION:
<CD mechanism section>
Fig.1
Fig.2
Fig.3
Fig.4Fig.5
A
A
A
B
B
Joints a
Joints a
Top cover
Top cover
Connector board
DET switch
Pickup
Pickup
Short-circuit
Joints b
Short-circuit point
(Soldering)
Flexible wire
Flexible wire
Connector board
Frame
