JVC KD-V100 Service Manual

KD-V100A/B/C/E/ED/J/U/NA/N
NC/NE/NED/NJ

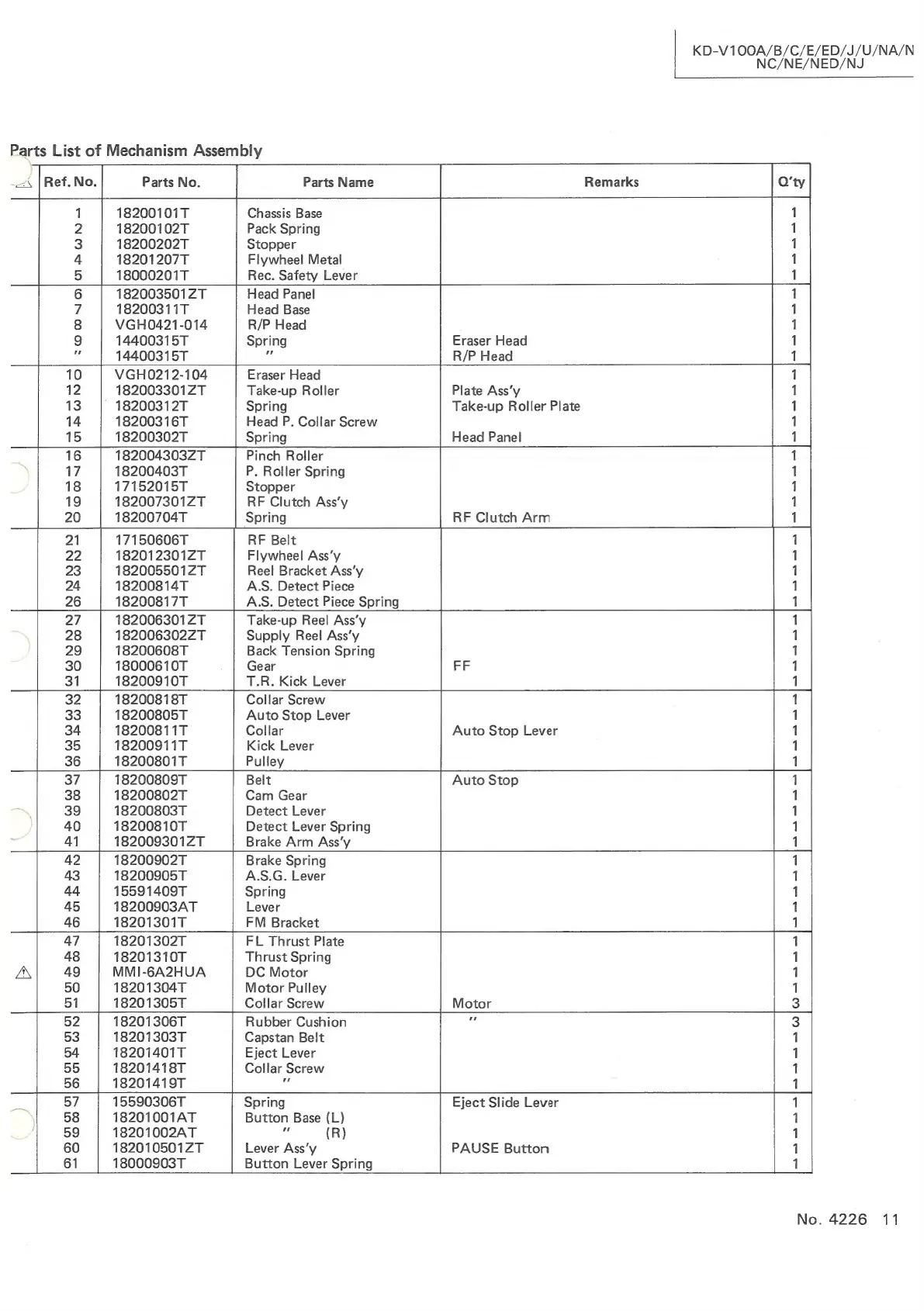

Parts List of Mechanism Assembly
A Parts No. Parts Name Remarks Q
2
18200101T Chassis Base
18200102T Pack Spring
18200202T Stopper
18201207T Flywheel Metal
18000201T Rec. Safety Lever
182003501 ZT Head Panel 1
18200311T Head Base 1
VGH0421-014 R/P Head 1
14400315T Spring Eraser Head 1
i 14400315T ” R/P Head 1
10 VGH0212-104 Eraser Head 1
12 1820033012ZT Take-up Roller Plate Ass’y 1
13 18200312T Spring Take-up Roller Plate 1
14 18200316T Head P. Collar Screw 1
15 18200302T Spring Head Panel 1
16 1820043032ZT Pinch Roller 1
17 18200403T P. Roller Spring 1
18 17152015T Stopper 1
19 182007301ZT RF Clutch Ass’y 1
20 18200704T Spring RF Clutch Arm 1
21 17150606T RF Belt 1
22 182012301ZT Flywheel Ass’y 1
23 1820055012T Reel Bracket Ass’y 1
24 18200814T A.S. Detect Piece 1
26 18200817T A.S. Detect Piece Spring 1
27 182006301ZT Take-up Reel Ass’y 1
28 182006302ZT Supply Reel Ass’y 1
29 18200608T Back Tension Spring 1
30 18000610T Gear FF 1
31 18200910T T.R. Kick Lever 1
32 18200818T Collar Screw 1
33 18200805T Auto Stop Lever 1
34 1820081 1T Collar Auto Stop Lever 1
35 18200911T Kick Lever 1
36 18200801T Pulley 1
37 18200809T Belt Auto Stop 1
38 18200802T Cam Gear 1
39 18200803T Detect Lever 1
40 18200810T Detect Lever Spring 1
41 1820093012ZT Brake Arm Ass‘y 1
42 18200902T Brake Spring 1
43 18200905T A.S.G. Lever 1
44 15591409T Spring 1
45 18200903AT Lever 1
46 18201301T FM Bracket 1
47 18201302T FL Thrust Plate 1
48 18201310T Thrust Spring 1
Z\ 49 MMI-6A2HUA DC Motor 1
50 18201304T Motor Pulley 1
51 18201305T Collar Screw Motor 3
52 18201306T Rubber Cushion a 3
53 18201303T Capstan Belt 1
54 18201401T Eject Lever 1
55 18201418T Collar Screw 1
56 18201419T ua 1
_ 57 15590306T Spring Eject Slide Lever 1
58 18201001AT Button Base (L) |
59 18201002AT id (R) 1
60 182010501ZT Lever Ass’y PAUSE Button 1
61 18000903T Button Lever Spring 1
No. 4226 11

JVC KD-V100 Specifications

General

Brand	JVC
Model	KD-V100
Category	Cassette Player
Language	English
