Removing the unit

Installing the unit without mounting sleeve

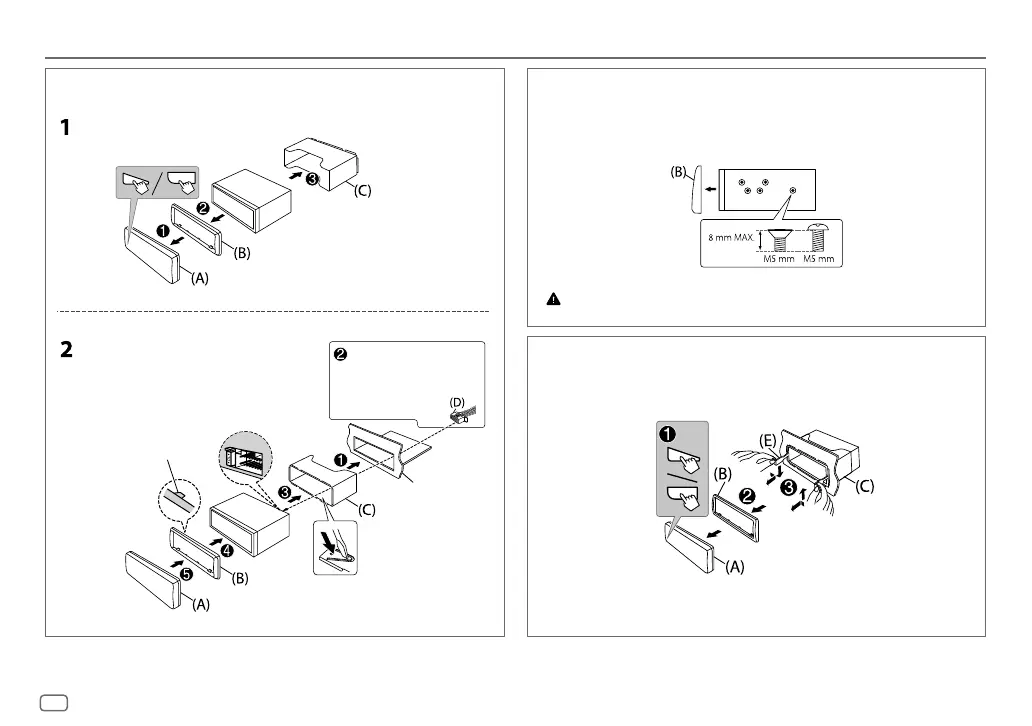

Remove the mounting sleeve and trim plate from the unit.

Align the holes in the unit (on both sides) with the vehicle mounting bracket and

secure the unit with screws (commercially available).

Use only the specified screws. Using wrong screws might damage the unit.

Do the required wiring.

(Page 19)

Bend the appropriate tabs to hold the

sleeve firmly in place.

Hook on the top side

Orientate the trim

plate as illustrated

before fitting.

Dashboard of

your car

INSTALLATION/CONNECTION

Installing the unit (in-dash mounting)
