Removing the unit

Installing the unit (without mounting sleeve)

1 Remove the mounting sleeve and trim plate from the unit.

2 Align the holes in the unit (on both sides) with the vehicle

mounting bracket and secure the unit with screws (commercially

available).

Part list (supplied)

(A) Faceplate (×1)

(B) Trimplate (×1)

(D) Wiring harness (×1)

(E) Extraction key (×2)

Use only the specified screws.

Using wrong screws might damage

the unit.

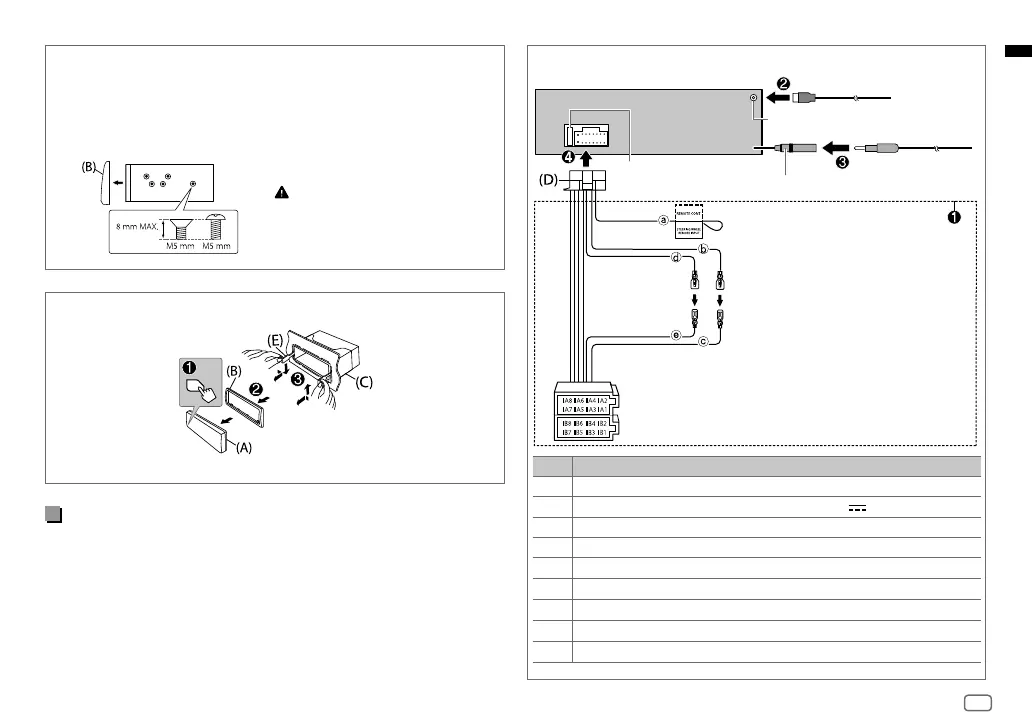

Wiring connection

Pin Color and function

A4 Yellow : Battery

A5 Blue/White : Power control (12 V

350 mA)

A6 Orange/white : Car light control switch

A7 Red : Ignition (ACC)

A8 Black : Earth (ground) connection

B1, B2

Purple

]

, Purple/black

[

: Rear speaker (right)

B3, B4

Gray

]

, Gray/black

[

: Front speaker (right)

B5, B6

White

]

, White/black

[

: Front speaker (left)

B7, B8

Green

]

, Green/black

[

: Rear speaker (left)

Antenna terminal

Fuse (10 A)

a Light blue/yellow: To the steering

wheel remote control adapter

b Yellow: Battery wire

c Yellow: A4

d Red: Ignition wire

e Red: A7

ISO connectors

DAB antenna jack (SMB connector)
