(No.MA094B)1-15

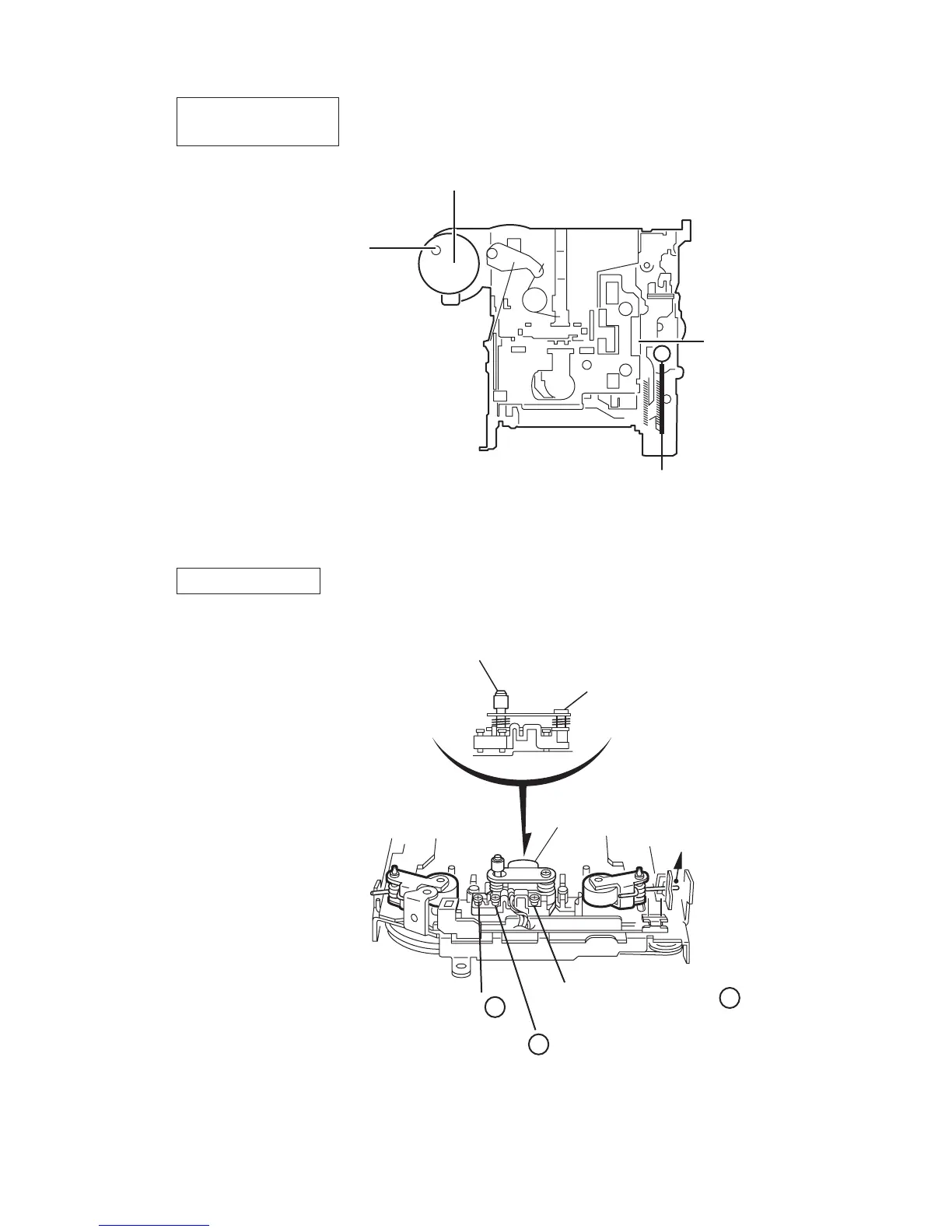

4.2 Arrangement of Adjusting & Test points
Playback head
Head azimuth screw
Fixed screw
Height adjusting screw c
Height adjusting screw b
Height adjusting screw a
Head section view
Cassette mechanism
(Surface)
Tape speed adjust
Motor assembly
Playback head
Azimuth screw
