KS-FX711/KS-FX511
Remove the screw A attaching the side bracket
assembly.
Detach the front side of the side bracket assembly
upward and pull out forward to release the joint i and
j in the rear.
1.
2.

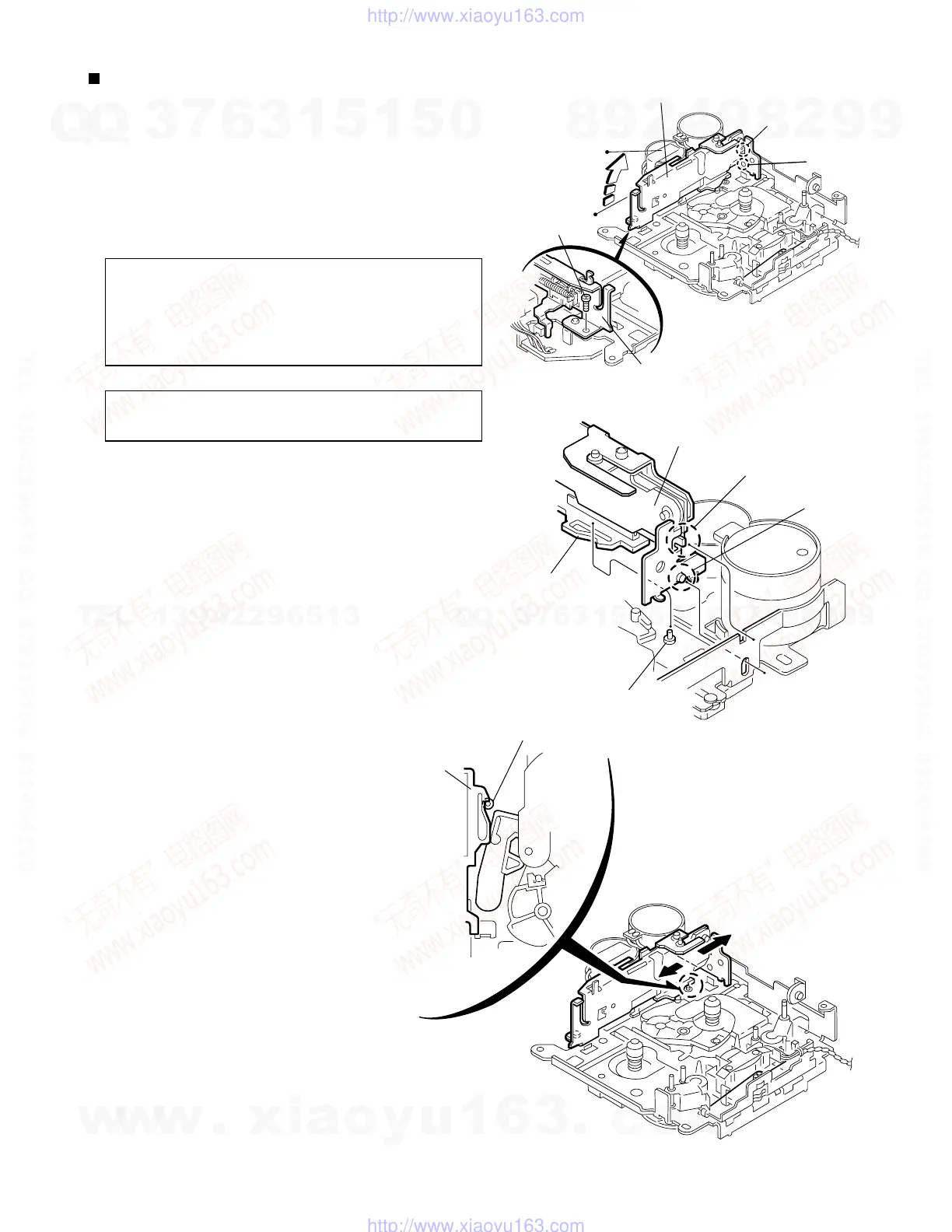

Removing the side bracket assembly
(See Fig.8 to 10)
When reassembling, make sure that the
boss k of the main chassis is set in the
notch of the load rack under the side
bracket assembly. Do not reattach the
load rack on the boss k.
CAUTION:
After reattaching the side bracket
assembly, confirm operation.
CAUTION:
Fig.9
Fig.10
Fig.8
A
Side bracket assembly
Side bracket assembly
Joint i
Joint j
Side bracket assembly
Boss k
Load rack
Boss k
Load rack
Joint i
Joint j
