Data Size: B6L (182 mm x 128 mm)

Book Size: B6L (182 mm x 128 mm)

STEERING

WHEEL

REMOTE

(For KW-R920BT)(For KW-DB92BT)

Fuse (10A)

Light blue/yellow

(Steering remote control wire)

To the steering wheel remote control adapter

Yellow (A4)

Red (Ignition wire)

Red (A7)

Yellow (Battery wire)

ISO connectors

If no connections are made, do not let the wire come out from the tab.

Rear/ Front/ Subwoofer output

For 3-way crossover: Tweeter/

Mid Range/ Woofer output

Microphone input jack

( 

)

Antenna terminal

DAB antenna jack

(SMB connector)

Antenna input terminal (for FM/AM)

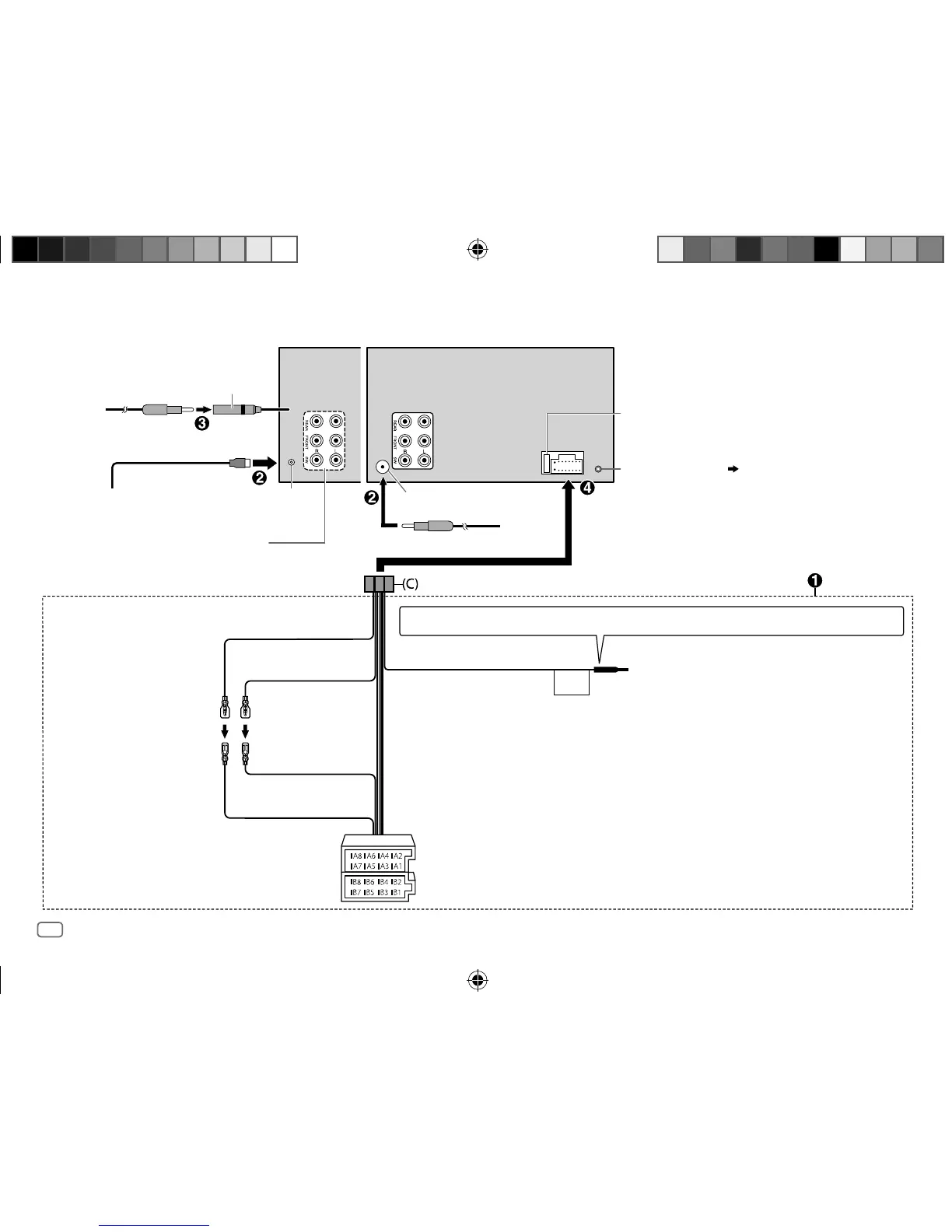

Wiring connection

JS_JVC_KW_R920BT_DB92BT_E_EN_1.indd 30JS_JVC_KW_R920BT_DB92BT_E_EN_1.indd 30 3/11/2015 9:00:08 AM3/11/2015 9:00:08 AM
