ENGLISH
29
Data Size: B6L (182 mm x 128 mm)
Book Size: B6L (182 mm x 128 mm)

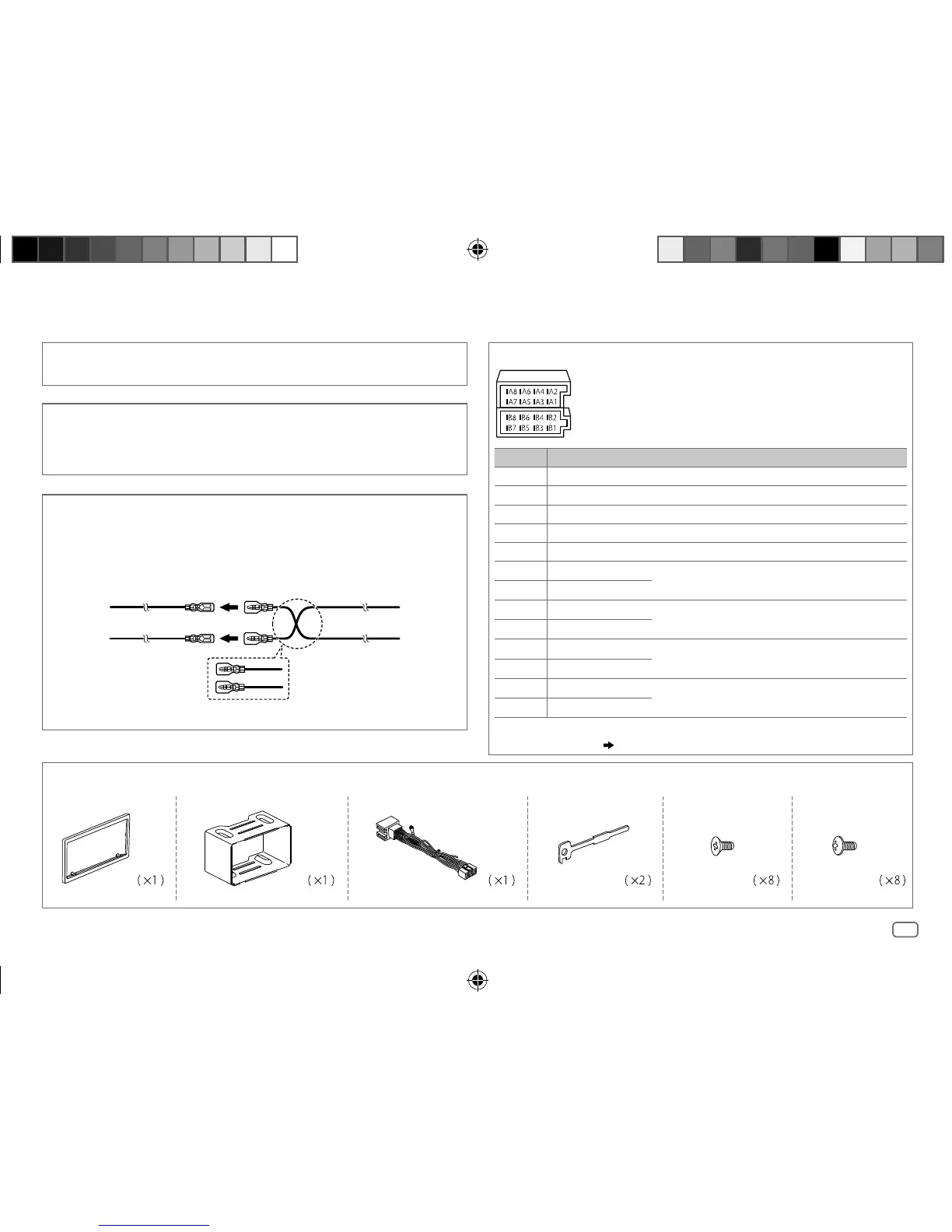

Connecting the ISO connectors on some VW/Audi or Opel (Vauxhall)
automobiles
You may need to modify the wiring of the supplied wiring harness as illustrated below.
ISO connectors
Pin
Color and function
A4 Yellow : Battery
A5 Blue/White : Power control
A6 Orange/white : Car light control switch
A7 Red : Ignition (ACC)
A8 Black : Earth (ground) connection
B1
Purple
]
: Rear speaker (right)
For 3-way crossover: Tweeter (right)
B2
Purple/black
[
B3
Gray
]
: Front speaker (right)
For 3-way crossover: Mid range speaker (right)
B4
Gray/black
[
B5
White
]
: Front speaker (left)
For 3-way crossover: Mid range speaker (left)
B6
White/black
[
B7
Green
]
: Rear speaker (left)
*
For 3-way crossover: Tweeter (left)
B8
Green/black
[
* You can also connect a subwoofer speaker directly without an external subwoofer
amplifier. For setting,
19
.
Wiring connection
UnitVehicle
A7 (Red) Ignition wire (Red)
A4 (Yellow)
Default wiring
Battery wire (Yellow)
If your car does not have an ISO terminal :
We recommend installing the unit with a commercially available custom wiring harness
specific for your car and leave this job to professionals for your safety. Consult your car audio
dealer.
When connecting to an external amplifier, connect its ground wire to the car’s chassis to
avoid damaging the unit.
Part list for installation
(A)
Trim plate
(B)
Mounting sleeve
(C)
Wiring harness
(D)
Extraction key
(E)
Flat head screw
(
M5 × 8mm
)
(F)
Round head screw
(
M5 × 8mm
)
JS_JVC_KW_R920BT_DB92BT_E_EN_1.indd 29JS_JVC_KW_R920BT_DB92BT_E_EN_1.indd 29 3/11/2015 9:00:08 AM3/11/2015 9:00:08 AM
