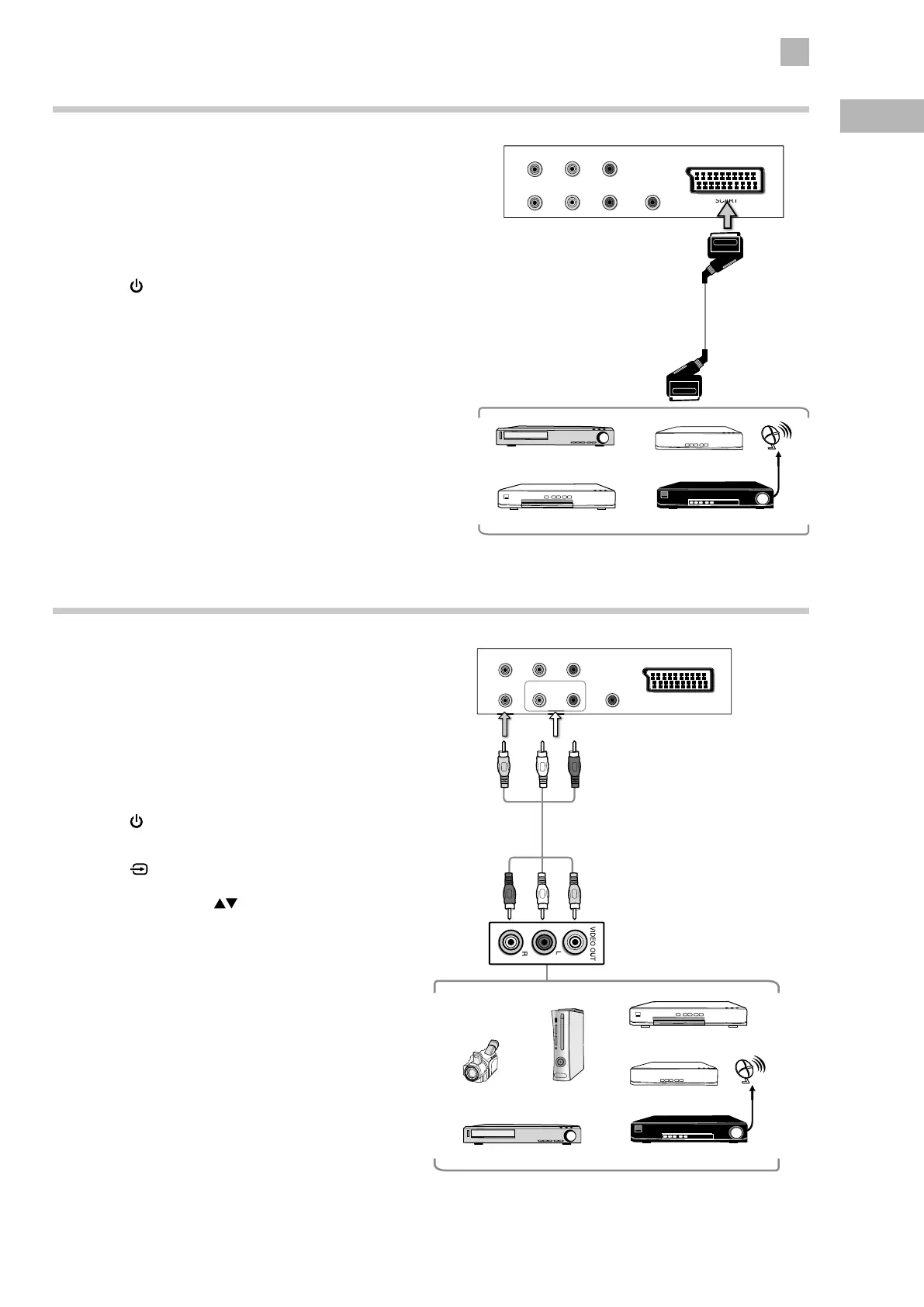

Connecting an AV Device Using a SCART Cable
1. Use a SCART cable to connect the TV’s SCART input
socket to an external AV device’s SCART output
socket.
2. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch
which is located at the front right side under the
frame.
3. Press the
button on the right side panel of the TV
or on the remote control to turn on your TV.
4. The TV will change the input source to SCART
automatically once the AV device is switched on.
Connecting an AV Device Using Composite Cable
1. Use an AV cable to connect the TV’s AUDIO(L/R)
/ VIDEO input sockets to the external AV device’s
composite audio / video output sockets.
(VIDEO = yellow, Audio Left = white, and
Audio Right = red)
2. Plug the connected devices into the mains socket
before switching on the POWER ON/OFF switch
which is located at the front right side under the
frame.
3. Press the
button on the right side panel of the TV
or on the remote control to turn on your TV.
4. Press the
button on the right side panel of the TV
or the INPUT button on the remote control to display
the Source List. Use the
buttons to select AV and
then press the OK button to confirm.
SCART
RL SPDIF OUTPUT
Pb PrY
VIDEO
SCART Cable
(not included)
VCR
DVD Player / Recorder
Set-top Box
Satellite Receiver
Satellite
antenna
cable
Rear Bottom View of TV
Video Camera
VCR
DVD Player / Recorder
Set-top Box
Game Console
AV Cable
(not included)
Yellow (Video)
Red (R)
White (L)
Yellow (Video)
Red (R)
White (L)
SCART
RL SPDIF OUTPUT
Pb PrY
VIDEO
Rear Bottom View of TV
Satellite Receiver
Satellite
antenna
cable
