JVC LT-32X575 - Page 12

1-12 (No.YA180)

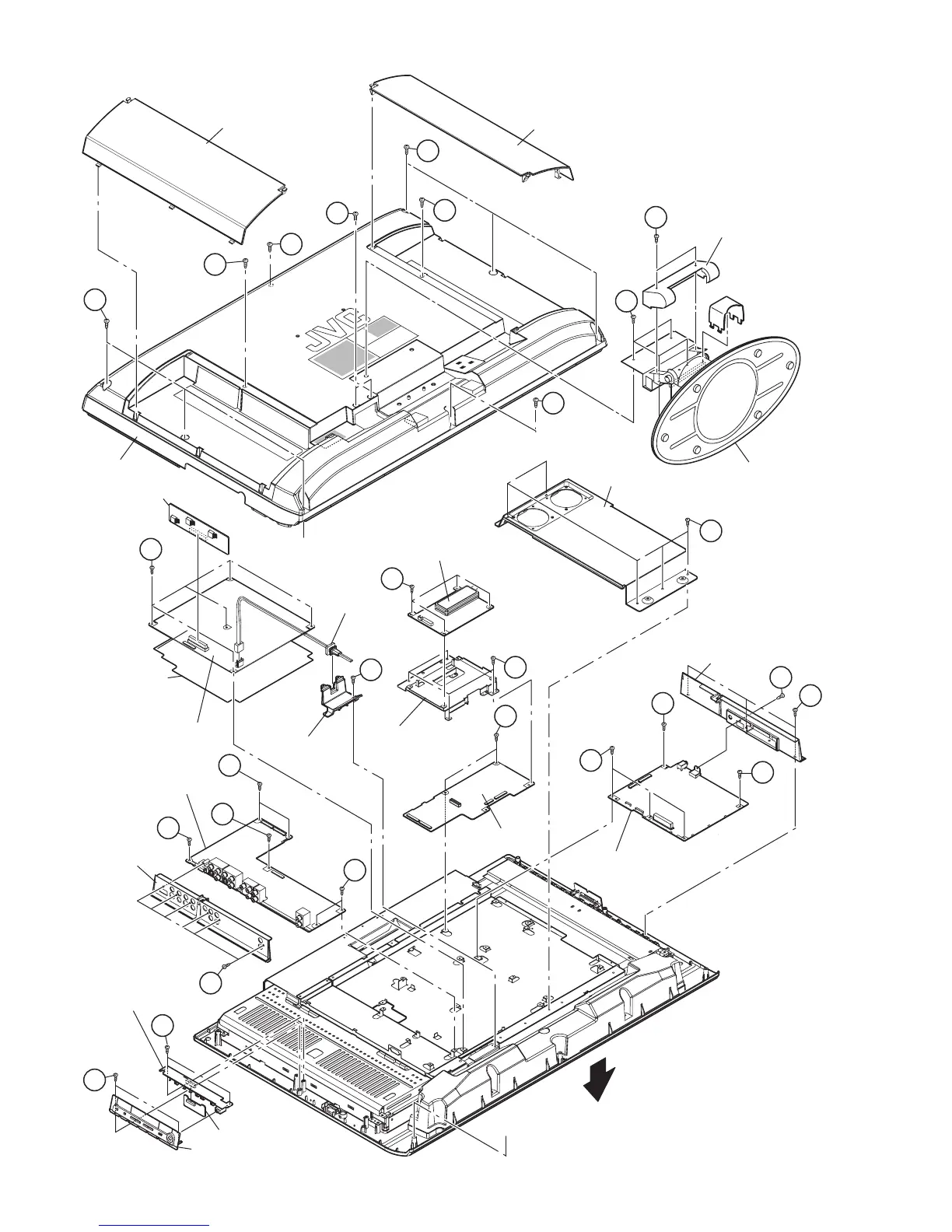

Fig.2
a
C
C
C
D
D
E
D
F
R
T
T
T
S
K
K
K
K
Q
P
O
G
L
M
K
H
a
A
B
JACK COVER
JACK COVER
STAND COVER
STAND
FAN BRACKET
RECEIVER PWB
POWER CORD
POWER CORD
HOLDER
REAR COVER
REGULATOR PWB
POWER PWB
INSULATOR
TERMINAL BASE
ANALOG SIGNAL PWB
CONTROL KNOB ASSY
FRONT SENSOR PWB
FRONT CONTROL PWB
FRONT
DIGITAL SIGNAL PWB
RECEIVER PWB
BRACKET
CONNECTOR PWB
TUNER BASE
