JVC LT-Z26SX5 User Manual

(No.YA327)3-5

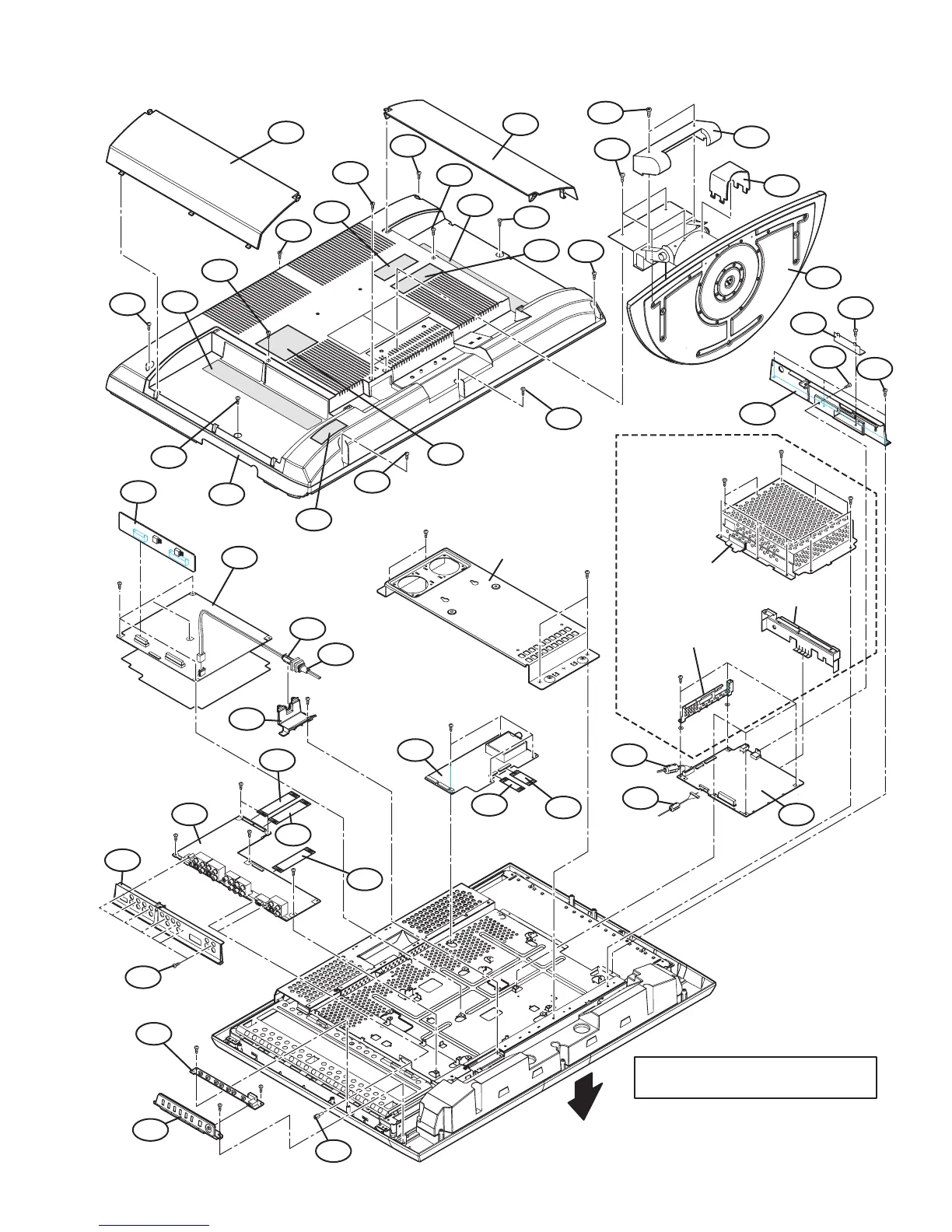

EXPLODED VIEW -1
FAN BRACKET
TOP SHIELD CASE
SIDE SHIELD CASE
SHIELD COVER
FRONT
LT-Z26SX5/S, LT-Z26SX5/A
LT-Z32SX5/S, LT-Z32SX5/A
202
203
122
124
205
201
130
101
102
114
110
119
200
127
126
128
132
123
125
130
113
114
112
114
114
116
115
114
107A
107B
106
112
114
112
105
114
133
129




204

118



117


131
104
103



107
108
109
120
121
111


This exploded view shows the 32V-inch.
26V-inch has almost similar parts locations.
