JVC LX-NZ3BK Service Manual

(No.PA063<Rev.001>)1-9

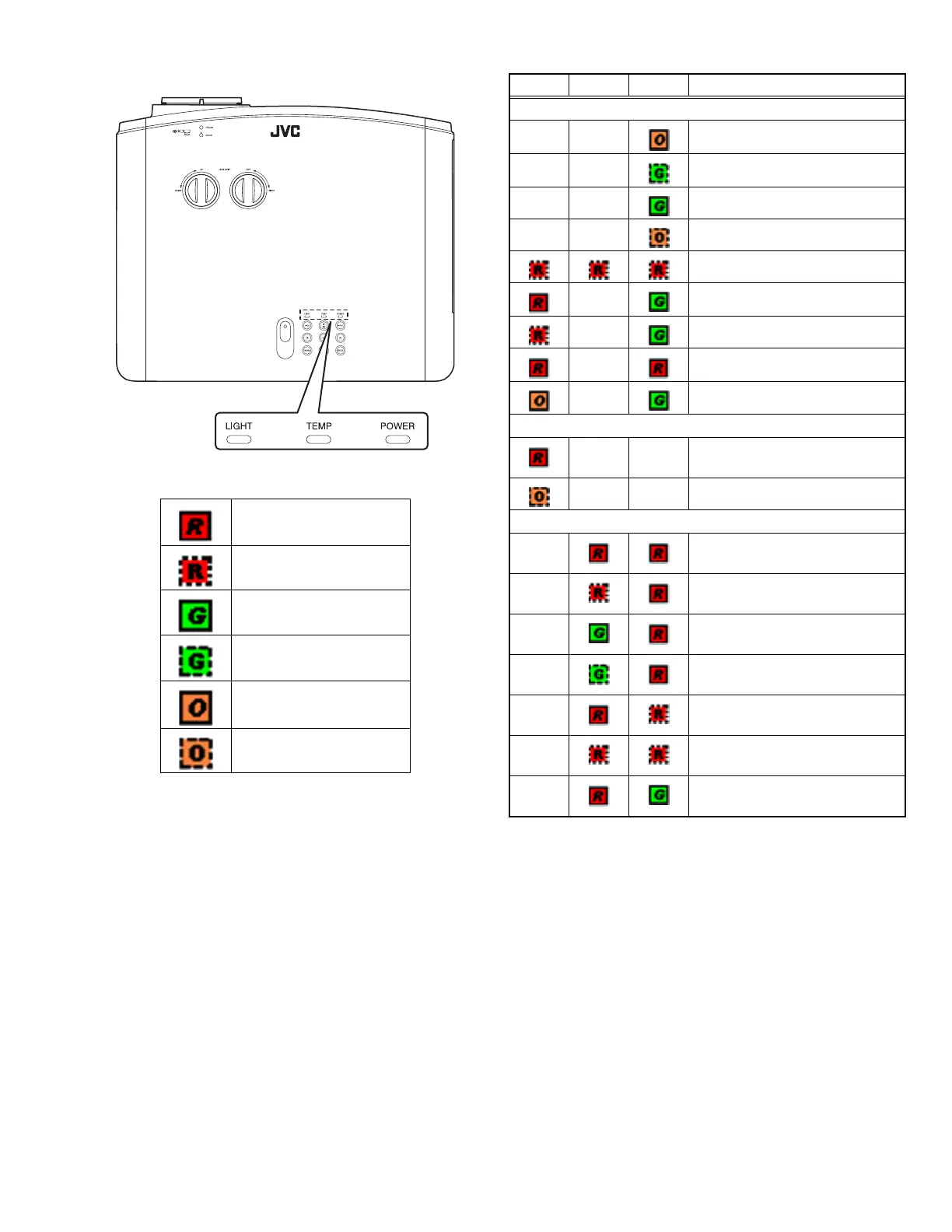

5.3 LED Error Message
light on RED
flash a Red light
light on GREEN
flash a GREEN light
light on ORANGE
flash a ORANGE light
LIGHT TEMP POWER STATUS
System Messages
System is in stand-by mode
System is powering up
System is under normal operation
System is cooling down
Downloading
Colorwheel start fail
Colorwheel spin fail
Scaler reset fail (data abort)
Light source life exhausted
Light source error Messages
Light source error in normal oper-
ation
Light source is not lit up
Thermal error Messages
Fan 1 error (the actual fan speed
is outside the desired speed)
Fan 2 error (the actual fan speed
is outside the desired speed)
Fan 3 error (the actual fan speed
is outside the desired speed)
Fan 4 error (the actual fan speed
is outside the desired speed)
Fan 5 error (the actual fan speed
is outside the desired speed)
Fan 6 error (the actual fan speed
is outside the desired speed)
Temperature 1 error (over limited
temperature)
