Connections

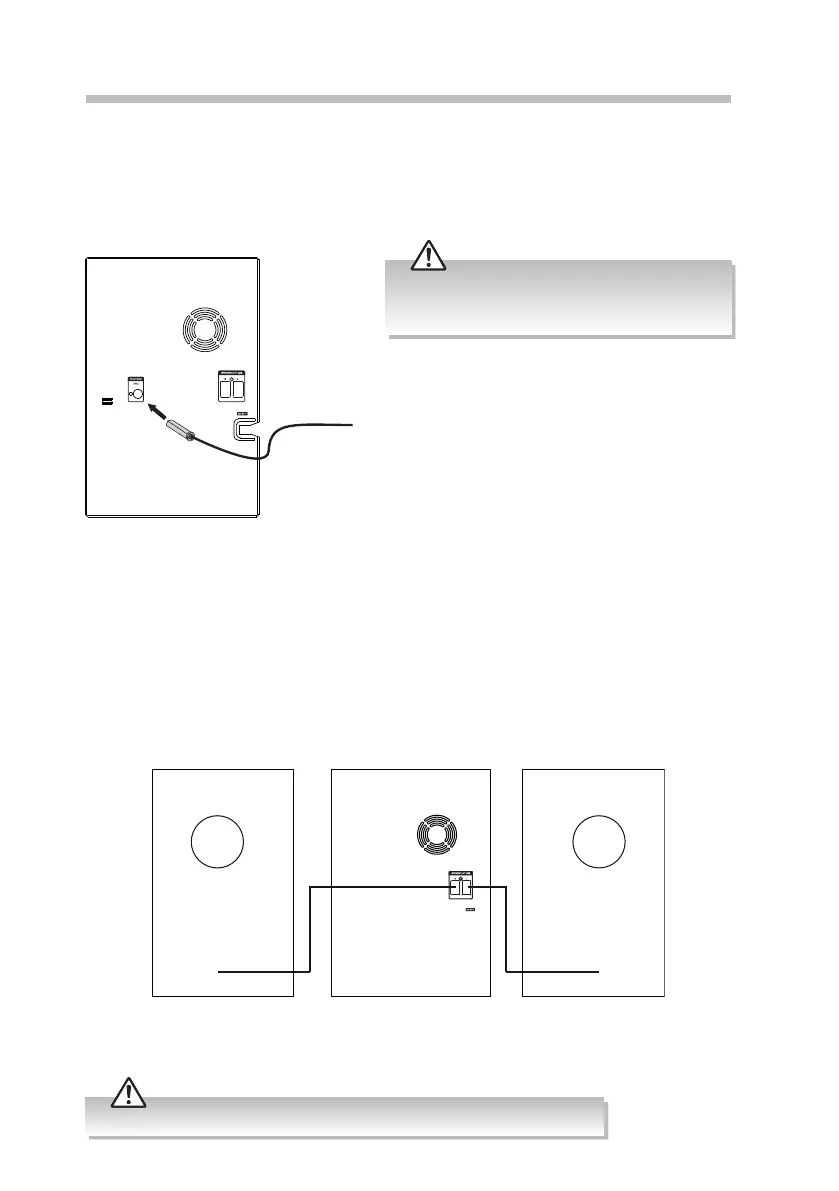

Connecting the FM Aerial
Fully extend the FM aerial. Connect the supplied FM aerial to the FM ANTENNA socket on
the rear of the unit.
Speaker Connections
1. Connect the speaker cables between the terminals as shown below.
2. Connect the speaker cables with white head to the SPEAKER OUT (3Ω) L socket and
cable with a red head to the SPEAKER OUT (3Ω) R socket.
• Do not overtighten, this could damage the aerial.
• To avoid noise, keep aerial away from the unit, the
connecting cables and the mains cable.
Rear View of the Main Unit
Rear View of the Main Unit
Rear View of the
Right Speaker
Rear View of the
Left Speaker
Connect the speaker cable to the wrong terminal will cause the sound out of phase.
