MX-G50/MX-G56

1-12

Turn the black loading pulley gear on the under side

of the CD changer unit in the direction of the arrow

and draw the CD tray toward the front until it stops.

Disconnect the card wire from connector CW103 of

the CD servo board on the upper side of the CD

changer unit.

Push down the two tray stoppers marked g and pull

out the CD tray.

Align the gear-cam with the gear-tray as shown

fig.27, then mount the CD tray.

When assembling the CD tray, take extreme care not

engage with gear - synchro.

Prior to performing the following procedure, remove

the CD changer unit.

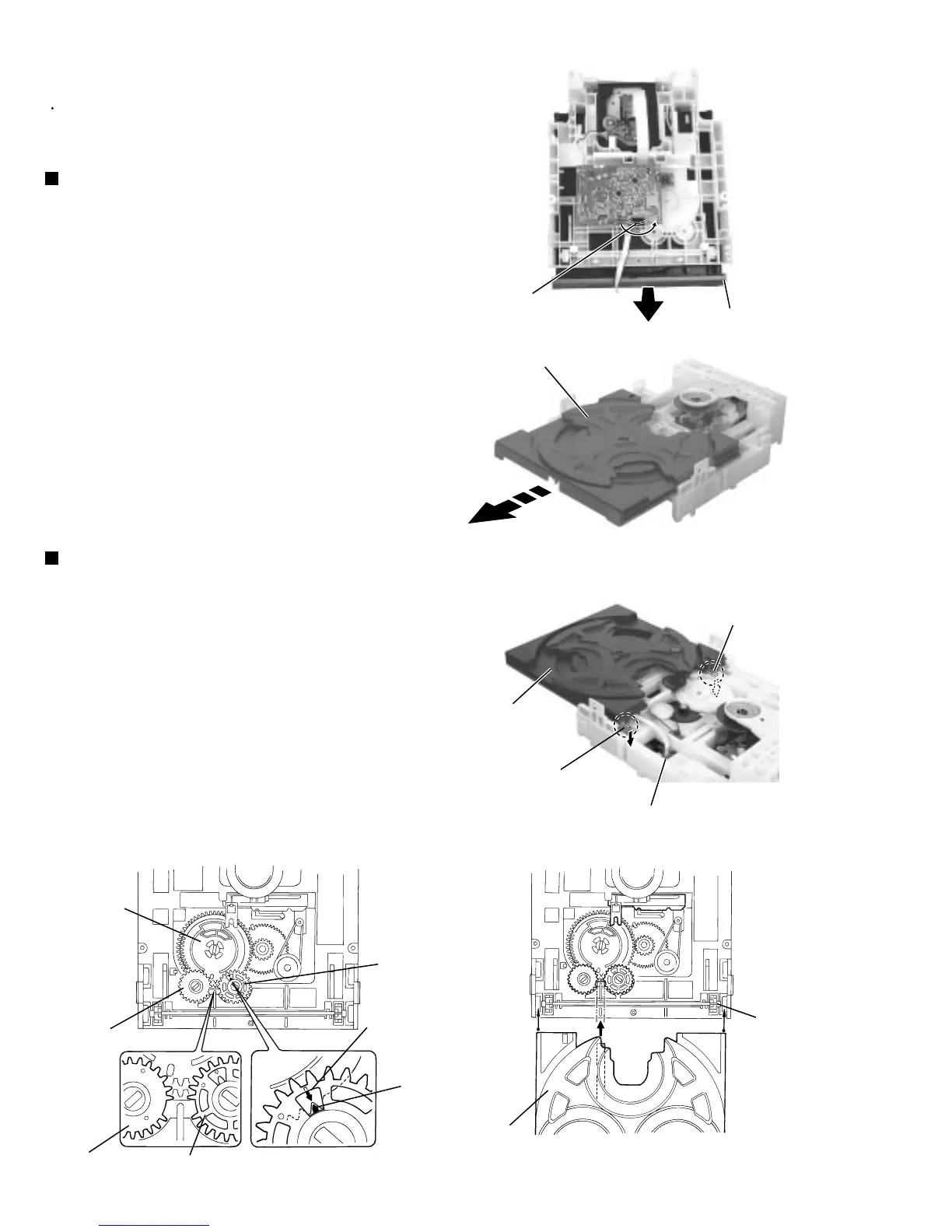

Removing the CD tray (See Fig.25 to 27)

Reinstall the CD tray (See Fig.28 to 29)

Fig.26

Fig.25

Fig.27

Fig.28 Fig.29

Loading pulley gear

CD tray

Gear-convert

Gear-cam

Gear-tray

Gear-synchro

Gear-tray

Gear-cam

timing point

CD tray

CD servo board

CW103

(Tray stopper)

g (Tray stopper)
