MX-G50/MX-G56
1-6
Prior to performing the following procedure, remove
the metal cover.
Press the POWER button. Press the OPEN/CLOSE
button to eject the CD tray.
After drawing the lower part of the tray fitting toward
the front, remove the five claws a. Then, while
moving the tray fitting upward, remove it.
Press the OPEN/CLOSE button to insert the tray.
1.
2.
3.

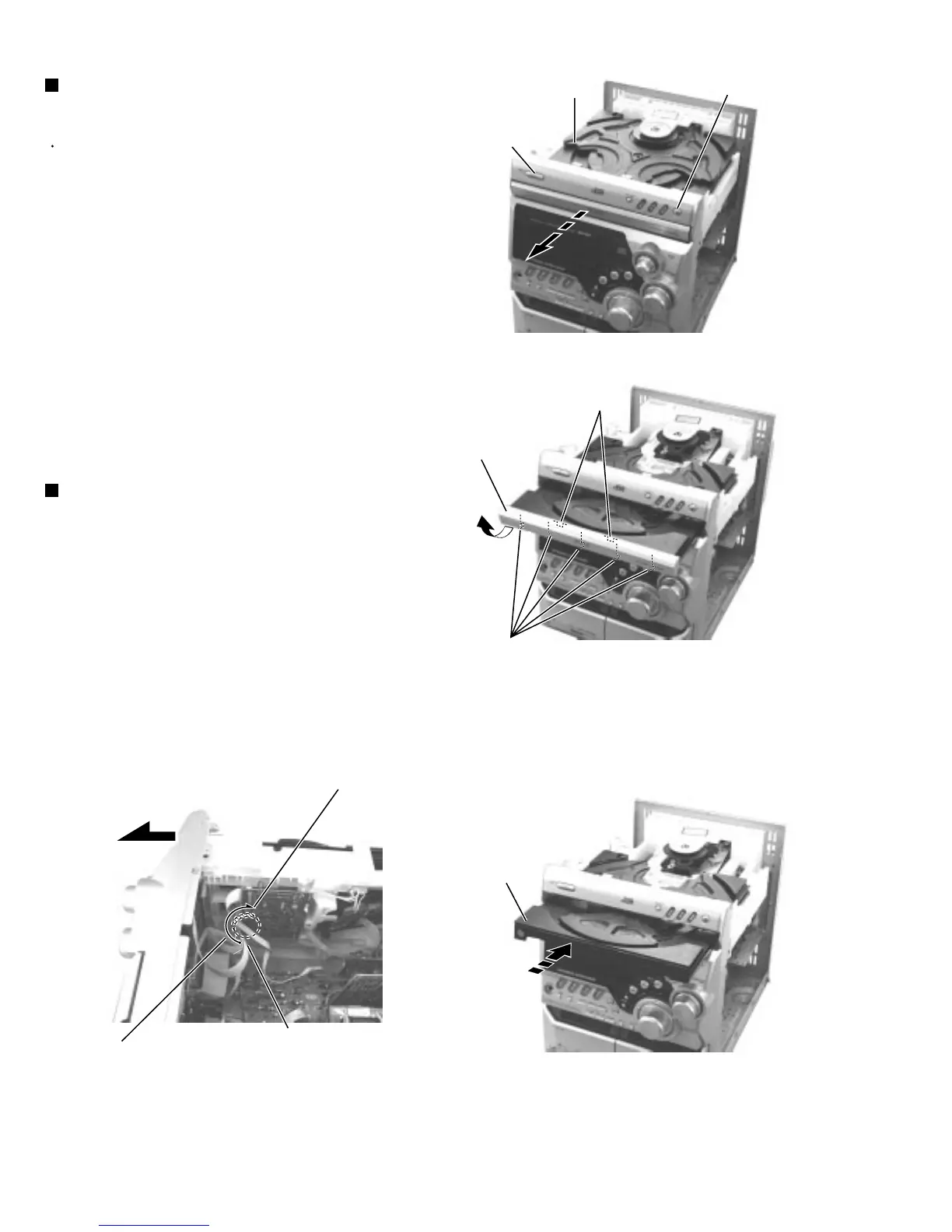

Removing the CD Tray fitting (1)
(See Fig. 4 to 6)
Turn the black loading pulley gear marked b from the
back of the CD changer unit as shown in Fig.7 and
draw the CD tray toward the front.
After drawing the lower part of the tray fitting toward
the front, remove the five claws a. Then, while
moving the tray fitting upward, remove it.
Push and insert the CD tray manually.
1.
2.
3.
Removing the CD Tray fitting (2)
(See Fig. 5 to 7)
- How to eject the CD tray without turning on power -
Fig.4
Fig.5
Fig.6
Fig.7
POWER button
OPEN/CLOSE button
CD tray
Joint
Claw a
CD tray fitting
(See Fig. 24)
CD tray
This slot of the board.
b
(Loading pulley gear)
