1-28 (No.MB160)
3.4.6 Removing the flywheel
(See Figs.7 to 9)
(1) Remove the cut-washer from the capstan shaft.
(2) Remove the flywheel from the back side of the cassette
deck mechanism assembly.
Reference:
When reassembling the flywheel, be sure to use the new
washers as they cannot be reused.

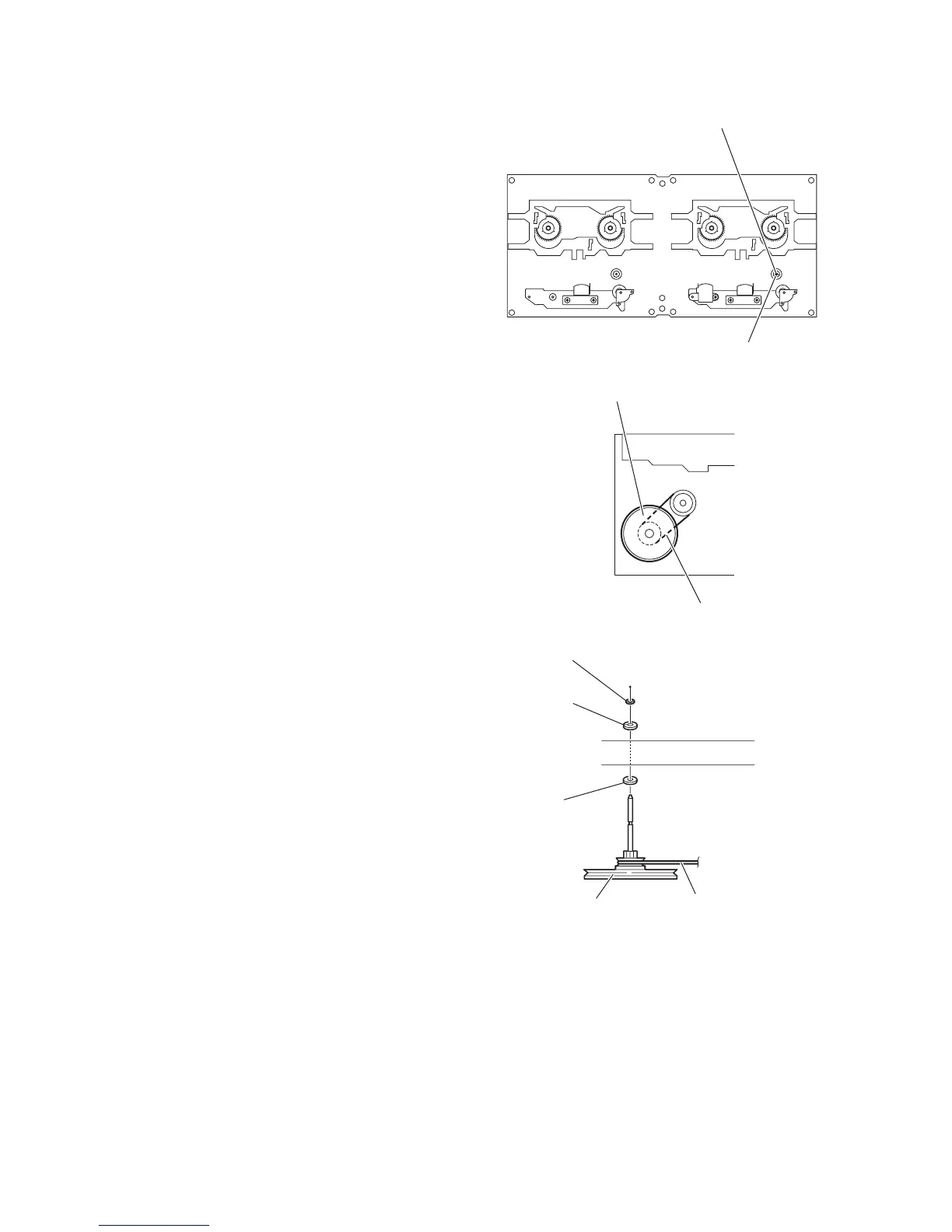

Fig.7
Fig.8
Fig.9
Capstan shaft
Cut-washer
FR belt
Flywheel
Washer
FR belt
Washer
Cassette deck
mechanism assembly
(Back side)
Cut-washer
Cassette deck
mechanism assembly
(Front side)
Flywheel
