1-8 (No.MB160)
SECTION 3
DISASSEMBLY

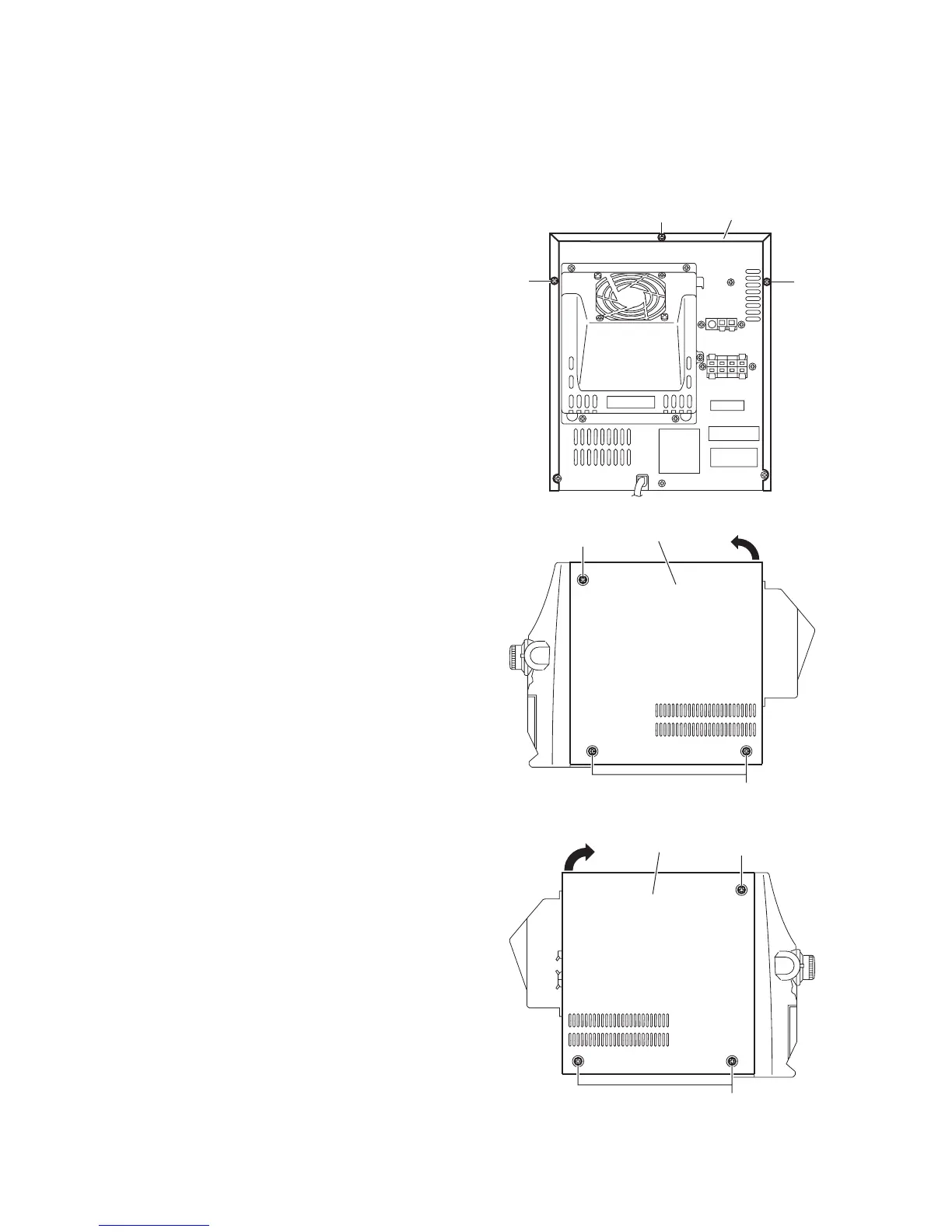

3.1 Main body section
3.1.1 Removing the top cabinet
(See Figs.1 to 3)
(1) From the back side of the main body, remove the three
screws A attaching the top cabinet. (See Fig.1.)
(2) From the both sides of the main body, remove the six
screws B attaching the top cabinet. (See Figs.2 and 3.)
(3) Remove the top cabinet from the main body while lifting the
rear section of the top cabinet in the direction of the arrow.
(See Figs.2 and 3.)
Fig.1
Fig.2
Fig.3
Top cabinet
A
AA
Top cabinet
B
B
Top cabinet
B
B
