3.6 Speaker section [MX-GB6]
3.6.1 Removing the duct
(See Fig.1)
(1) From the top side of the speaker main body, remove the
four screws A attaching the duct.
(2) Remove the duct from the speaker main body in the direc-
tion of the arrow.
(3) Fron the back side of the speaker main body, remove the
two screws B attaching the duct deco.
(4) Remove the duct deco from the speaker main body.

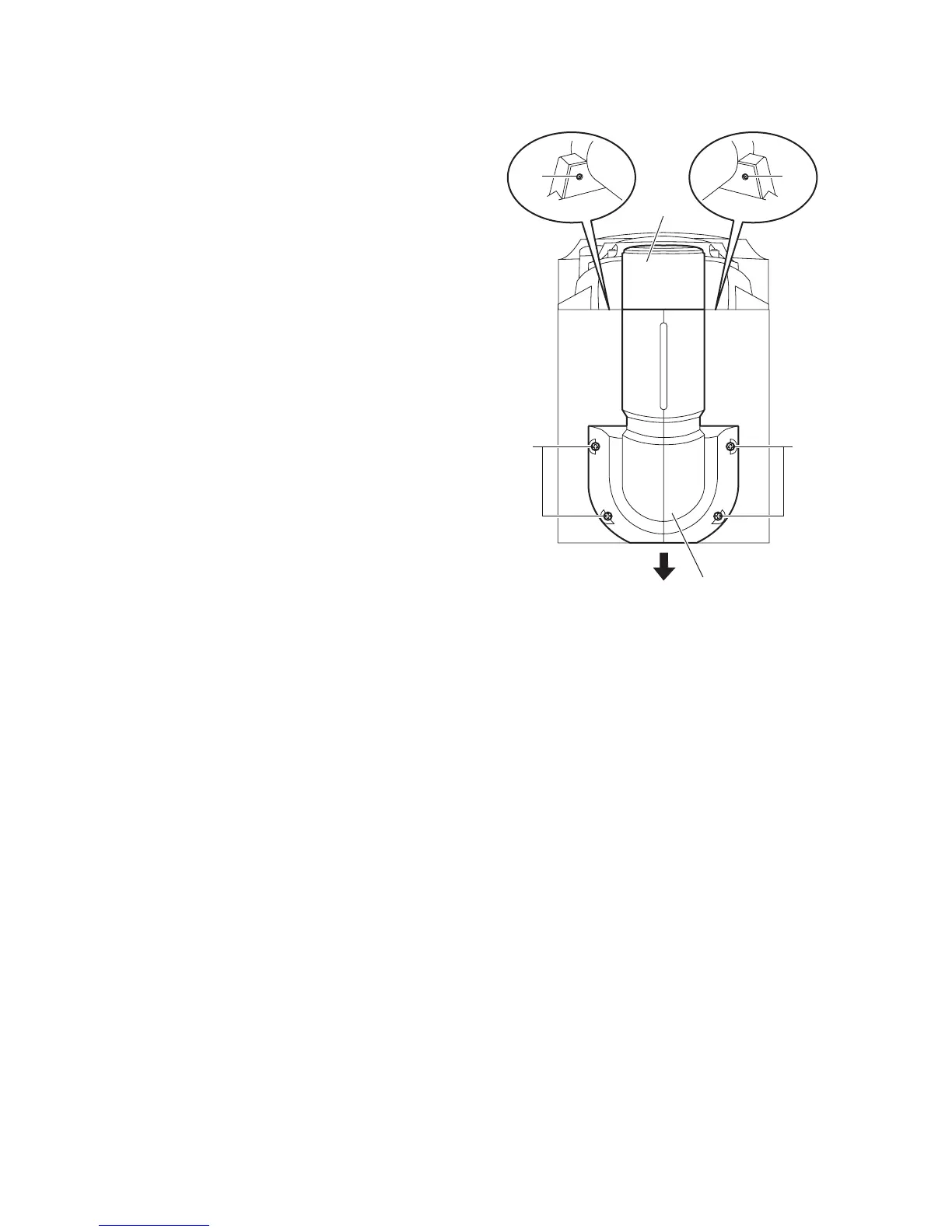

Fig.1
Duct
B
AA
B
Duct deco
