JVC QL-F6 Service Manual

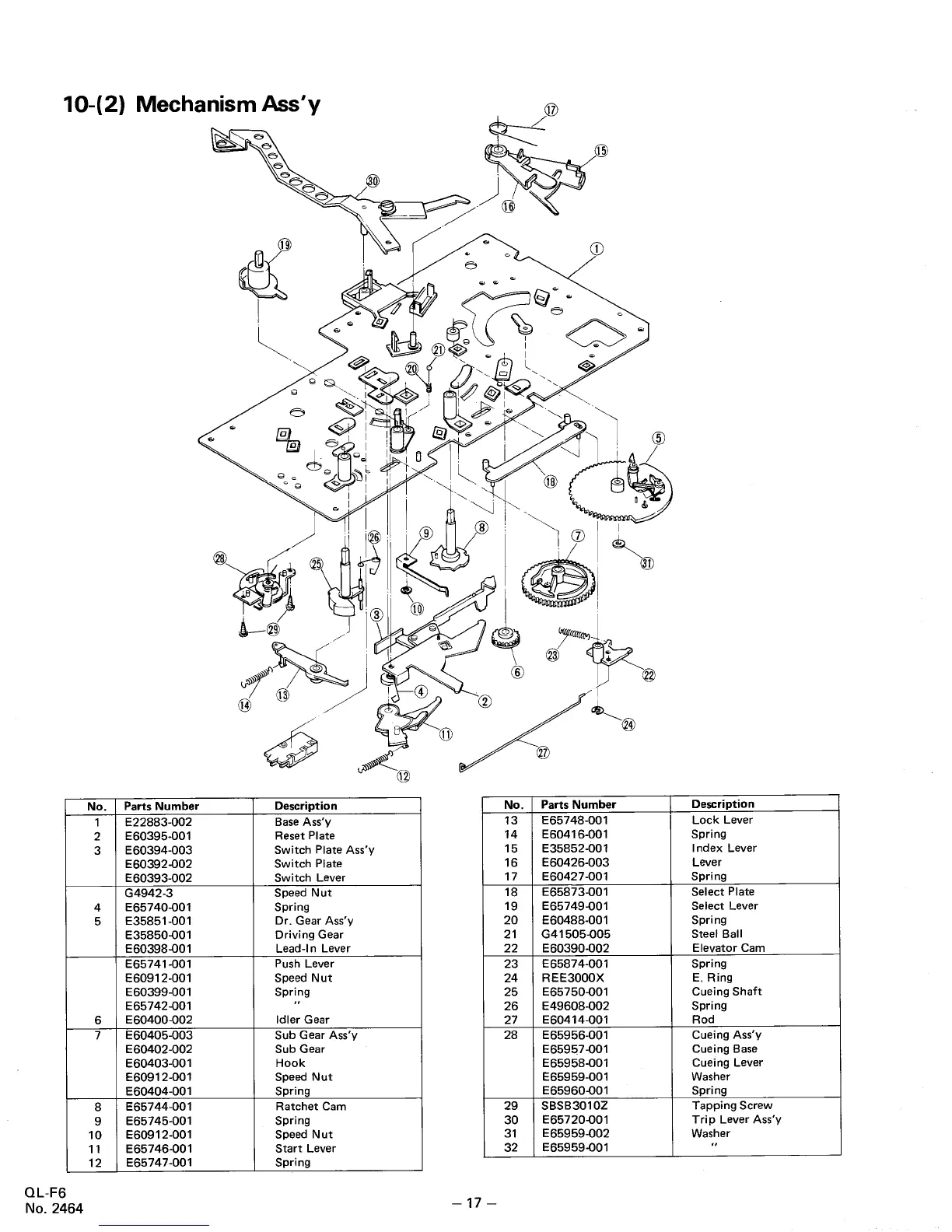

10-(2) Mechanism Ass
C(ID
No.
Parts Number
Description
E22883-002
Base Ass
E60395-001
Reset Plate
E60394-003
Switch Plate Ass
E60392-O02 Switch Plate
E60393-
002
Switch Lever
G4942-
Speed Nut
E65740-O01 Spring
E35851-
001
Dr. Gear Ass
E35850-O01
Driving Gear
E60398-O01 Lead-
I n Lever
E65741-
001
Push Lever
E60912-001 Speed Nut
E60399-
001
Spring
E65742-O01
E60400-O02 Idler Gear
E60405-003 Sub Gear Ass
E60402-
002
Sub Gear
E60403-O01
Hook
E60912-001 Speed Nut
E60404-001 Spring
E65744-O01
Ratchet Cam
E65745-001 Spring
E60912-001 Speed Nut
E65746-O01
Start Lever
E65747-001 Spring
QL-
No. 2464
No.
Parts Number
Description
E65748-
001
Lock Lever
E60416-
001
Spring
E35852-001
Index Lever
E60426-
003
Lever
E60427-001 Spring
E65873-O01
Select Plate
E65749-O01 Select Lever
E60488-001 Spring
G41505-O05
Steel Ball
E60390-002
Elevator Cam
E 65874-
00 1 Spring
REE3000X
E. Ring
E65750-O01 Cueing Shaft
E49608-
002
Spring
E60414-
001
Rod
E65956-
001
Cueing Ass
E65957-O01
Cueing Base
E65958-O01
Cueing Lever
E65959-
001
Washer
E65960-O01
Spring
SBSB3010Z
Tapping Screw
E65720-O01 Trip Lever Ass
E65959-
002 Washer
E65959-O01
17 -
