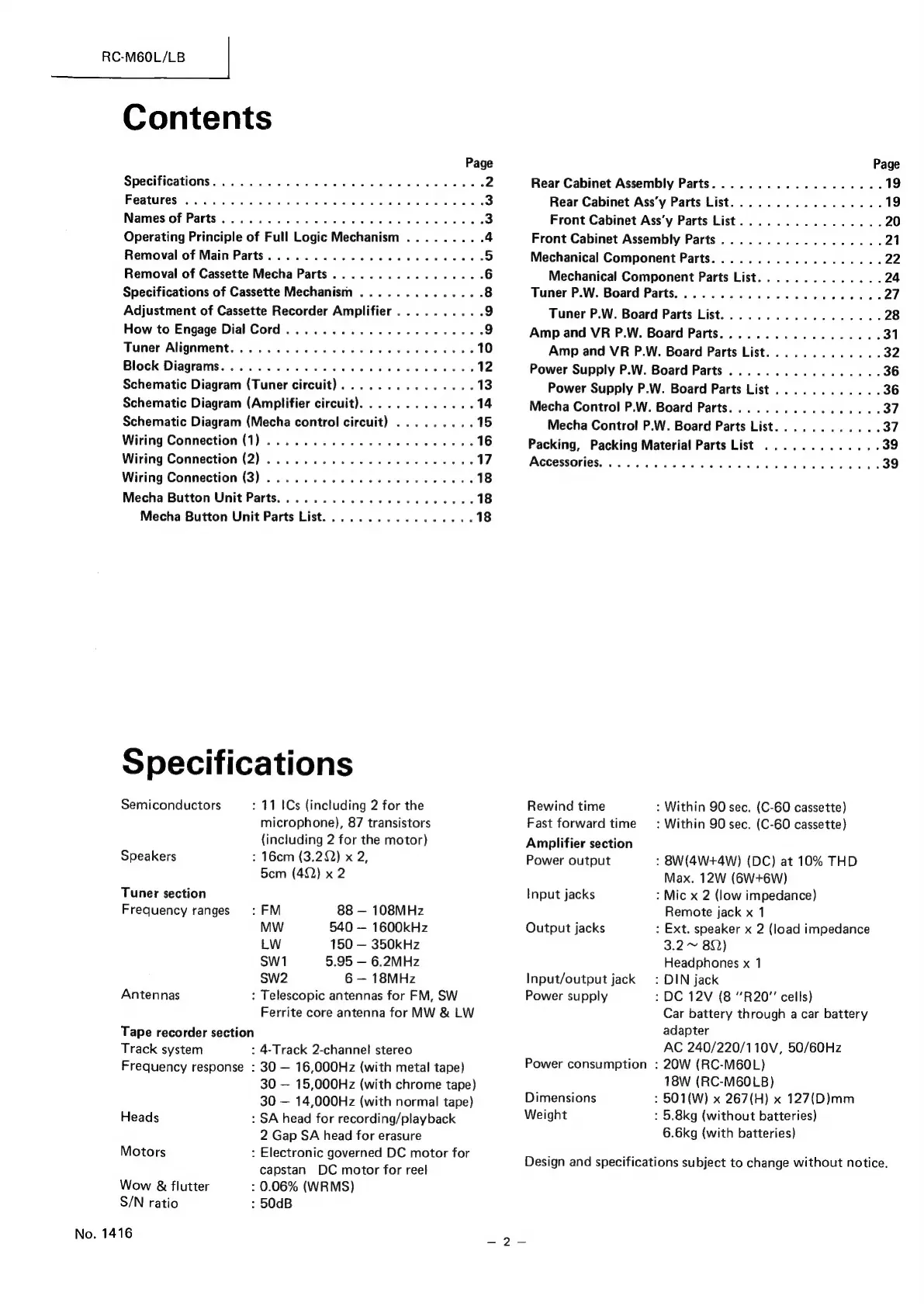

JVC RC-M60L - Table of Contents; Specifications

No. 1416
RC-M60L/LB
Contents
Page
Specifications? a :61.4.0.. says Seow ig eS eas A 2
Features <u. eectcs 2 boise Schade ese Se RD ee oe 3
Names of Parts... 2.0... cee ee eee 3
Operating Principle of Full Logic Mechanism ......... 4
Removal of Main Parts. ............000c cu eeaee 5
Removal of Cassette Mecha Parts...............-. 6
Specifications of Cassette Mechanism .............. 8
Adjustment of Cassette Recorder Amplifier.......... 9
How to Engage Dial Cord... ...........200 000s 9
Tuner Alignment... .......0 0.00 e ee ee eee 10
Block Diagrams... ........ 2.00 ce ue ee eee ene 12
Schematic Diagram (Tuner circuit)............... 13
Schematic Diagram (Amplifier circuit)............. 14
Schematic Diagram (Mecha control circuit) ......... 15
Wiring Connection (1) ..........020 cece eeeeee 16
Wiring Connection (2) ...........20 00 0c eens 17
Wiring Connection (3) .. 2.0.0.0... 0000 eee eee 18
Mecha Button Unit Parts............ 0.0000 e cease 18
Mecha Button Unit Parts List...............0. 18
Specifications
: 11 .1Cs (including 2 for the
microphone), 87 transistors
{including 2 for the motor)
Semiconductors
Speakers : 16cm (3.22) x 2,
5cm (4Q) x 2
Tuner section
Frequency ranges :FM 88 — 108MHz
MW 540 — 1600kHz
LW 150 — 350kHz
SW1 5.95 — 6.2MHz
SWw2 6 — 18MHz
: Telescopic antennas for FM, SW
Ferrite core antenna for MW & LW
Antennas
Tape recorder section
Track system : 4-Track 2-channel stereo
Frequency response : 30 — 16,000Hz (with metal tape)
30 — 15,000Hz (with chrome tape)
30 — 14,000Hz (with normal tape)
Heads : SA head for recording/playback
2 Gap SA head for erasure
Motors : Electronic governed DC motor for
capstan DC motor for reel
Wow & flutter : 0.06% (WRMS)
S/N ratio : 50dB
Page
Rear Cabinet Assembly Parts............0.00006 19
Rear Cabinet Ass’y Parts List.............000. 19
Front Cabinet Ass’y Parts List................ 20
Front Cabinet Assembly Parts.................. 21
Mechanical Component Parts..............0..0. 22
Mechanical Component Parts List.............. 24
Tuner P.W. Board Parts............0. 000 cee uae 27
Tuner P.W. Board Parts List...............-.. 28
Amp and VR P.W. Board Parts...............0,. 31
Amp and VR P.W. Board Parts List............. 32
Power Supply P.W. Board Parts ..............005 36
Power Supply P.W. Board Parts List............ 36
Mecha Control P.W. Board Parts...............0. 37
Mecha Control P.W. Board Parts List............ 37
Packing, Packing Material Parts List ............. 39
Accessories... 2... 0200 eee eee ee eas 39
: Within 90 sec. (C-60 cassette)
: Within 90 sec. (C-60 cassette)
Rewind time
Fast forward time
Amplifier section
Power output : 8W(4W+4W) (DC) at 10% THD
Max. 12W (6W+6W)
: Mic x 2 (low impedance)
Remote jack x 1
: Ext. speaker x 2 (load impedance
3.2 ~~ BQ)
Headphones x 1
: DIN jack
: DC 12V (8 “R20” cells)
Car battery through a car battery
adapter
AC 240/220/110V, 50/60Hz
Power consumption : 20W (RC-M6OL)
18W (RC-M60LB)
: 501(W) x 267(H) x 127(D)mm
: 5.8kg (without batteries)
6.6kg (with batteries)
Input jacks
Output jacks
Input/output jack
Power supply
Dimensions
Weight
Design and specifications subject to change without notice.
