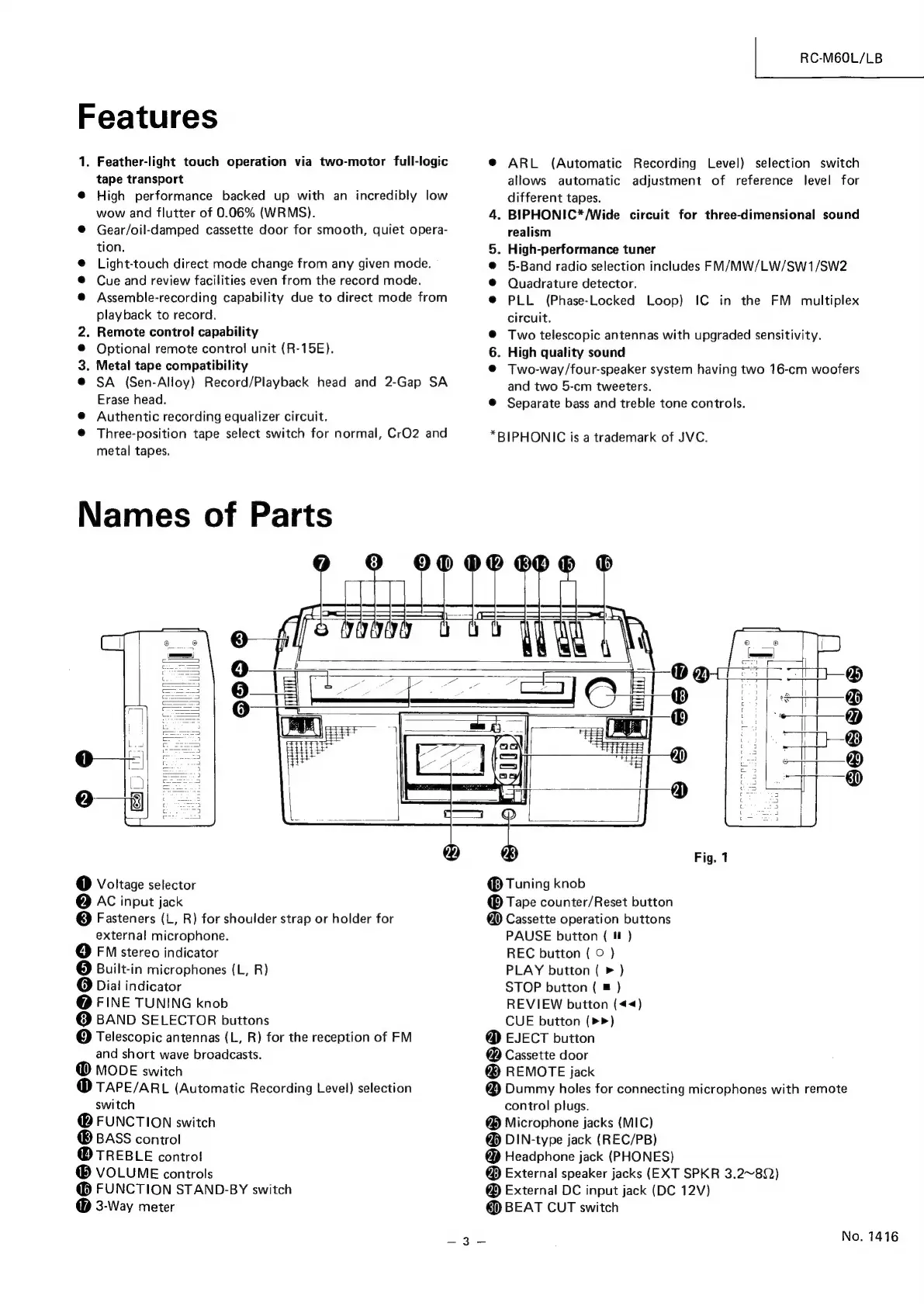

Features
1. Feather-light touch operation via two-motor full-logic
tape transport
®@® High performance backed up with an incredibly low
wow and flutter of 0.06% (WRMS).
® Gear/oil-damped cassette door for smooth, quiet opera-
tion.
®@ Light-touch direct mode change from any given mode.
Cue and review facilities even from the record mode.
Assemble-recording capability due to direct mode from
playback to record.
. Remote control capability
Optional remote control unit (R-15E).
. Metal tape compatibility
SA (Sen-Alloy) Record/Playback head and 2-Gap SA
Erase head.
Authentic recording equalizer circuit.
@ Three-position tape select switch for normal, CrO2 and
metal tapes.
@w en
Names of Parts
RC-M60L/LB
@ ARL (Automatic Recording Level) selection switch
allows automatic adjustment of reference level for
different tapes.
4. BIPHONIC*/Wide circuit for three-dimensional sound
realism
5. High-performance tuner
@ 5-Band radio selection includes FM/MW/LW/SW1/SW2
@ Quadrature detector.
@ PLL (Phase-Locked Loop) IC in the FM multiplex
circuit.
@ Two telescopic antennas with upgraded sensitivity.
6. High quality sound
® Two-way/four-speaker system having two 16-cm woofers
and two 5-cm tweeters.
@ Separate bass and treble tone controls.
*BIPHONIC is a trademark of JVC.
@ Voltage selector
@ AC input jack
(3) Fasteners (L, R) for shoulder strap or holder for
external microphone.
O FM stereo indicator
© Built-in microphones (L, R)
@ Dial indicator
@ FINE TUNING knob
@ BAND SELECTOR buttons
@ Telescopic antennas (L, R) for the reception of FM
and short wave broadcasts.
@ MODE switch
@® TAPE/ARL (Automatic Recording Level) selection
switch
@® FUNCTION switch
@® BASS control
@® TREBLE contro!
® VOLUME controls
@ FUNCTION STAND-BY switch
@® 3-Way meter
® Tuning knob
® Tape counter/Reset button
@) Cassette operation buttons
PAUSE button ( )
REC button ( © }
PLAY button ( > )
STOP button ( = )
REVIEW button (<<)
CUE button (>>)
@ EJECT button
@ Cassette door
@® REMOTE jack
@ Dummy holes for connecting microphones with remote
control plugs.
@ Microphone jacks (MIC)
@ DIN-type jack (REC/PB)
@ Headphone jack (PHONES)
@ External speaker jacks (EXT SPKR 3.2~8Q)
@® External DC input jack (DC 12V)
@) BEAT CUT switch
ae ee No. 1416
