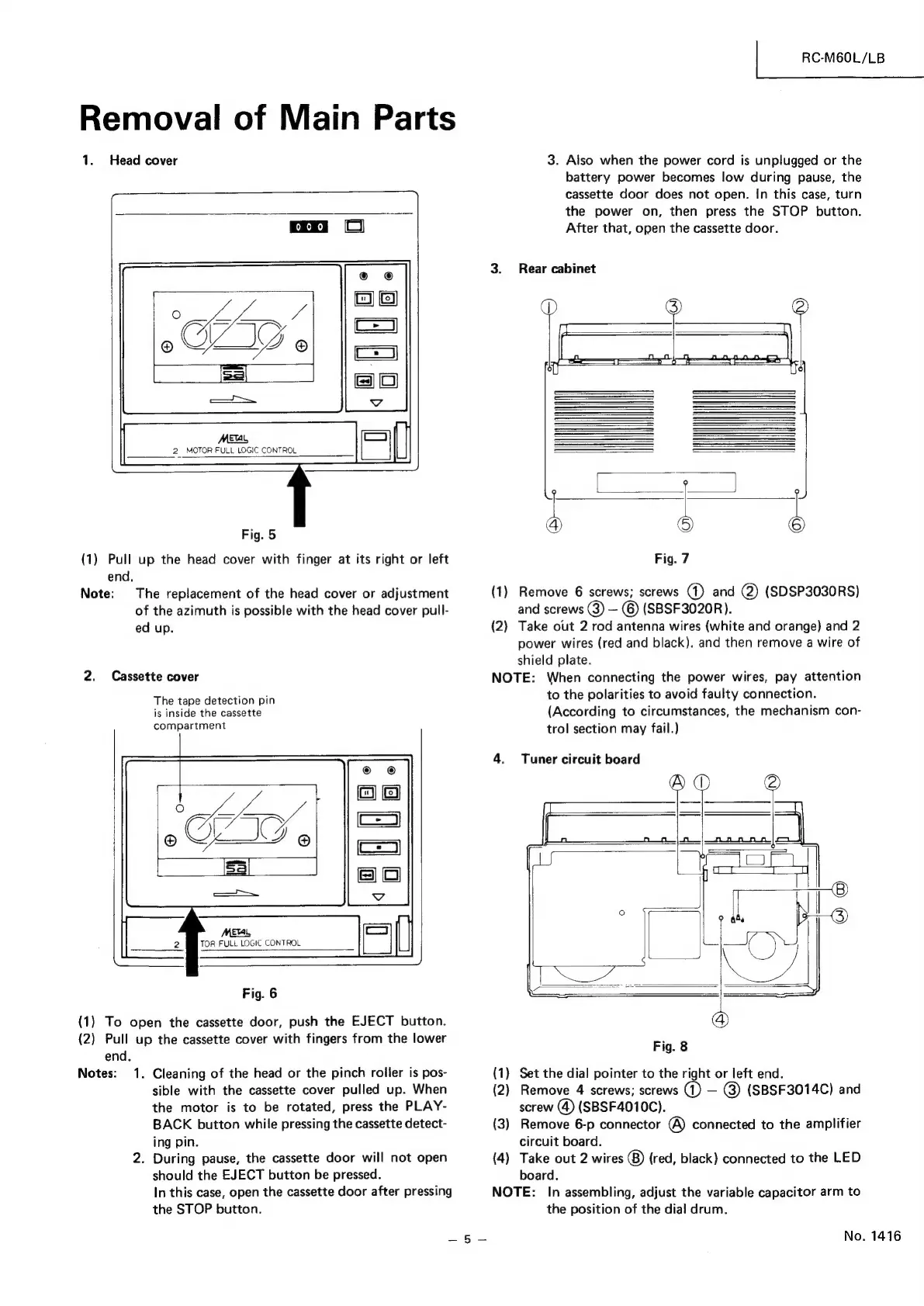

Removal of Main Parts
1. Head cover
ae
Fig. 5
(1) Pull up the head cover with finger at its right or left
end.
Note: The replacement of the head cover or adjustment
of the azimuth is possible with the head cover pull-
ed up.
2. Cassette cover
The tape detection pin
is inside the cassette
compartment
Fig. 6
(1) To open the cassette door, push the EJECT button.
(2) Pull up the cassette cover with fingers from the lower
end.
Notes: 1. Cleaning of the head or the pinch roiler is pos-
sible with the cassette cover pulled up. When
the motor is to be rotated, press the PLAY-
BACK button while pressing the cassette detect-
ing pin.
2. During pause, the cassette door will not open
should the EJECT button be pressed.
In this case, open the cassette door after pressing
the STOP button.
| RC-M60L/LB
3. Also when the power cord is unplugged or the
battery power becomes low during pause, the
cassette door does not open. In this case, turn
the power on, then press the STOP button.
After that, open the cassette door.
3. Rear cabinet
U :
s 66 © ©6¢
Fig. 7
(1) Remove 6 screws; screws (1) and @) (SDSP3030RS)
and screws (3) — ©) (SBSF3020R).
(2) Take out 2 rod antenna wires (white and orange) and 2
power wires (red and black). and then remove a wire of
shield plate.
NOTE: When connecting the power wires, pay attention
to the polarities to avoid faulty connection.
(According to circumstances, the mechanism con-
trol section may fail.)
4. Tuner circuit board
O
tthe
Troll
Sega Ss.
Fig. 8
(1) Set the dial pointer to the right or left end.
(2) Remove 4 screws; screws (1) — @) (SBSF3014C) and
screw (4) (SBSF4010C).
(3) Remove 6-p connector ® connected to the amplifier
circuit board.
(4) Take out 2 wires @&) (red, black) connected to the LED
board.
NOTE: In assembling, adjust the variable capacitor arm to
the position of the dial drum.
