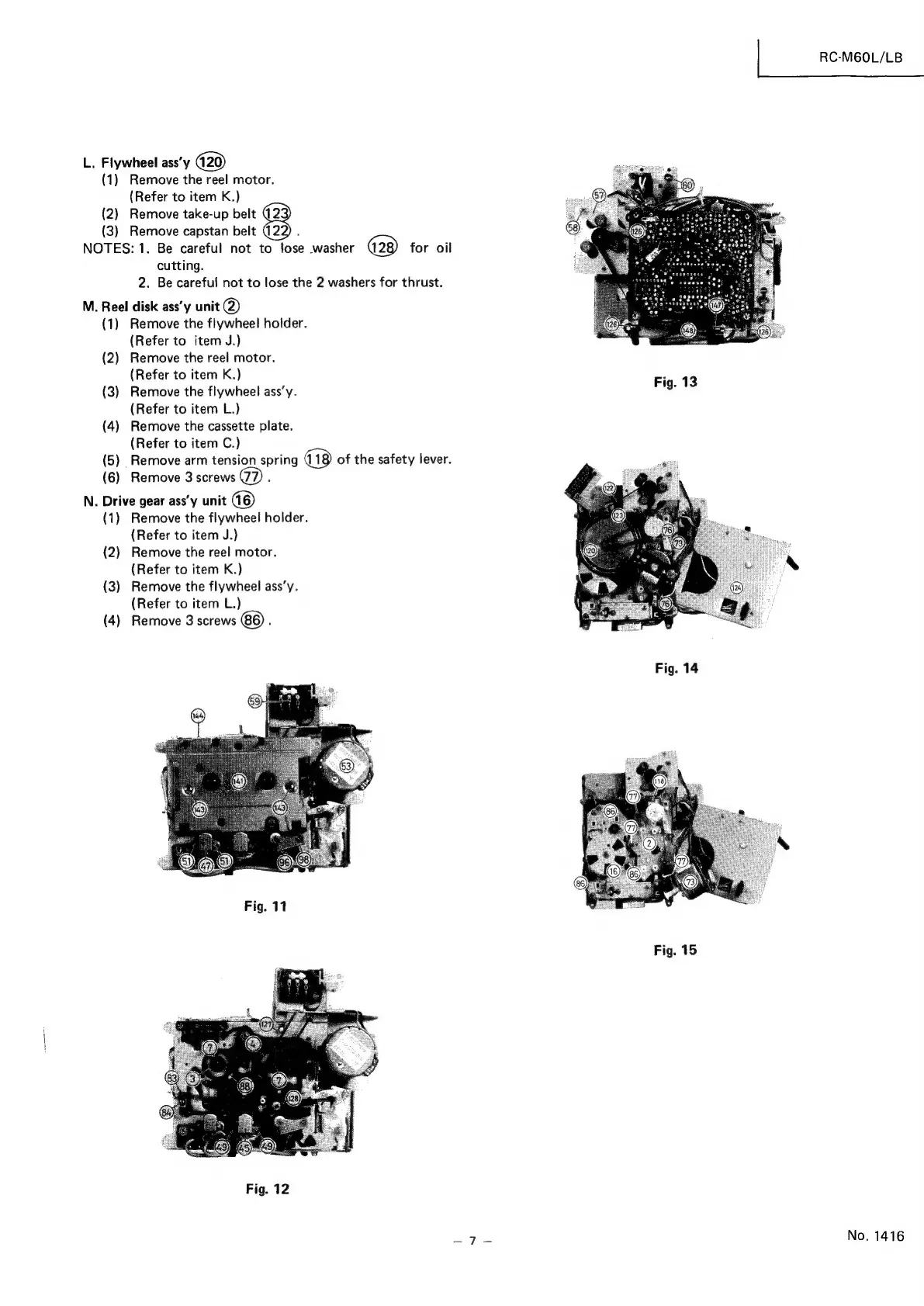

L. Flywheel ass’y
(1)
(2)
(3)
Remove the reel motor.
(Refer to item K.)
Remove take-up belt (23)
Remove capstan belt (22) :
NOTES: 1. Be careful not to lose washer 28) for oil
cutting.
2. Be careful not to lose the 2 washers for thrust.
M. Reel disk ass’y unit 2)
(1)
(2)
(3)
(4)
(5)
(6)
Remove the flywheel holder.
(Refer to item J.)
Remove the reel motor.
(Refer to item K.)
Remove the flywheel ass’y.
(Refer to item L.)
Remove the cassette plate.
(Refer to item C.)
Remove arm tension spring a8 of the safety lever.
Remove 3 screws :
N. Drive gear ass’y unit
(1)
(2)
(3)
(4)
Remove the flywheel holder.
(Refer to item J.)
Remove the reel motor.
(Refer to item K.)
Remove the flywheel ass’y.
(Refer to item L.)
Remove 3 screws .
Fig. 11
Fig. 15
| RC-M60L/LB
No. 1416
