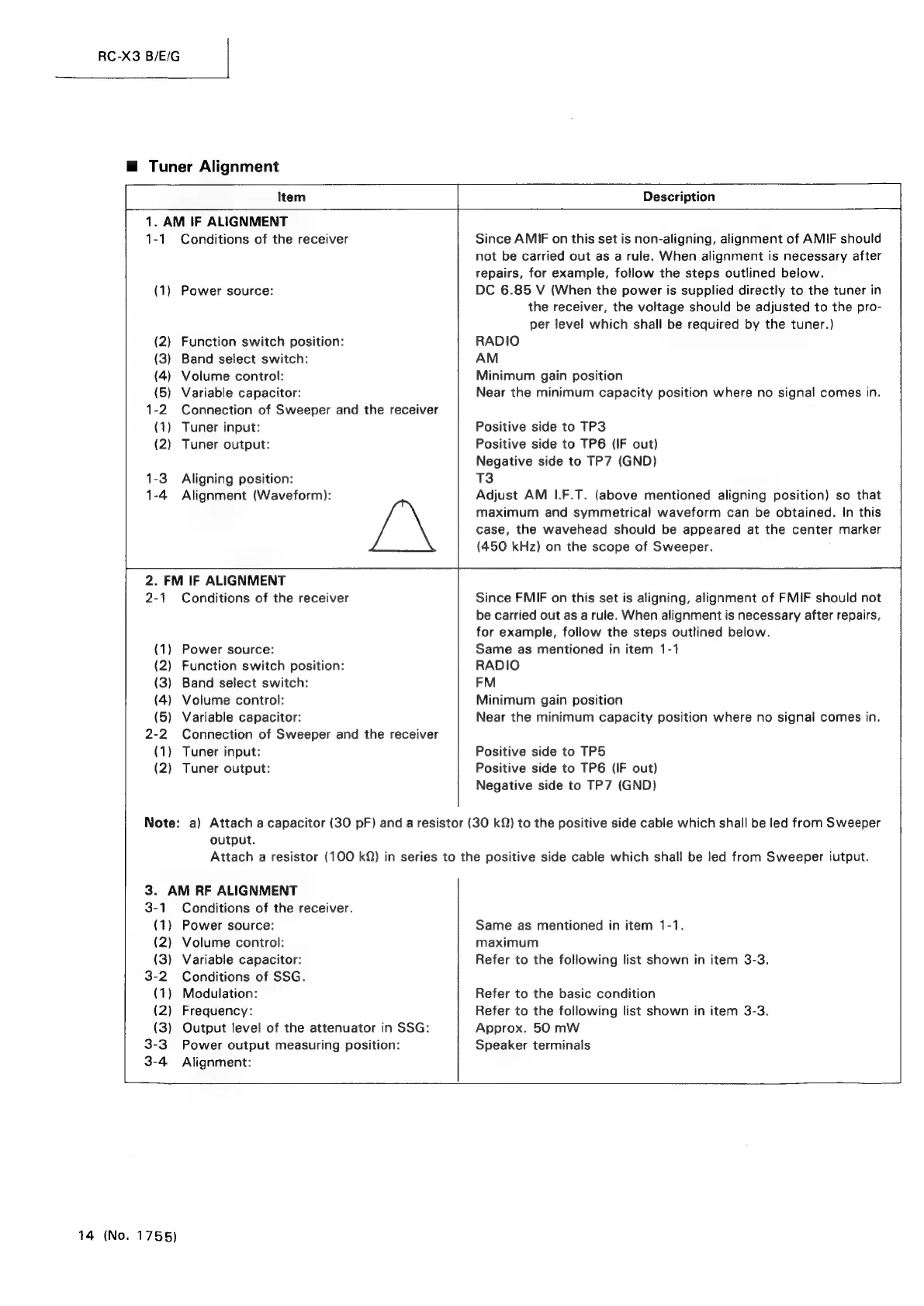

JVC RC-X3 - Page 14

RC-X3 B/E/G
@ Tuner Alignment
Item
Description
1. AM IF ALIGNMENT
1-1
(1)
2-1
(1)
(2)
(3)
(4)
(5)
2-2
(1)
(2)
2. FM IF ALIGNMENT
Conditions of the receiver
Power source:
Function switch position:
Band select switch:
Volume control:
Variable capacitor:
Connection of Sweeper and the receiver
Tuner input:
Tuner output:
Aligning position:
Alignment (Waveform):
Conditions of the receiver
Power source:
Function switch position:
Band select switch:
Volume control:
Variable capacitor:
Connection of Sweeper and the receiver
Tuner input:
Tuner output:
Since AMIF on this set is non-aligning, alignment of AMIF should
not be carried out as a rule. When alignment is necessary after
repairs, for example, follow the steps outlined below.
DC 6.85 V (When the power is supplied directly to the tuner in
the receiver, the voltage should be adjusted to the pro-
per jevel which shall be required by the tuner.)
RADIO
AM
Minimum gain position
Near the minimum capacity position where no signal comes in.
Positive side to TP3
Positive side to TP6 (IF out)
Negative side to TP7 (GND)
T3
Adjust AM I.F.T. (above mentioned aligning position) so that
maximum and symmetrical waveform can be obtained. In this
case, the wavehead should be appeared at the center marker
(450 kHz) on the scope of Sweeper.
Since FMIF on this set is aligning, alignment of FMIF should not
be carried out as a rule. When alignment is necessary after repairs,
for example, follow the steps outlined below.
Same as mentioned in item 1-1
RADIO
FM
Minimum gain position
Near the minimum capacity position where no signal comes in.
Positive side to TP5
Positive side to TP6 (IF out)
Negative side to TP7 (GND)
Note: a) Attach a capacitor (30 pF) and a resistor (30 kQ) to the positive side cable which shall be led from Sweeper
3-1
(1)
(2)
(3)
3-2
(1)
(2)
(3)
3-3
3-4
output.
Attach a resistor (100 kQ) in series to the positive side cable which shall be led from Sweeper iutput.
3. AM RF ALIGNMENT
Conditions of the receiver.
Power source:
Volume control:
Variable capacitor:
Conditions of SSG.
Modulation:
Frequency:
Output level of the attenuator in SSG:
Power output measuring position:
Alignment:
Same as mentioned in item 1-1.
maximum
Refer to the following list shown in item 3-3.
Refer to the basic condition
Refer to the following list shown in item 3-3.
Approx. 50 mW
Speaker terminals
14 (No. 1755)
