| RC-X3 B/E/G

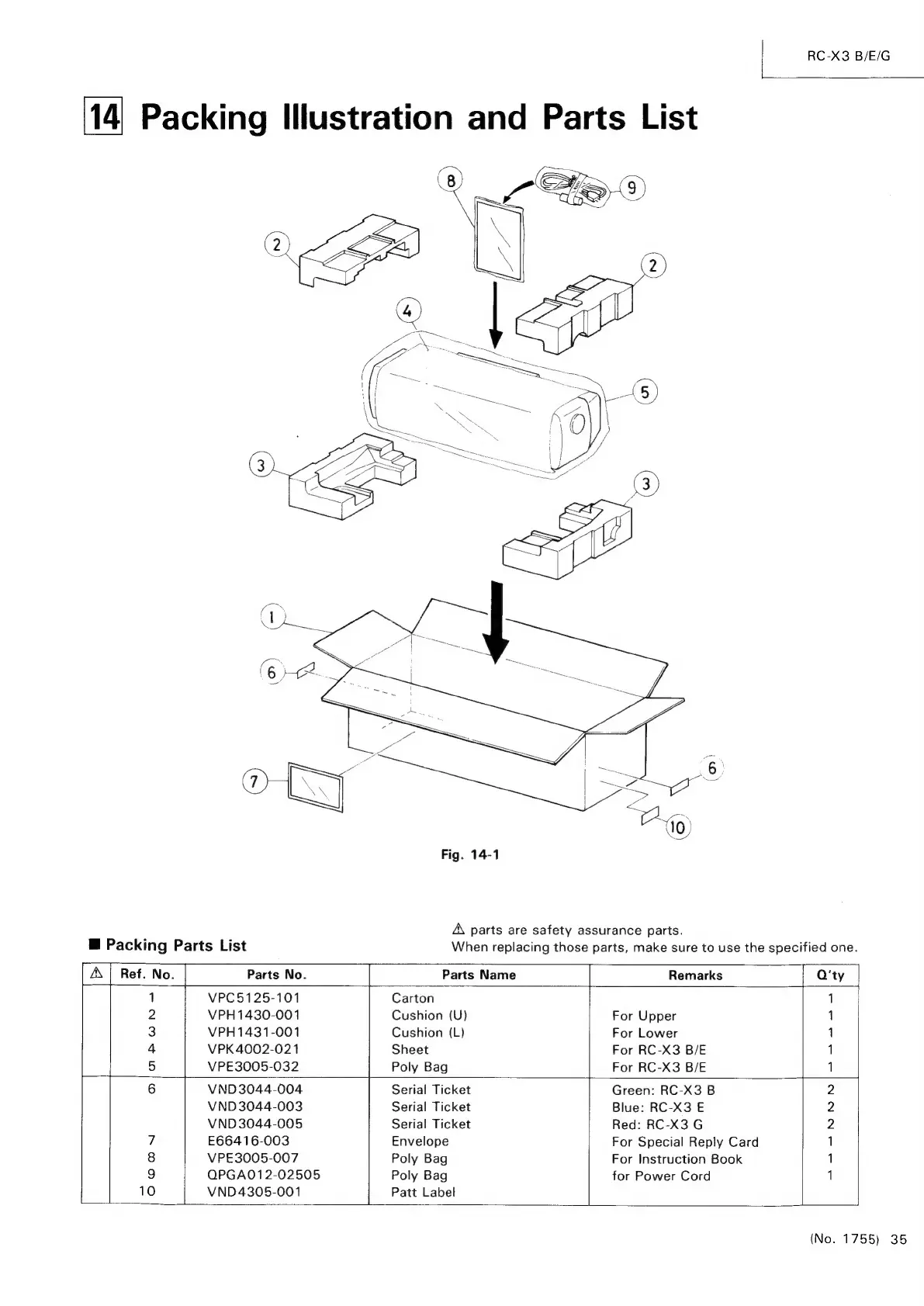

Packing Illustration and Parts List
Fig. 14-1
A parts are safety assurance parts.
B Packing Parts List When replacing those parts, make sure to use the specified one.
A | Ref. No. Parts No. Parts Name Remarks | Q'ty
T
1 VPC5125-101 Carton 1
2 VPH1430-001 Cushion (U) For Upper 1
3 VPH1431-001 Cushion (L) For Lower 1
4 VPK 4002-021 Sheet For RC-X3 B/E 1
5 VPE3005-032 Poly Bag For RC-X3 B/E 1
6 VND3044-004 Serial Ticket Green: RC-X3 B 2
VND3044-003 Serial Ticket Blue: RC-X3 E 2
VND3044-005 Serial Ticket Red: RC-X3G 2
7 E66416-003 Envelope For Special Reply Card 1
8 VPE3005-007 Poly Bag For Instruction Book 1
9 OPGA012-02505 Poly Bag for Power Cord 1
10 VND4305-001 Patt Label
(No. 1755) 35
